Stage 2Factory
Hyundai Veloster 1.6T
Tuned · 15 Sept 22
Bay 02 · Mainline AWD
Bay 02 · Mainline AWD

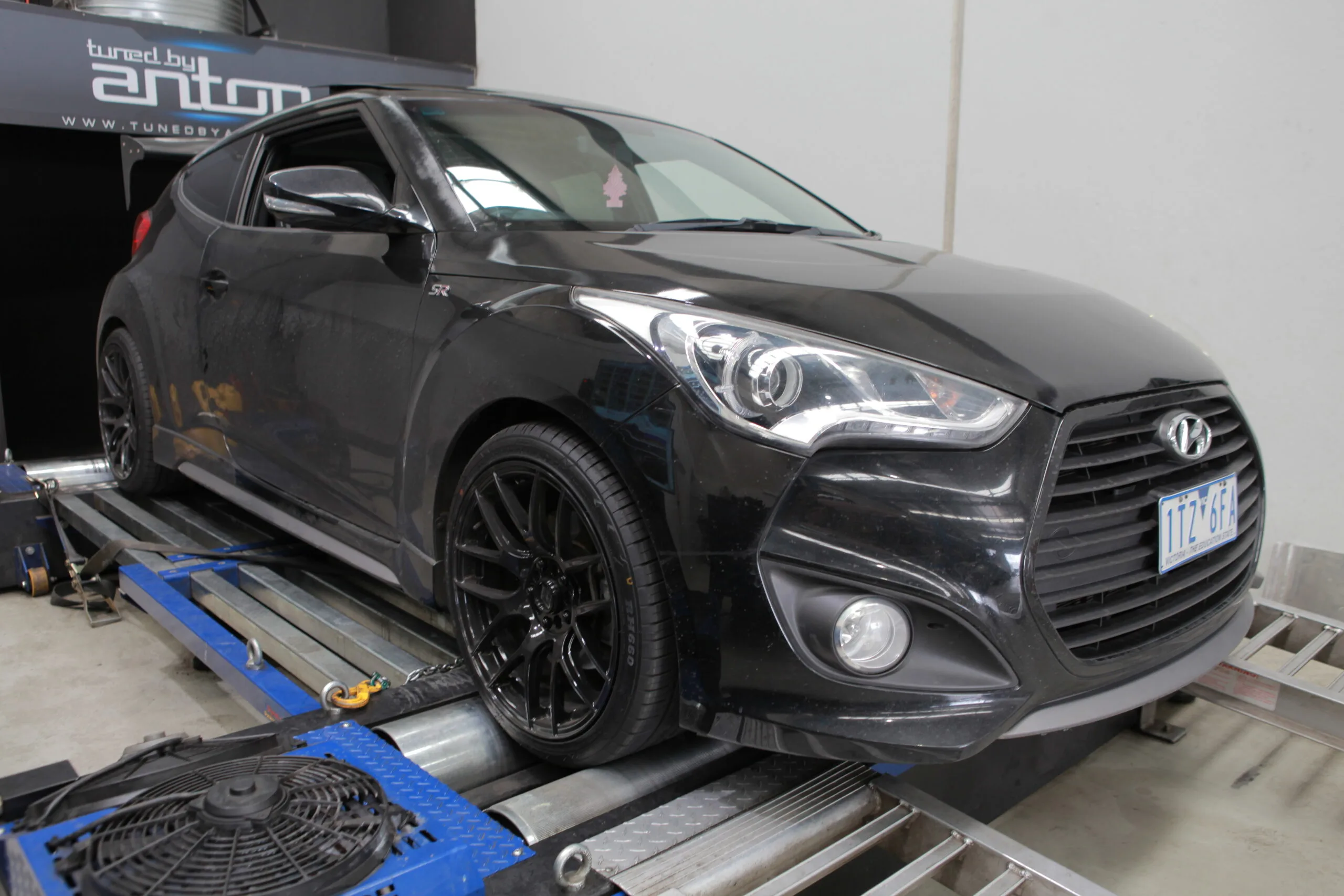

[ On the dyno ]
[ Dyno screen ]
Vehicle details
Spec sheet.
MakeHyundai
ModelVeloster
EngineG4FD
Fuel98 RON
ECUFactory
Drivetrain2WD
Notes from the tuner
What we did.
1.6T Veloster now producing +40% peak torque. The vehicle drove in with a downpipe readily installed.
Some information for Veloster owners; these models require frequent oil changes as they are prone to engine carbon/sludge accumulation which is commonly known to accelerate issues with these G4FD engines such as timing chain failure, premature turbocharger failure & crank/rod bearing failure.
#hyundai #veloster #tunedbyanton
Anton Krstic · Lead tuner · Bay 02
This Hyundai Veloster was tuned on our Mainline AWD dyno. All results here come from dyno tuning in Melbourne at our Epping workshop.
Stage 2 tune
Power & torque · stock vs tuned.
Power
Stock
90kW
→
Tuned
109kW
+19 kW (25 hp) at the hubs+21%
Torque
Stock
201Nm
→
Tuned
288Nm
+87 Nm (64 lb·ft) at the hubs+43%

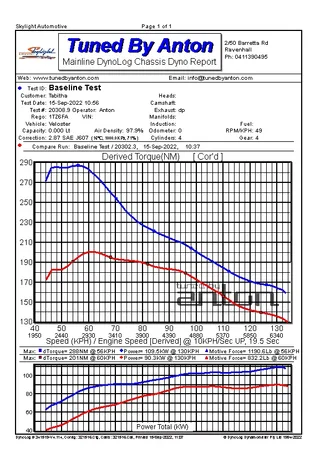

⌁Dyno graph · Pull recorded on the Mainline AWD
Hardware
Modifications.
1 category · Stage 2 build
- ·Down Pipe
Calibration
ECU improvements.
Factory
- ·Improved Power
- ·Improved Torque
- ·Increased Throttle Response
