Audi A6 Allroad Stage 2 Tune
Tuned · 30 July 25
Bay 02 · Mainline AWD
Bay 02 · Mainline AWD

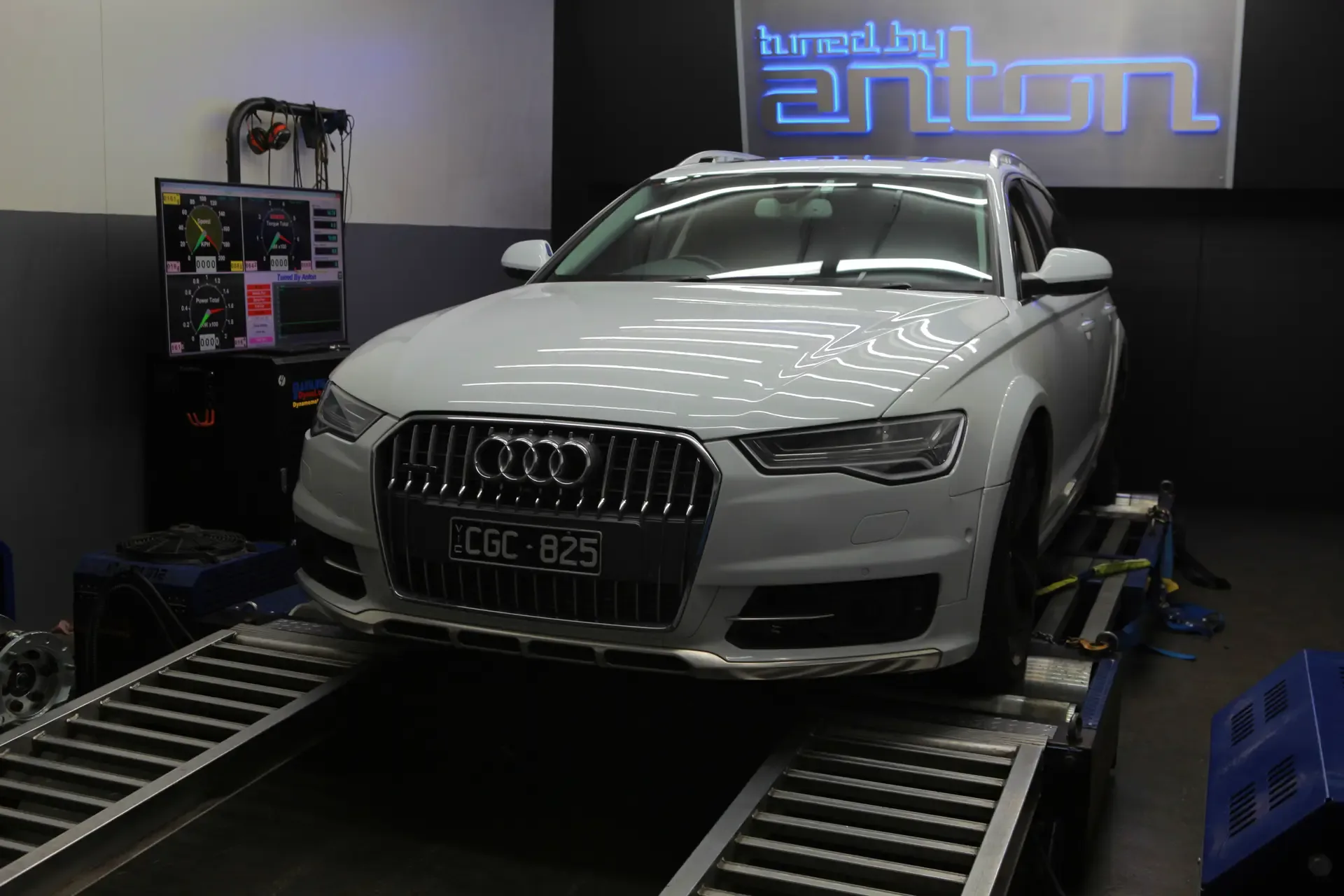

[ On the dyno ]
[ Engine bay ]
ENGINE
[ Dyno screen ]
— Vehicle details
Spec sheet.
ModelA6
Yearbdc54lhqndh4kmlnjawh9cqc
FuelDiesel
ECUFactory
Drivetrain4WD
— Notes from the tuner
What we did.
This 2016 Audi A6 was upgraded with an aftermarket intercooler and downpipe, followed by a custom ECU/TCU calibration. The setup delivered 160 kW at the wheels with an average increase of 50 Nm of torque across the entire rev range, resulting in improved response and stronger mid‑range performance.
Anton Krstic · Lead tuner · Bay 02
— Stage 2 tune
Power & torque · stock vs tuned.
— Power
Stock
127kW
→
Tuned
161kW
+34 kW (46 hp) at the hubs+27%
— Torque
Stock
420Nm
→
Tuned
472Nm
+52 Nm (38 lb·ft) at the hubs+12%

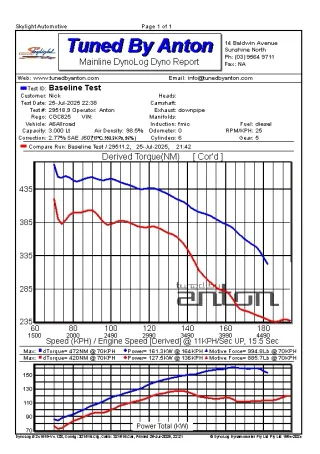

⌁Dyno graph · Pull recorded on the Mainline AWD
— Hardware
Modifications.
2 categories · Stage 2 build
- ·Down Pipe
- ·Intercooler
— Calibration
ECU improvements.
Factory
- ·Improved Fuel Efficiency
- ·Improved Power
- ·Improved Torque
- ·Increased Clutch Line Pressure
- ·Optimized Shifts
- ·Increased Clutch Torque Limits
