Stage 2Factory

Audi S3 Stage 2

Tuned · 14 July 23
Bay 02 · Mainline AWD

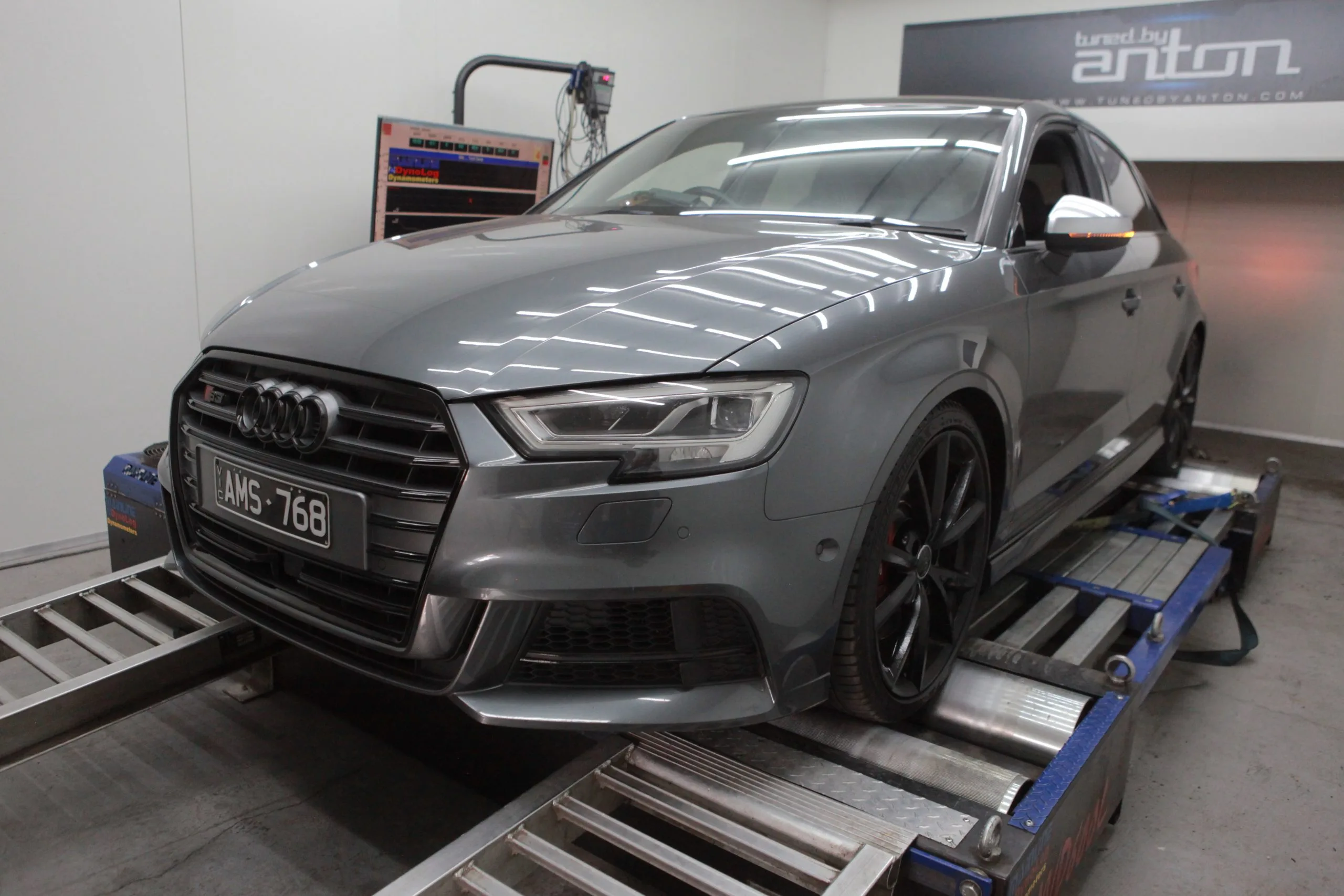

[ On the dyno ]Audi S3 Stage 2 — On the dyno
[ Engine bay ]
EA888

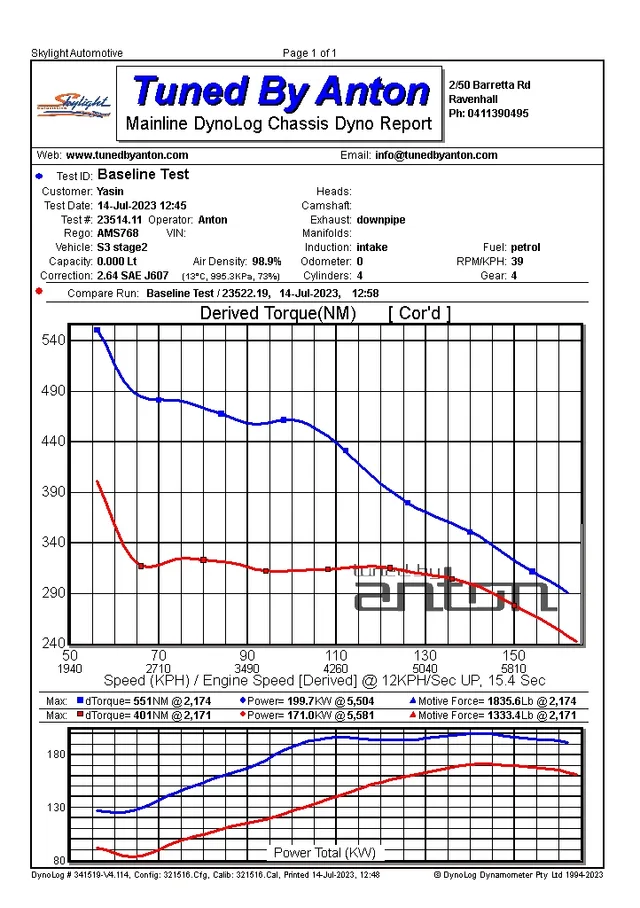

[ Dyno screen ]Audi S3 Stage 2 — Dyno screen
— Vehicle details

Spec sheet.

Series8V
Yeargrotdr4ce867np0vgus0xobu
EngineEA888
Fuel98 RON
ECUFactory
Drivetrain4WD
— Notes from the tuner

What we did.

Audi S3 has been scheduled for an advanced stage 2 engine and transmission calibration, reflecting a refined and sophisticated approach. The vehicle has been equipped with enhancements to its intake and downpipe, resulting in a substantial boost in torque, surging from 401 to an impressive 551 Nm, while power has been elevated from 171 to 199 kW. The boost curve has been meticulously tuned to target a formidable 1.8 bar, gradually tapering down to a balanced 1 bar.

Among the notable advantages offered by this upgrade, we find the integration of brake boosting, thermal enhancements, and impulse ignition, meticulously engineered to enhance the responsiveness and precision of the sports mode. The transmission shifting has been optimized to deliver sharper and more precise gear changes. The clutch packs have been intensified, ensuring increased pressure and a tighter grip, while the torque limits have been precisely calibrated to harmonize with the engine's torque output. As a remarkable feat, the launch control now generates an immense surge of torque, unleashing tremendous power from the very moment the vehicle accelerates off the line.

To make a booking for a custom remap on your Volkswagen Audi, please visit the website https://tunedbyanton.com/book-your-tune/

#winols #ecu #tcu #customtuning # stage2 #audi #s3 #volkswagen #golf #ea888 #dq381 #vagtuning #audituning #volkswagentuning #melbourne #tunedbyanton

Anton Krstic · Lead tuner · Bay 02
Stage 2 tune

Power & torque · stock vs tuned.

Hubs · SAE J1349 · Median of 3 pulls
Power
Stock
171kW
Tuned
199kW
+28 kW (38 hp) at the hubs+16%
Torque
Stock
401Nm
Tuned
551Nm
+150 Nm (111 lb·ft) at the hubs+37%
— Hardware

Modifications.

2 categories · Stage 2 build
  • ·Intake
  • ·Down Pipe
— Calibration

ECU improvements.

Factory
  • ·Improved Power
  • ·Improved Torque
  • ·Increased Throttle Response
  • ·Disable Brake Intervention
  • ·Exhaust Burbles/Pops
  • ·Launch Control
  • ·Increased Clutch Line Pressure
  • ·Optimized Shifts
  • ·Increased Clutch Torque Limits
  • ·Imrpoved Gearshift Torque Reduction
  • ·Disabled Auto Start/Stop
  • ·Disabled Motor Sound
  • ·Improved Thermal Dynamics
  • ·Linearised Accelerator
