Stage 3Factory
BMW 120i N54
Tuned · 25 Mar 22
Bay 02 · Mainline AWD
Bay 02 · Mainline AWD

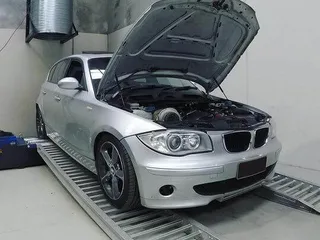

[ On the dyno ]
[ Engine bay ]
N54
[ Dyno screen ]
— Vehicle details
Spec sheet.
SeriesE87
Yearexx7bl0v57do6sdntbctqs4r
EngineN54
FuelE85
ECUFactory
Drivetrain2WD
— Notes from the tuner
What we did.
This N54 DCT converted hatch we tuned in 2017, at this stage the N54 platform did not have a solution to this issue which left us no other alternative except to pioneer.
Some of the challenges we faced with this vehicle were the 27psi boost limitation in the firmware. When we exceed 500rwkw/32psi we found blowby and oil burn in cylinders which caused misfire events. Further investigation proved the open deck bores were not upto task.
Engine components were strengthened with CP Carrillo rods & CP pistons with ARP stud kit. The transmission contained SSP clutch upgrade.
Anton Krstic · Lead tuner · Bay 02
— Stage 3 tune
Power & torque · stock vs tuned.
— Power
Stock
170kW
→
Tuned
436kW
+266 kW (357 hp) at the hubs+156%
— Torque
Stock
523Nm
→
Tuned
1,105Nm
+582 Nm (429 lb·ft) at the hubs+111%

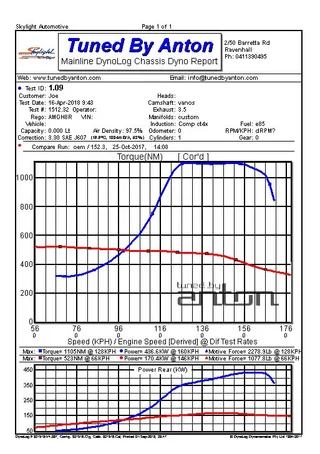

⌁Dyno graph · Pull recorded on the Mainline AWD
— Hardware
Modifications.
9 categories · Stage 3 build
- ·Intake
- ·Exhaust
- ·Down Pipe
- ·Intercooler
- ·Fuel System Upgrade
- ·Ignition Upgrade
- ·Engine Components
- ·Transmission Components
- ·Turbocharger
— Calibration
ECU improvements.
Factory
- ·Increased Engine Response
- ·Improved Power
- ·Improved Torque
- ·Increased Throttle Response
- ·Increased Clutch Line Pressure
