Stage 2Factory
BMW 540i Stage 2
Tuned · 07 Dec 23
Bay 02 · Mainline AWD
Bay 02 · Mainline AWD

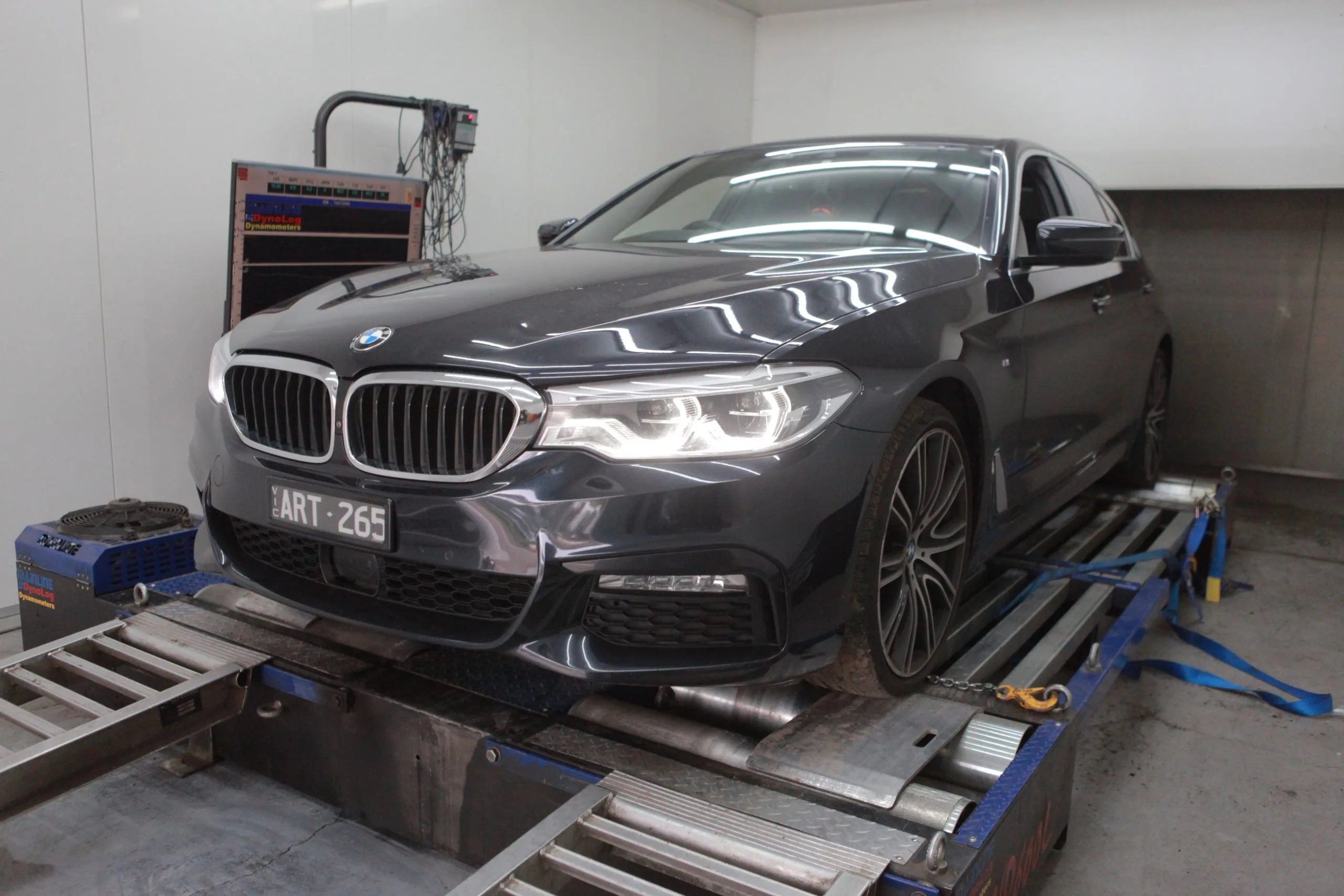

[ On the dyno ]
[ Dyno screen ]
Notes from the tuner
What we did.
The BMW 540i now boasts a remarkable 30% increase in torque, thanks to enhancements such as the VRSF catted downpipe. Its tuning facilitated thanks to BM3, incorporates burbles and allows for map switching using cruise control.
#bm3 #b58 #tunedbyanton
Anton Krstic · Lead tuner · Bay 02
This BMW 540i G30 was tuned on our Mainline AWD dyno. All results here come from dyno tuning in Melbourne at our Epping workshop.
Stage 2 tune
Power & torque · stock vs tuned.
Power
Stock
224kW
→
Tuned
273kW
+49 kW (66 hp) at the hubs+22%
Torque
Stock
434Nm
→
Tuned
569Nm
+135 Nm (100 lb·ft) at the hubs+31%

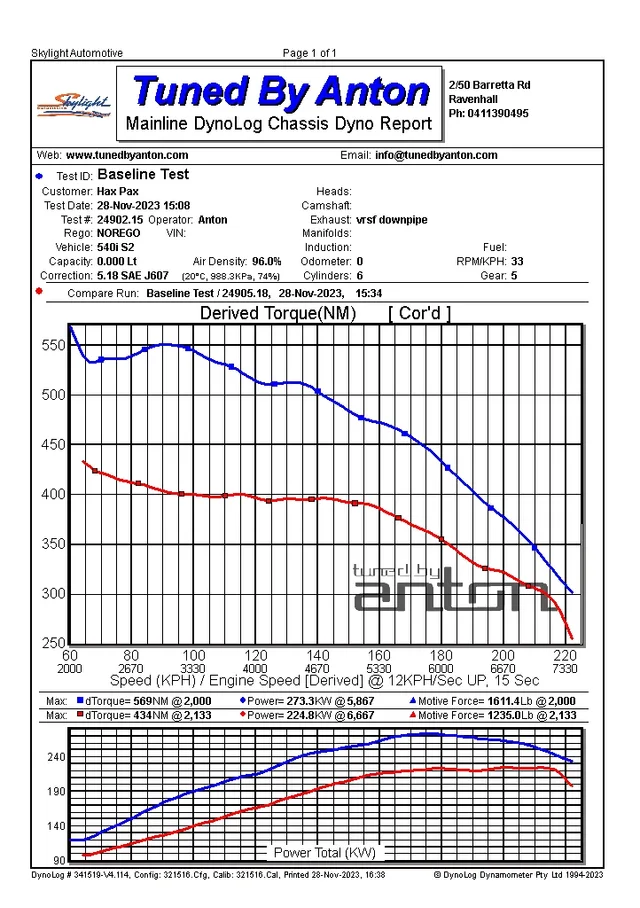

⌁Dyno graph · Pull recorded on the Mainline AWD
Hardware
Modifications.
1 category · Stage 2 build
- ·Down Pipe
Calibration
ECU improvements.
Factory
- ·Improved Fuel Efficiency
- ·Improved Power
- ·Improved Torque
- ·Exhaust Burbles/Pops
