Stage 3Maxxecu
BMW E30 M30 G30-900 DCT
Tuned · 26 Apr 22
Bay 02 · Mainline AWD
Bay 02 · Mainline AWD

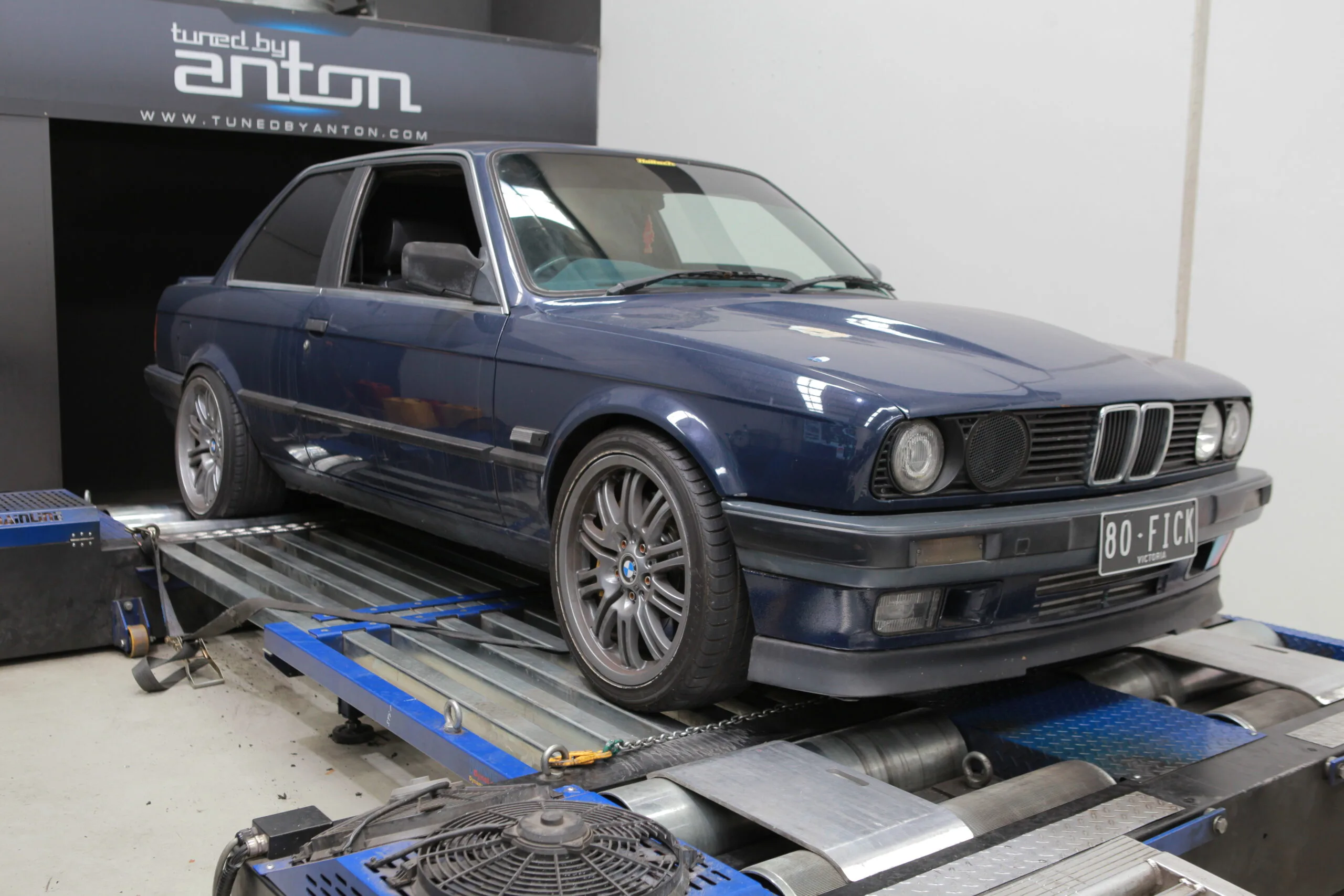

[ On the dyno ]
[ Engine bay ]
M30
[ Dyno screen ]
— Vehicle details
Spec sheet.
ModelE30
Yearcoharvi264bsb6mlcw2i2zqc
EngineM30
FuelE85
ECUMaxxecu
Drivetrain2WD
— Notes from the tuner
What we did.
BMW E30 converted to the M30 engine. Behind the 3.5lt 6cyl the GS7D36SG is the dct transmission. The conversion required cnc bellhousing adaptors and single mass flywheels as well as a complete rewire of engine and transmission.
The exhaust manifold is custom made to a low mount fitted with a Garret G35-900 turbocharger with a relative boost target of 1bar. The choice management resulted with Maxxecu Race series to manage both the engine and transmission. All the factory gauges, reverse lights etc. remain operative.
#e30 #m30 #maxxecu #dct #GS7D36SG #tunedbyanton
Anton Krstic · Lead tuner · Bay 02
— Stage 3 tune
Power & torque · stock vs tuned.
— Power
Stock
0kW
→
Tuned
401kW
+401 kW (538 hp) at the hubs
— Torque
Stock
0Nm
→
Tuned
690Nm
+690 Nm (509 lb·ft) at the hubs

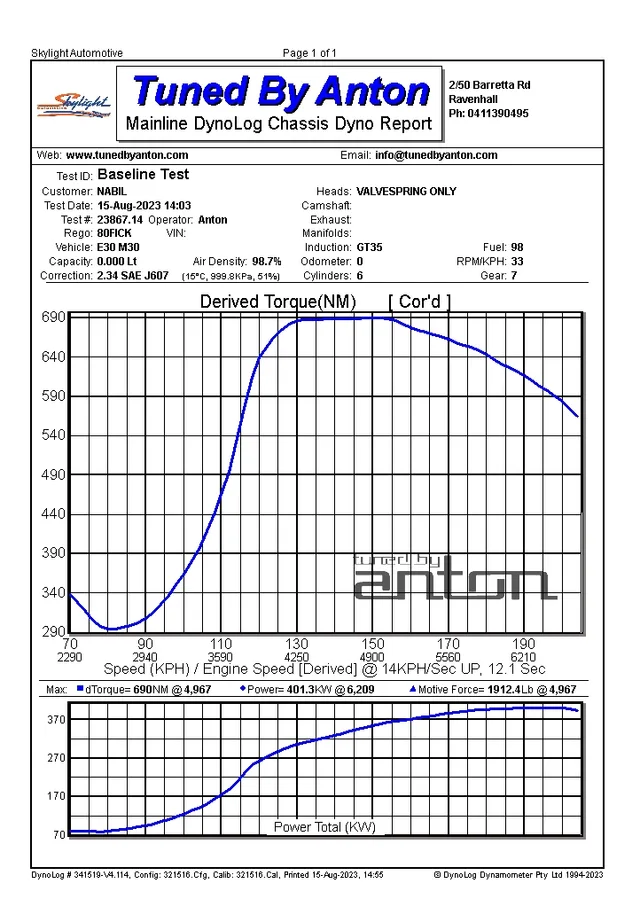

⌁Dyno graph · Pull recorded on the Mainline AWD
— Hardware
Modifications.
8 categories · Stage 3 build
- ·Intake
- ·Exhaust
- ·Down Pipe
- ·Intercooler
- ·Fuel System Upgrade
- ·Ignition Upgrade
- ·Turbocharger
- ·Headers
— Calibration
ECU improvements.
Maxxecu
- ·Improved Power
- ·Improved Torque
- ·Launch Control
- ·Throttle Blip
