Stage 3Haltech

BMW E36 1JZ Swapped

Tuned · 02 Apr 24
Bay 02 · Mainline AWD

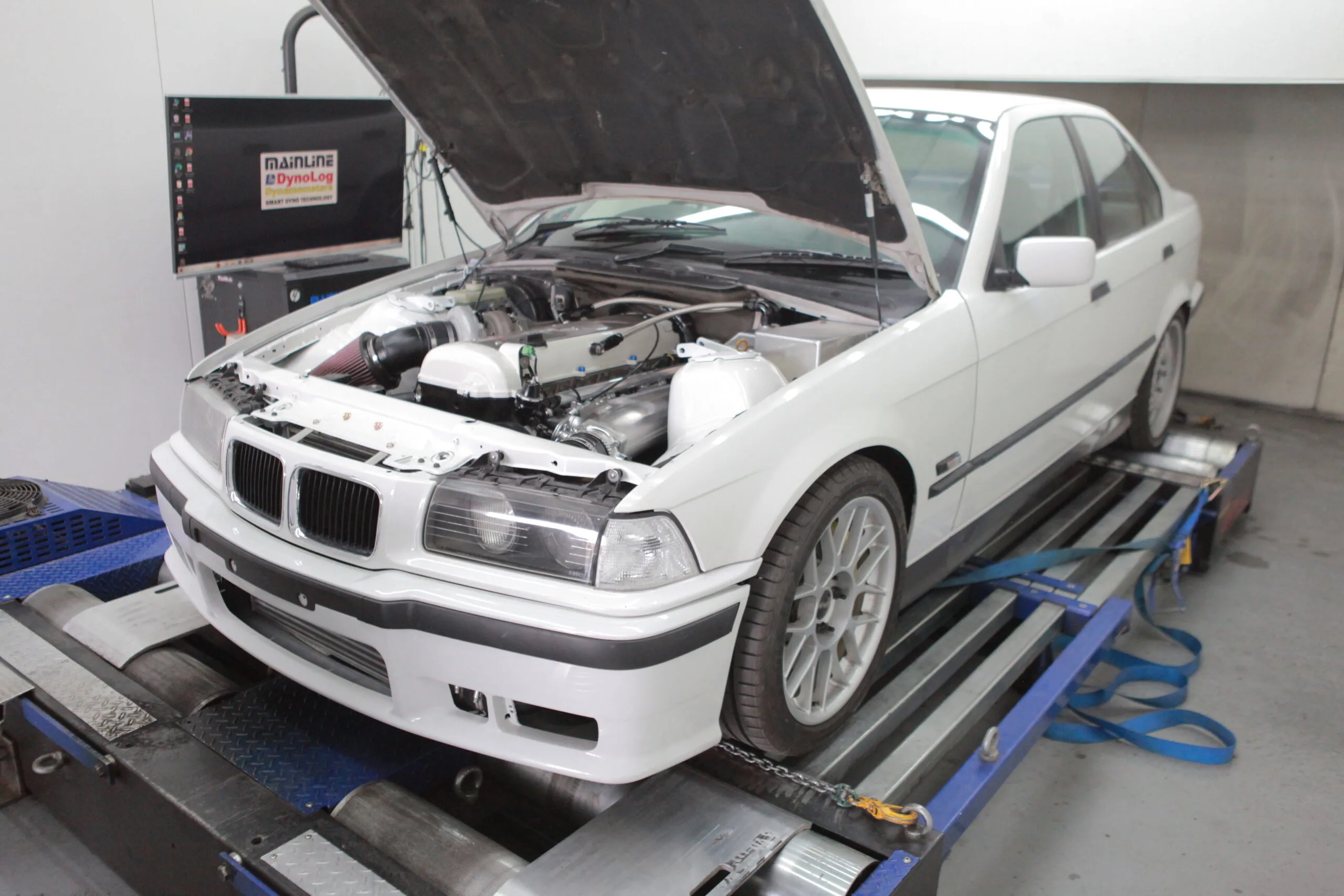

[ On the dyno ]BMW E36 1JZ Swapped: On the dyno
[ Dyno screen ]BMW E36 1JZ Swapped: Dyno screen
Vehicle details

Spec sheet.

MakeBMW
ModelE36
Engine1JZGTE
FuelE85
ECUHaltech
Drivetrain2WD
Notes from the tuner

What we did.

+309kw 1JZ swapped BMW E36

#hypertune #haltech #jzswap #hotwirez #theraceshop #atlasmotorsport #motorlab #tunedbyanton

Anton Krstic · Lead tuner · Bay 02

This BMW E36 was tuned on our Mainline AWD dyno. All results here come from dyno tuning in Melbourne at our Epping workshop.

Stage 3 tune

Power & torque · stock vs tuned.

Hubs · SAE J1349 · Median of 3 pulls
Power
Stock
175kW
→
Tuned
309kW
+134 kW (180 hp) at the hubs+77%
Torque
Stock
308Nm
→
Tuned
528Nm
+220 Nm (162 lb·ft) at the hubs+71%

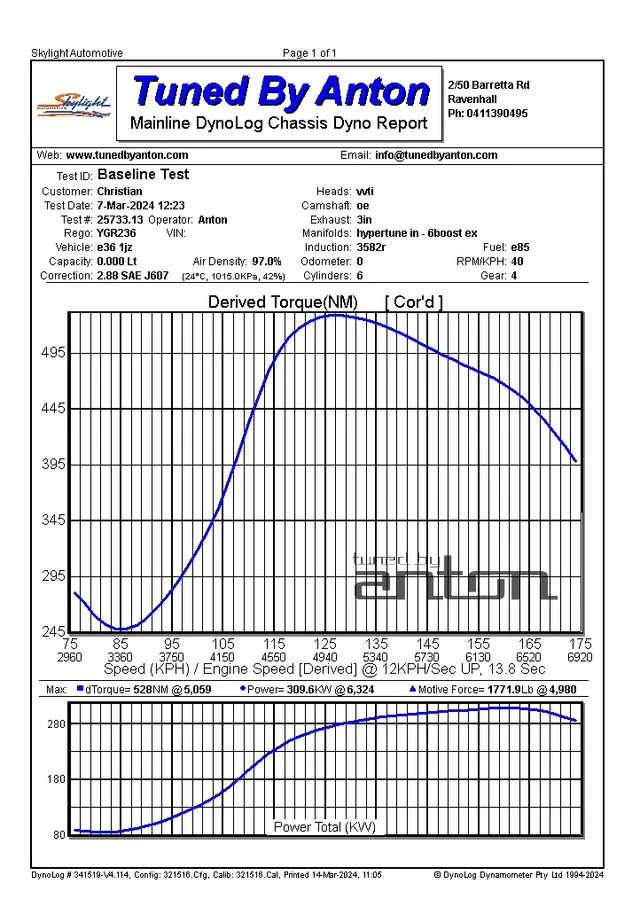

⌁Dyno graph · Pull recorded on the Mainline AWD
Download ↓
Hardware

Modifications.

9 categories · Stage 3 build
  • ·Intake
  • ·Exhaust
  • ·Down Pipe
  • ·Intercooler
  • ·Fuel System Upgrade
  • ·Ignition Upgrade
  • ·Transmission Components
  • ·Turbocharger
  • ·Headers
Calibration

ECU improvements.

Haltech
  • ·Improved Fuel Efficiency
  • ·Improved Power
  • ·Improved Torque
