Stage 3Factory

Ford Focus XR5

Tuned · 02 Apr 22
Bay 02 · Mainline AWD

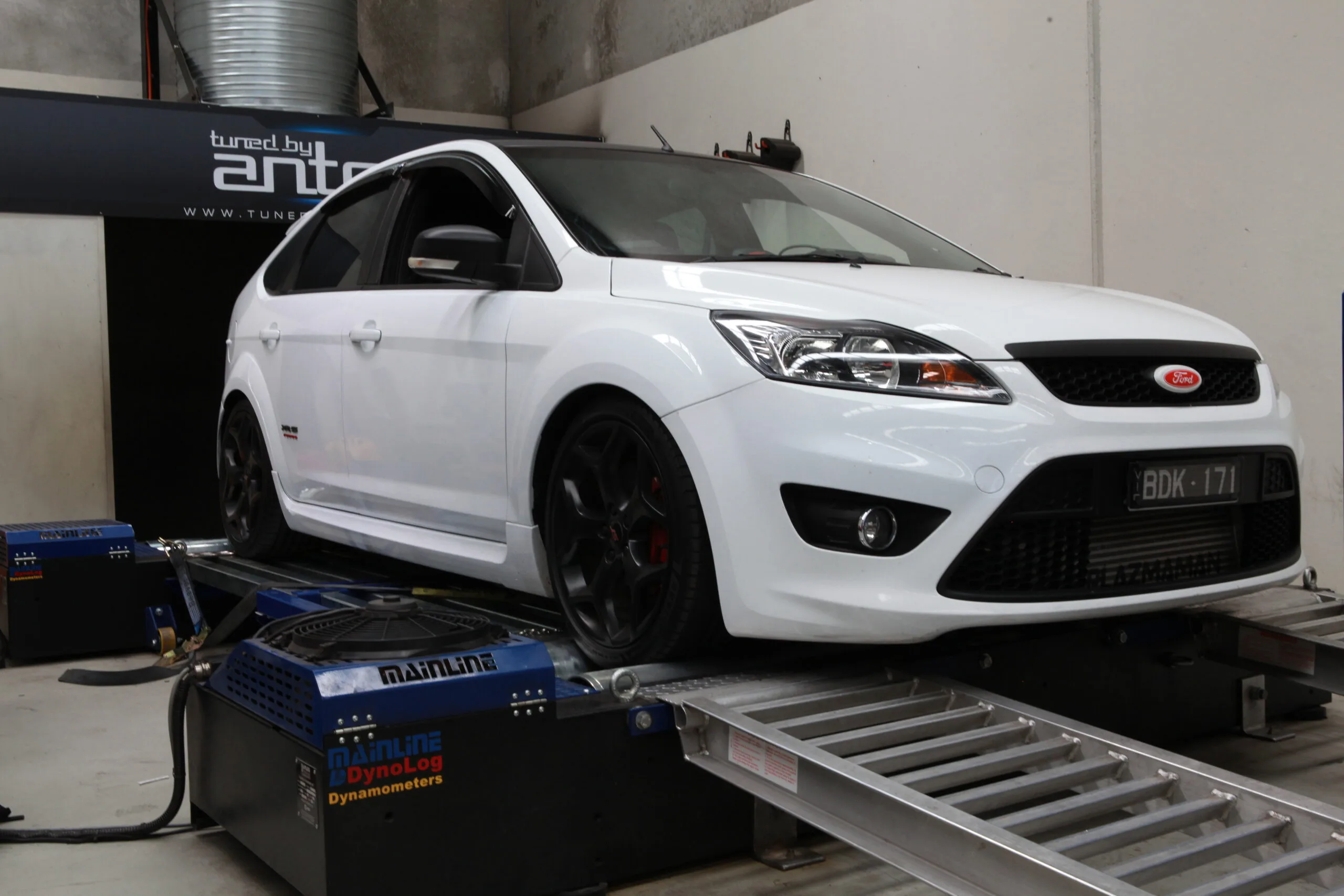

[ On the dyno ]Ford Focus XR5 — On the dyno
[ Engine bay ]
ENGINE

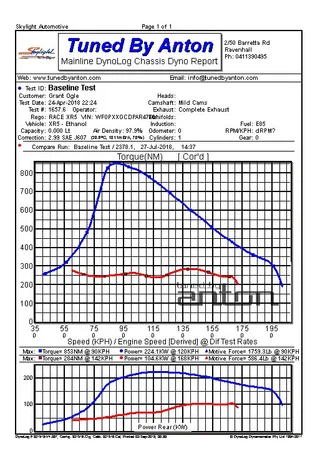

[ Dyno screen ]Ford Focus XR5 — Dyno screen
— Vehicle details

Spec sheet.

SeriesXR5
Yearaxy9xrg0ri40eq9w2z5wq2a0
FuelE85
ECUFactory
Drivetrain2WD
— Notes from the tuner

What we did.

The achilles heel of the xr5 platform would be the cracking sleeves. We have tuned numerous of these vehicles and multiple those of for ethanol fuel. One a road vehicle the other being a race car. Both vehicles contain upgrades to fuel system, intakes & intercooling, exhaust and of course the turbocharger. However only the race car contained the strengthened engine internals of pistons, rods and sleeves were the road vehicle did not. Both vehicles have been driven since 2017 and have not yet experienced engine failures. Is it possible that the notorious sleeve issue is relative to cylinder temperature, just maybe ethanol is a solution?



Anton Krstic · Lead tuner · Bay 02
Stage 3 tune

Power & torque · stock vs tuned.

Hubs · SAE J1349 · Median of 3 pulls
Power
Stock
104kW
Tuned
224kW
+120 kW (161 hp) at the hubs+115%
Torque
Stock
284Nm
Tuned
853Nm
+569 Nm (420 lb·ft) at the hubs+200%
— Hardware

Modifications.

7 categories · Stage 3 build
  • ·Intake
  • ·Exhaust
  • ·Down Pipe
  • ·Intercooler
  • ·Fuel System Upgrade
  • ·Engine Components
  • ·Turbocharger
— Calibration

ECU improvements.

Factory
  • ·Improved Power
  • ·Improved Torque
