Stage 3Factory
Ford Focus XR5 ST
Tuned · 28 July 22
Bay 02 · Mainline AWD
Bay 02 · Mainline AWD

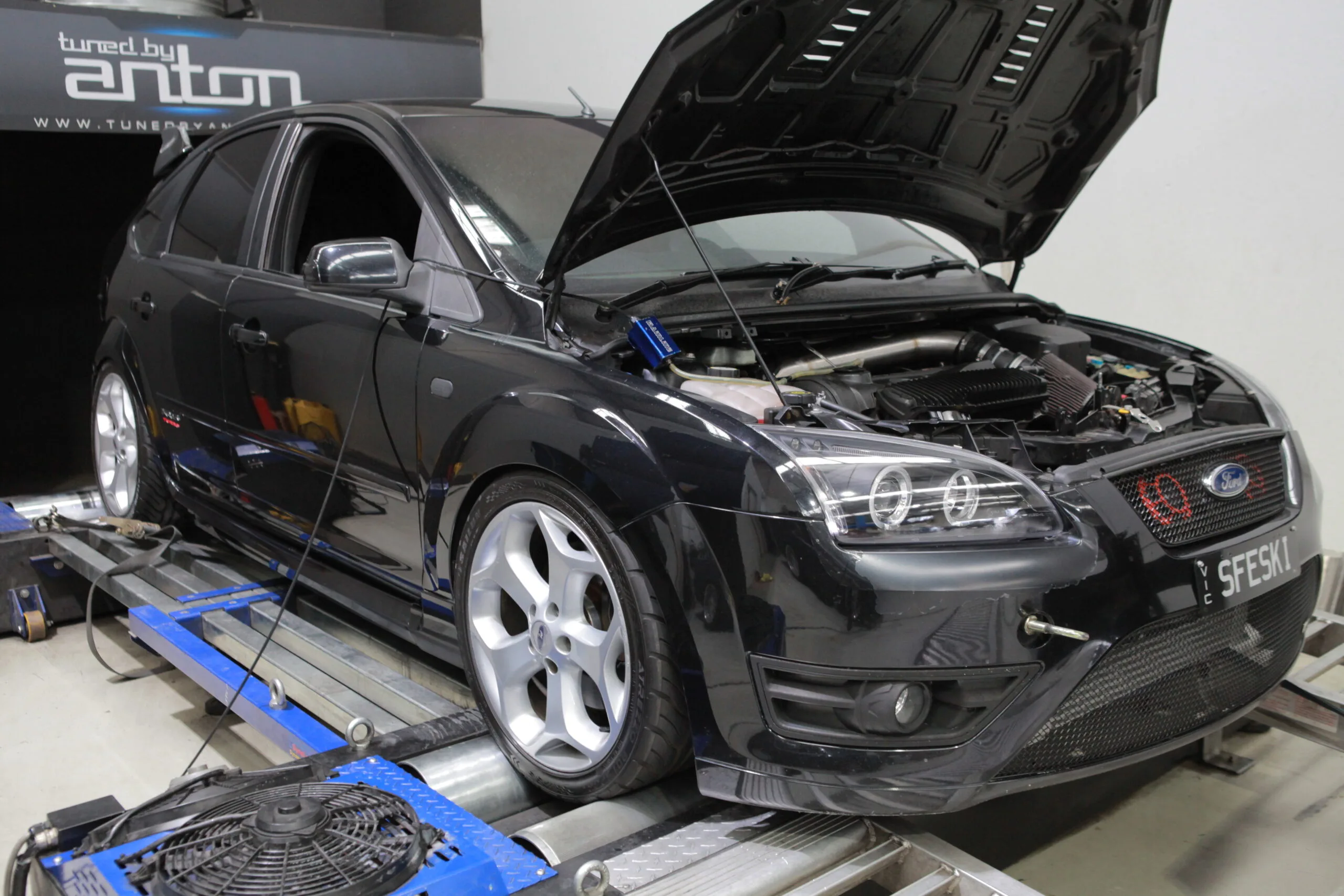

[ On the dyno ]
[ Engine bay ]
ENGINE
[ Dyno screen ]
— Vehicle details
Spec sheet.
SeriesXR5
Yeariaeqghpfzqh3z18m8k9bs2hx
FuelE85
ECUFactory
— Notes from the tuner
What we did.
2.5lt Focus producing 235kw on the stock sleeves. We believe the notorious cylinder liner issue is related to cylinder temperature. We are putting this vehicle on e85 to reduce the cylinder temperatures thus putting our theory to the test, over the next couple of months we will be observing how this vehicle progress'.
modifications include 3076 pulsar turbocharger, fmic and full exhaust & an upgraded fuel system which allows us to utilise e85 fuel.
#xr5 #focus #tunedbyanton
Anton Krstic · Lead tuner · Bay 02
— Stage 3 tune
Power & torque · stock vs tuned.
— Power
Stock
115kW
→
Tuned
235kW
+120 kW (161 hp) at the hubs+104%
— Torque
Stock
227Nm
→
Tuned
427Nm
+200 Nm (148 lb·ft) at the hubs+88%

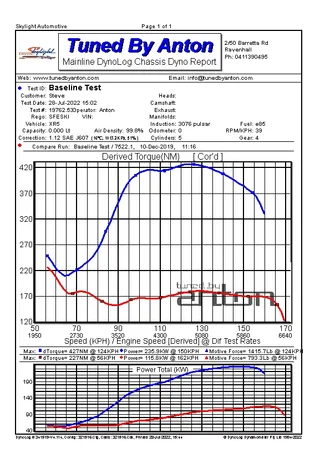

⌁Dyno graph · Pull recorded on the Mainline AWD
— Hardware
Modifications.
6 categories · Stage 3 build
- ·Intake
- ·Exhaust
- ·Down Pipe
- ·Intercooler
- ·Fuel System Upgrade
- ·Turbocharger
— Calibration
ECU improvements.
Factory
- ·Improved Power
- ·Improved Torque
- ·Exhaust Burbles/Pops
