Ford Ranger PX2 Stage 1

Tuned · 25 Mar 23
Bay 02 · Mainline AWD

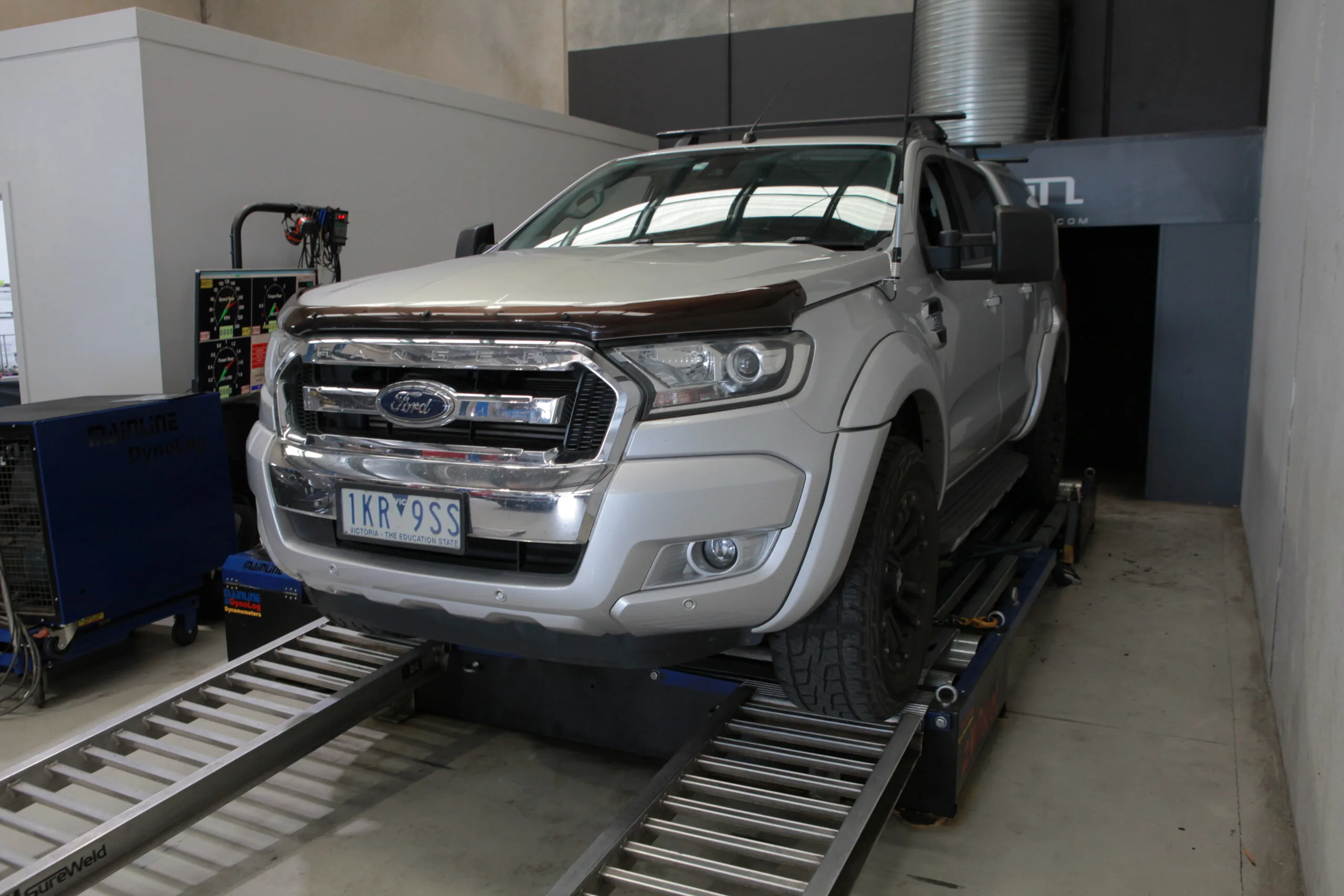

[ On the dyno ] Ford Ranger PX2 Stage 1 — On the dyno

[ Engine bay ]

SA2W

[ Dyno screen ] Ford Ranger PX2 Stage 1 — Dyno screen

— Vehicle details

Spec sheet.

SeriesPX

Yeargrotdr4ce867np0vgus0xobu

EngineSA2W

FuelDiesel

ECUFactory

Drivetrain4WD

— Notes from the tuner

Stage 1 custom engine remap for Ford Ranger 3.2

110kW > 145kW +30% power410nm > 600nm +40% torque

If vehicle is being the power/torque output is reduced accordingly to the additional weight.

#ford #ranger #dieseltuning #melbourne #tunedbyanton

Anton Krstic · Lead tuner · Bay 02

— Stage 1 tune

Hubs · SAE J1349 · Median of 3 pulls

— Power

Stock

110kW

→

Tuned

145kW

+35 kW (47 hp) at the hubs+32%

— Torque

Stock

412Nm

→

Tuned

600Nm

+188 Nm (139 lb·ft) at the hubs+46%

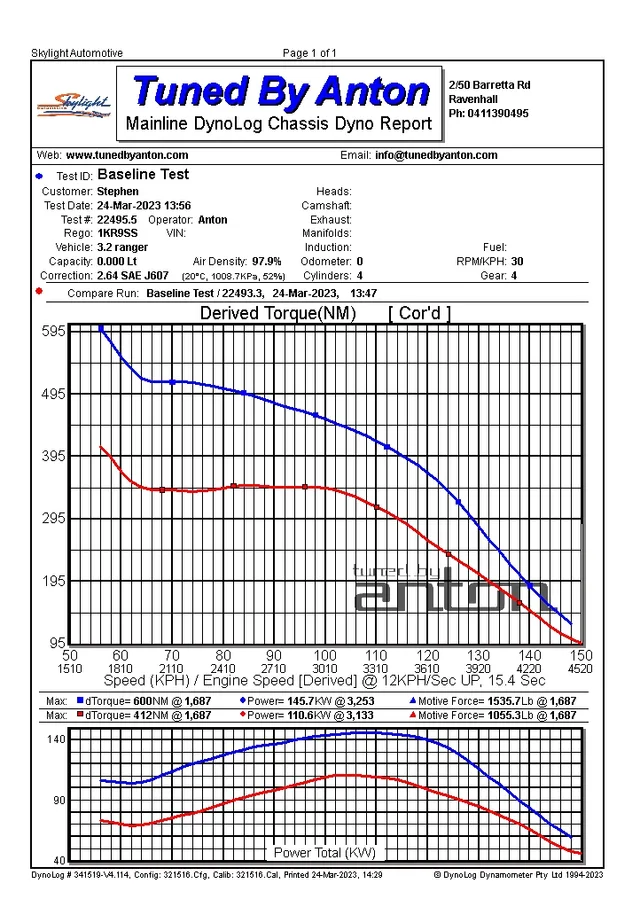

⌁Dyno graph · Pull recorded on the Mainline AWD

— Calibration

Factory
