Hyundai i30N - Stage 2 Tune
Tuned · 16 Feb 25
Bay 02 · Mainline AWD
Bay 02 · Mainline AWD

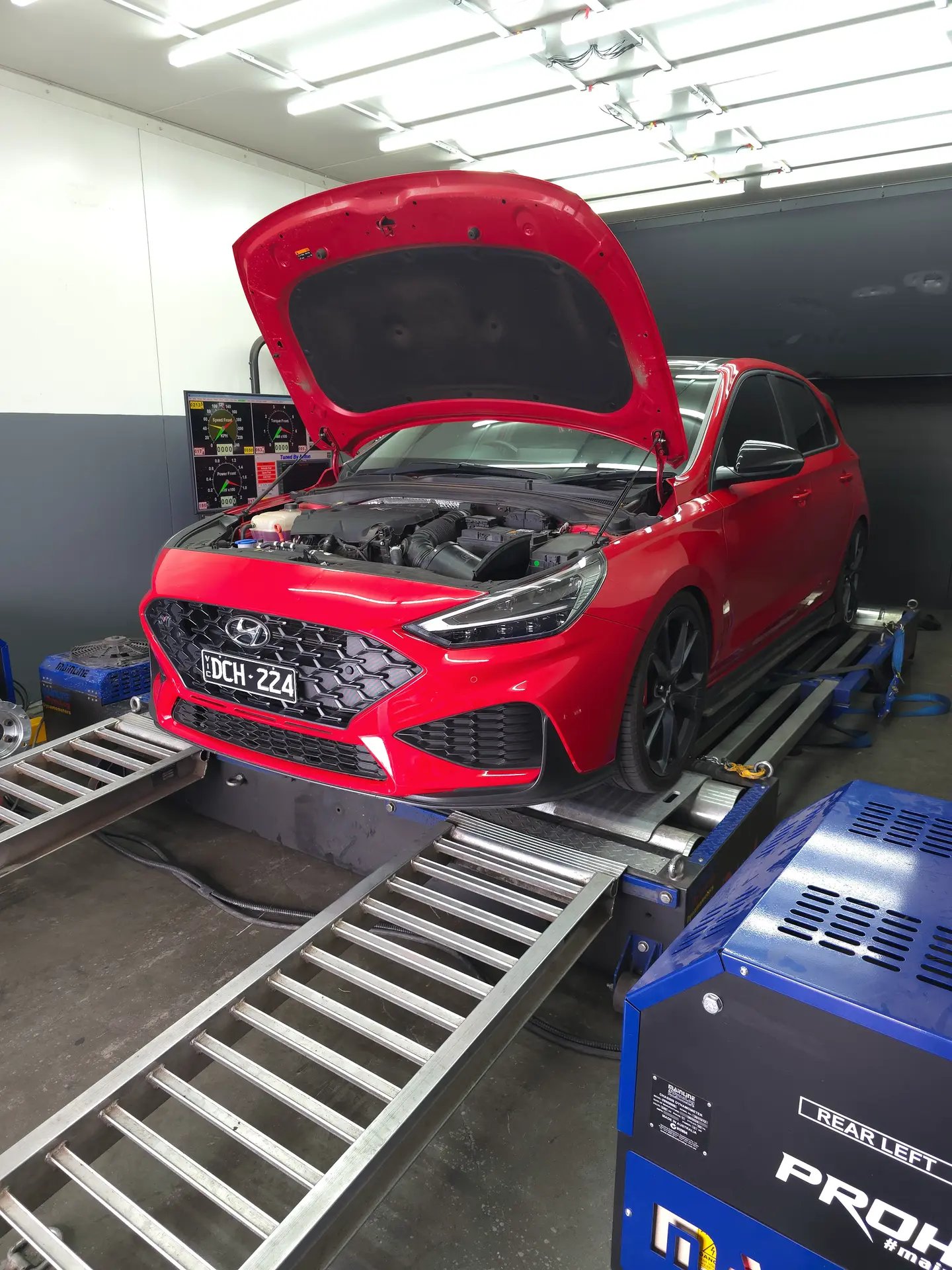

[ On the dyno ]
[ Dyno screen ]
Vehicle details
Spec sheet.
MakeHyundai
Modeli30N
EngineG4KH
Fuel98 RON
ECUFactory
Drivetrain4WD
Notes from the tuner
What we did.
i30N upgraded with a midpipe, Wagner intercooler, and Forge air intake, delivering an extra 70Nm of torque in the mid-RPM range.
The power-to-weight ratio for the Hyundai i30N is:
Stock: 118.3 kW/tonTuned: 124.6 kW/ton
Should be a noticeable improvement.
Anton Krstic · Lead tuner · Bay 02
This Hyundai i30N was tuned on our Mainline AWD dyno. See our Stage 2 | Hyundai i30N if you're after a fixed-price build. All results here come from dyno tuning in Melbourne at our Epping workshop.
Stage 2 tune
Power & torque · stock vs tuned.
Power
Stock
169kW
→
Tuned
178kW
+9 kW (12 hp) at the hubs+5%
Torque
Stock
301Nm
→
Tuned
343Nm
+42 Nm (31 lb·ft) at the hubs+14%

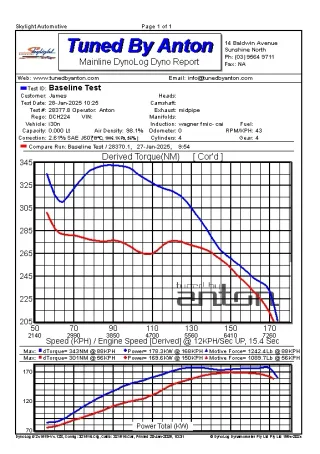

⌁Dyno graph · Pull recorded on the Mainline AWD
Hardware
Modifications.
3 categories · Stage 2 build
- ·Intake
- ·Exhaust
- ·Intercooler
Calibration
ECU improvements.
Factory
- ·Improved Power
- ·Improved Torque
