Jeep SRT Stage 1
Tuned · 11 Nov 25
Bay 02 · Mainline AWD
Bay 02 · Mainline AWD

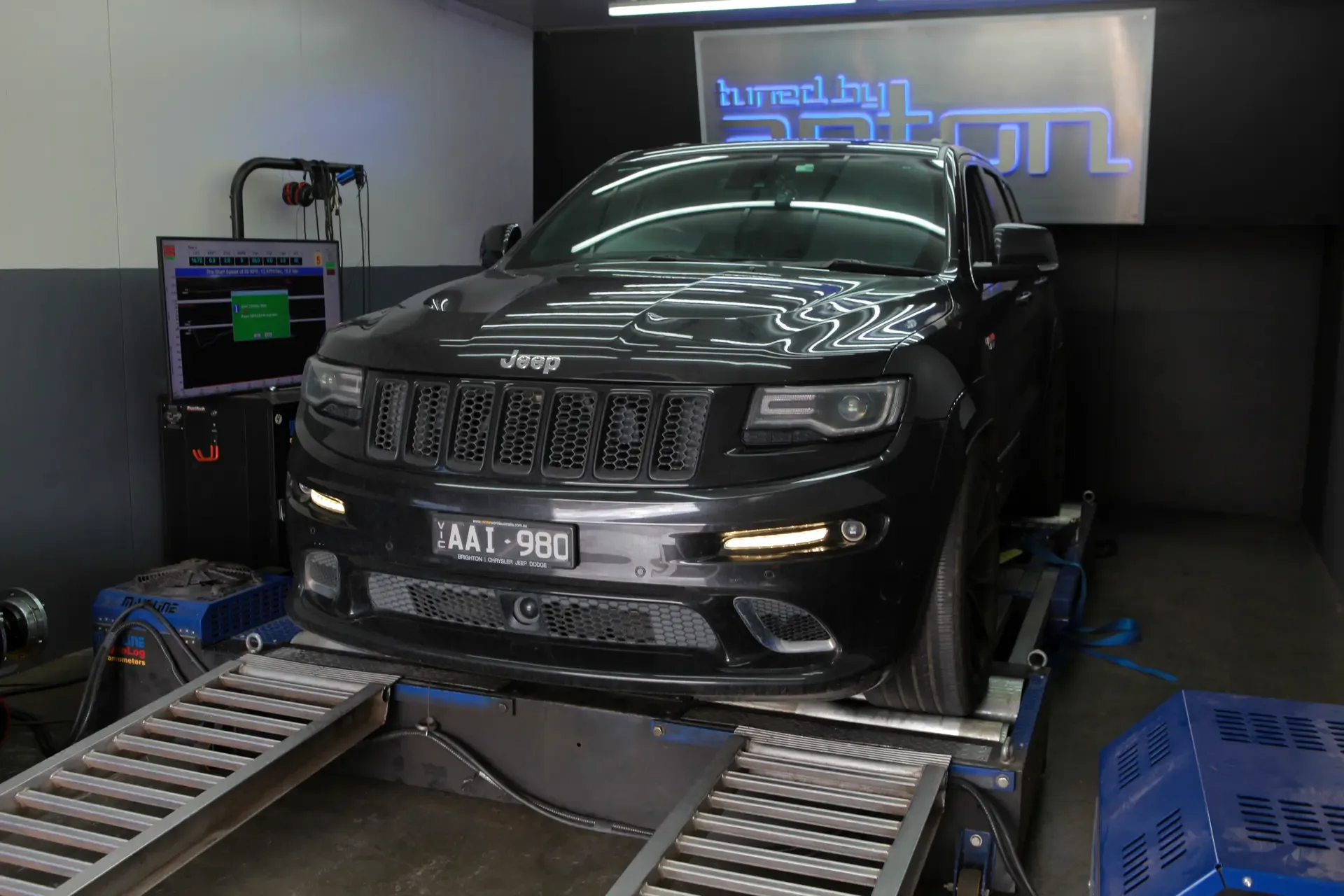

[ On the dyno ]
[ Dyno screen ]
Vehicle details
Spec sheet.
MakeJeep
ModelSRT
EngineHEMI
Fuel98 RON
ECUFactory
Drivetrain4WD
Notes from the tuner
What we did.
The Jeep's engine was replaced with a crate engine after a lifter failure, however this introduced new problems, which were identified through dyno session datalogging. The issues were solved by retuning the vehicle.The vehicle hardware remains stock.
Anton Krstic · Lead tuner · Bay 02
This Jeep SRT was tuned on our Mainline AWD dyno. All results here come from dyno tuning in Melbourne at our Epping workshop.
Other Jeep SRT results.
Stage 1 tune
Power & torque · stock vs tuned.
Power
Stock
218kW
→
Tuned
238kW
+20 kW (27 hp) at the hubs+9%
Torque
Stock
445Nm
→
Tuned
469Nm
+24 Nm (18 lb·ft) at the hubs+5%

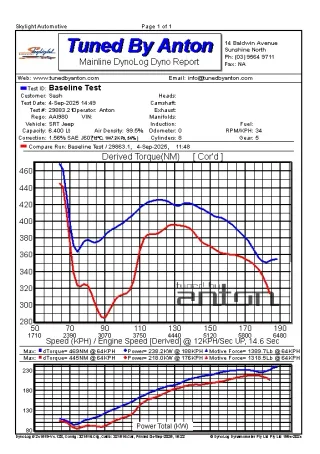

⌁Dyno graph · Pull recorded on the Mainline AWD
Calibration
ECU improvements.
Factory
- ·Improved Power
- ·Improved Torque
