Mercedes S560 AMG - Stage 2 with Dump Valves
Tuned · 15 May 24
Bay 02 · Mainline AWD
Bay 02 · Mainline AWD
[ On the dyno ]
[ Engine bay ]
ENGINE
[ Dyno screen ]
— Vehicle details
Spec sheet.
ModelS560
Yeargrotdr4ce867np0vgus0xobu
Fuel98 RON
ECUFactory
Drivetrain2WD
— Notes from the tuner
What we did.

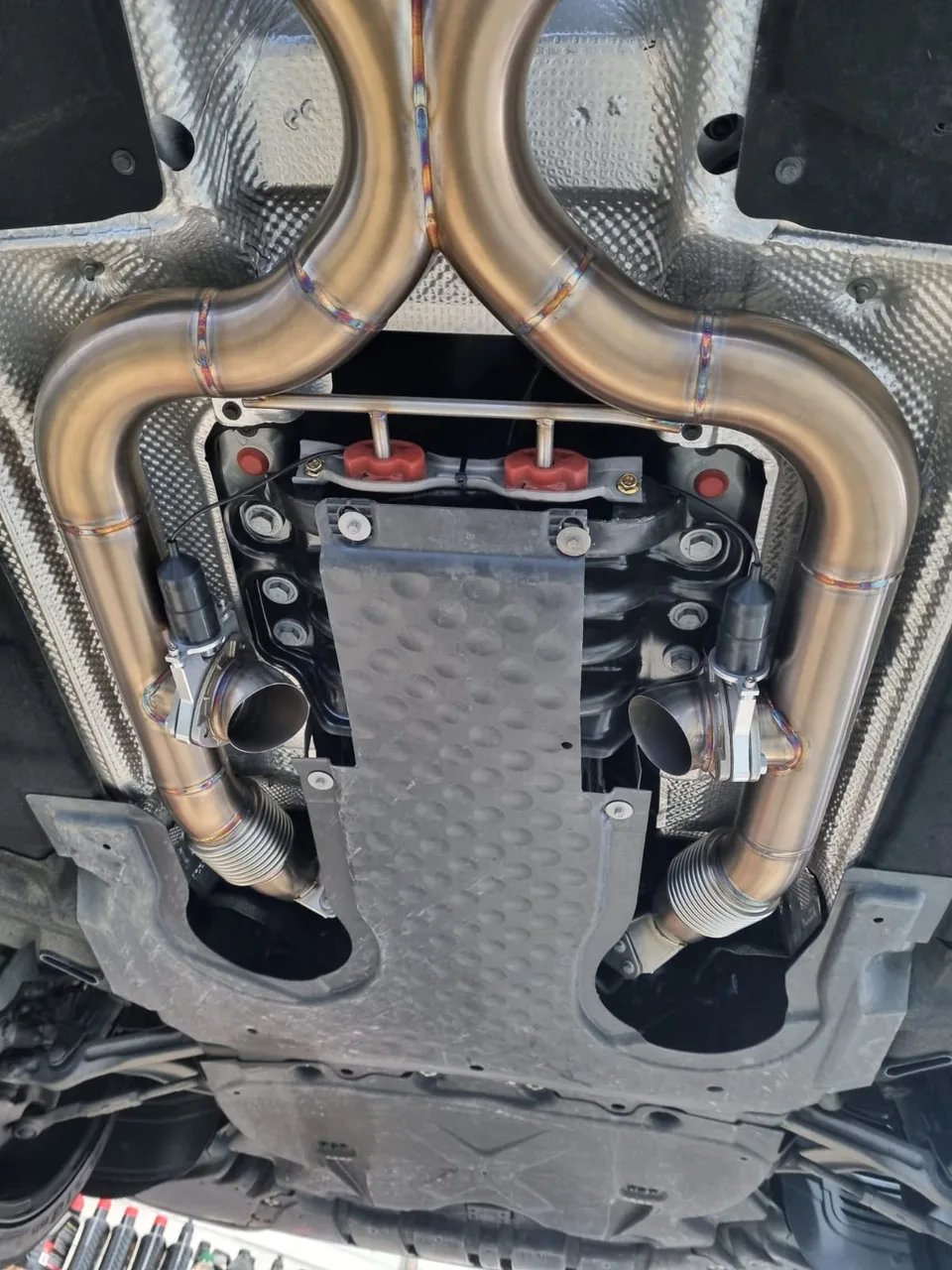

A Mercedes S560 AMG is scheduled for a Stage 2 downpipe installation. The owner has chosen to include a remote-controlled variable exhaust note, we got carried away adding dump valves for additional flair. An engine tune has been performed, increasing torque by 80 Nm and power by approximately 60 kW, restrained within the limits of the OEM transmission torque limitation.
Fabrication by Geelong Motorsport Fabrications
#s560 #amg #m177 #dumpvalves #geelongmotorsportfabrications #tunedbyanton
Anton Krstic · Lead tuner · Bay 02
— Stage 2 tune
Power & torque · stock vs tuned.
— Power
Stock
286kW
→
Tuned
344kW
+58 kW (78 hp) at the hubs+20%
— Torque
Stock
630Nm
→
Tuned
714Nm
+84 Nm (62 lb·ft) at the hubs+13%

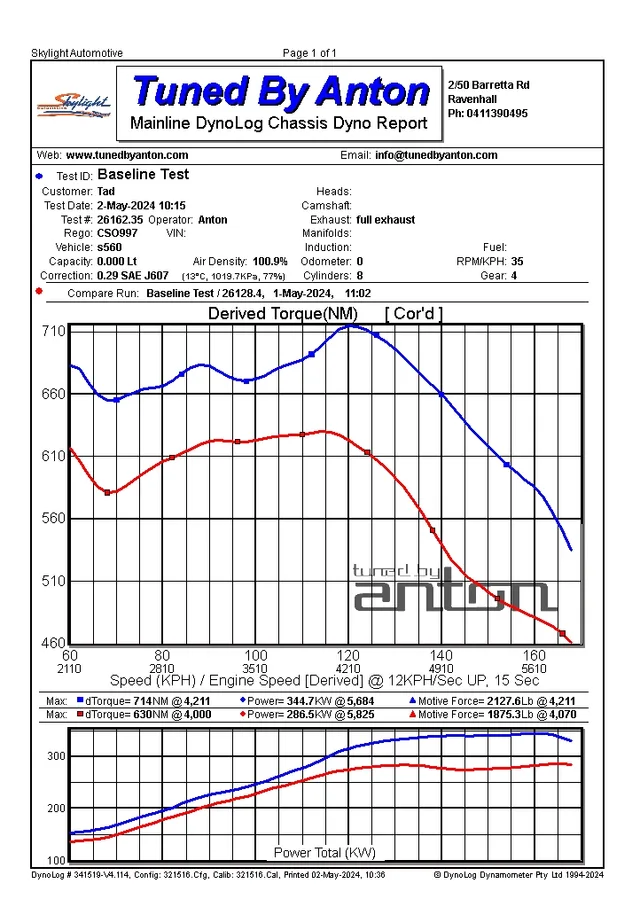

⌁Dyno graph · Pull recorded on the Mainline AWD
— Hardware
Modifications.
2 categories · Stage 2 build
- ·Exhaust
- ·Down Pipe
— Calibration
ECU improvements.
Factory
- ·Improved Power
- ·Improved Torque
