Nissan 200SX S14

Tuned · 27 May 22
Bay 02 · Mainline AWD

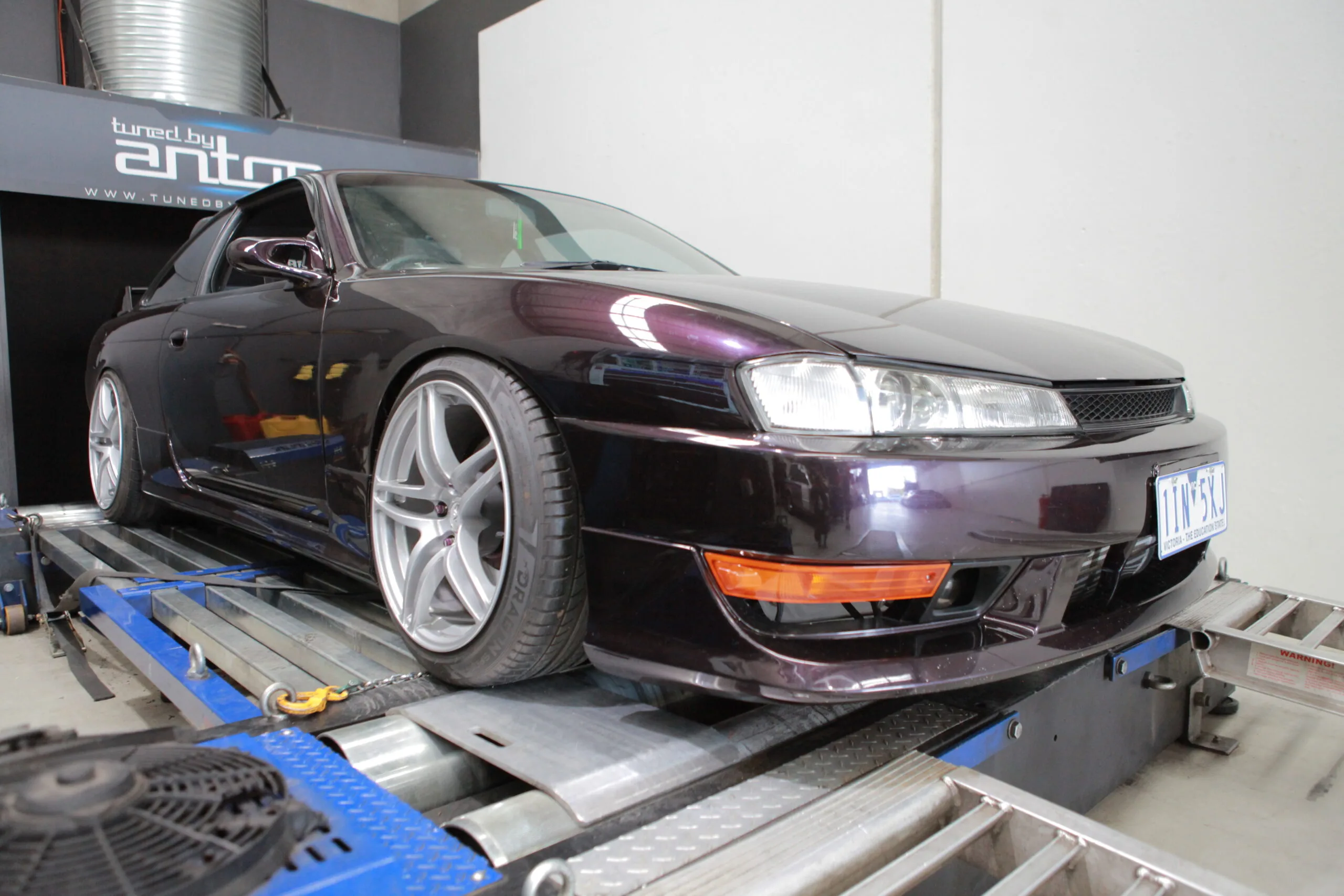

[ On the dyno ] Nissan 200SX S14 — On the dyno

[ Engine bay ]

SR20

[ Dyno screen ] Nissan 200SX S14 — Dyno screen

— Vehicle details

Spec sheet.

SeriesS14

Yeartn9v1fidj3jkea4jprob74rk

EngineSR20

FuelE85

ECUHaltech

Drivetrain2WD

— Notes from the tuner

What we did.

A neat S14 from the guys at FFG. This S14 is producing 330kW @ 25psi. Some of the mods made to this SR20 are Hypertune manifold, Garret G25-550 .91, 264/272 non vct Kelford cams & engine management is via Haltech Elite.

#ffg #hypertune #garret #kelford #haltech

Anton Krstic · Lead tuner · Bay 02

— Stage 3 tune

Power & torque · stock vs tuned.

Hubs · SAE J1349 · Median of 3 pulls

— Power

Stock

130kW

→

Tuned

330kW

+200 kW (268 hp) at the hubs+154%

— Torque

Stock

218Nm

→

Tuned

485Nm

+267 Nm (197 lb·ft) at the hubs+122%

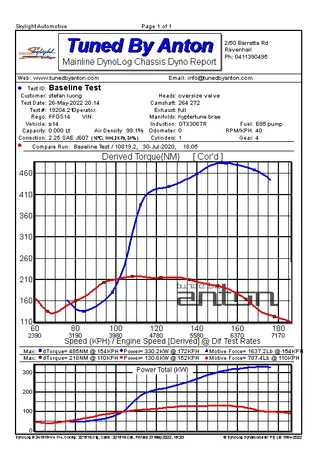

⌁Dyno graph · Pull recorded on the Mainline AWD

Download ↓

— Hardware

Modifications.

10 categories · Stage 3 build

·Intake
·Exhaust
·Down Pipe
·Intercooler
·Fuel System Upgrade
·Ignition Upgrade
·Engine Components
·Transmission Components
·Turbocharger
·Headers

— Calibration

ECU improvements.

Haltech

·Improved Power
·Improved Torque
