Nissan Silvia S14

Tuned · 09 Dec 22
Bay 02 · Mainline AWD

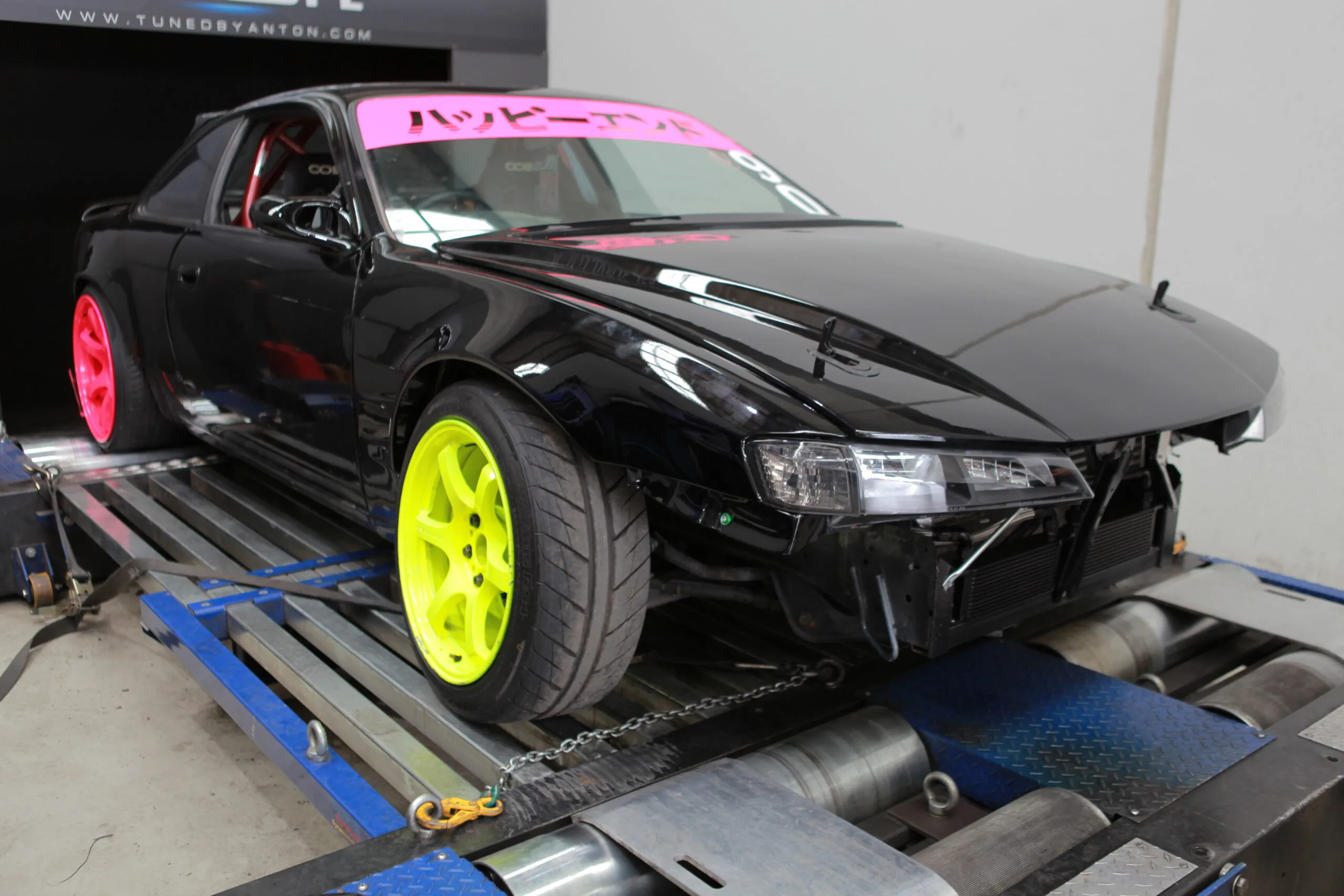

[ On the dyno ] Nissan Silvia S14 — On the dyno

[ Engine bay ]

SR20

[ Dyno screen ] Nissan Silvia S14 — Dyno screen

— Vehicle details

Spec sheet.

SeriesS14

Yearfphh1vnjz391o52idjl48e8c

EngineSR20

FuelE85

ECUApexi Power FC

Drivetrain2WD

— Notes from the tuner

What we did.

FFG S14 drift car with a simple built SR20 with Tomei poncams, G25-550 on e85 with Apexi Power FC. 2 boost configurations via Apexi AVCR. 1.4 & 1.7bar. With this configuration we are seeing a strong 10lbs of boost @ 2500rpm.

#apexi #sr20 #powerfc #tomei #silvia #s14 #ffg #tunedbyanton

Anton Krstic · Lead tuner · Bay 02

— Stage 3 tune

Power & torque · stock vs tuned.

Hubs · SAE J1349 · Median of 3 pulls

— Power

Stock

258kW

→

Tuned

269kW

+11 kW (15 hp) at the hubs+4%

— Torque

Stock

392Nm

→

Tuned

479Nm

+87 Nm (64 lb·ft) at the hubs+22%

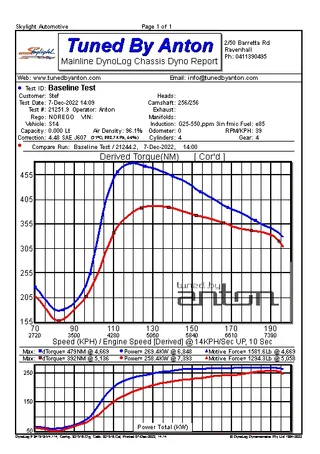

⌁Dyno graph · Pull recorded on the Mainline AWD

Download ↓

— Hardware

Modifications.

9 categories · Stage 3 build

·Intake
·Exhaust
·Down Pipe
·Intercooler
·Fuel System Upgrade
·Ignition Upgrade
·Engine Components
·Turbocharger
·Headers

— Calibration

ECU improvements.

Apexi Power FC

·Improved Power
·Improved Torque
