Stage 3ECUTEK

Supercharged GT86 RG240 Emissions Overhaul

Tuned · 15 Sept 24
Bay 02 · Mainline AWD
[ On the dyno ]Supercharged GT86 RG240 Emissions Overhaul: On the dyno

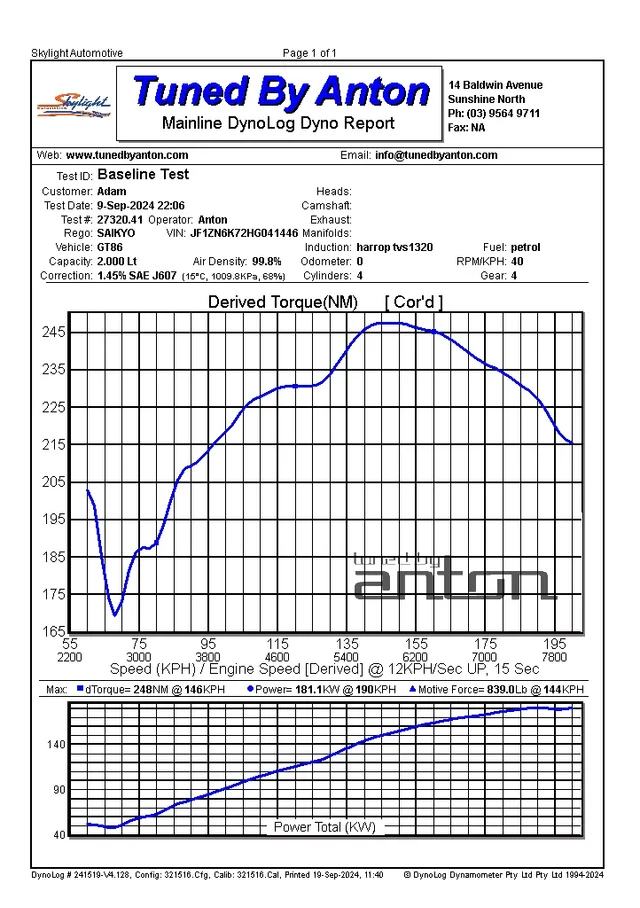

[ Dyno screen ]Supercharged GT86 RG240 Emissions Overhaul: Dyno screen
Vehicle details

Spec sheet.

MakeToyota
ModelGT86
EngineFA20
Fuel98 RON
Drivetrain2WD
Notes from the tuner

What we did.

This GT86 featuring a Harrop TVS1320 is booked in for RG240 emissions testing. Initially, it failed the emissions testing even with stock exhaust. With tuning we significantly reduced carbon emissions from 4.08 g/km down to 0.017 g/km, meeting ADR 79/04 (Euro 5) standards.



During the process we also increased torque by approximately 50–60 Nm across the entire RPM range.



#RG240 #emissions #melbourne #gt86 #ecutek #harrop #tvs1320 #mcarterauto #tunedbyanton

Anton Krstic · Lead tuner · Bay 02

This Toyota GT86 was tuned on our Mainline AWD dyno. All results here come from dyno tuning in Melbourne at our Epping workshop.

Stage 3 tune

Power & torque · stock vs tuned.

Hubs · SAE J1349 · Median of 3 pulls
Power
Stock
99kW
Tuned
181kW
+82 kW (110 hp) at the hubs+83%
Torque
Stock
149Nm
Tuned
248Nm
+99 Nm (73 lb·ft) at the hubs+66%
Hardware

Modifications.

4 categories · Stage 3 build
  • ·Intake
  • ·Intercooler
  • ·Fuel System Upgrade
  • ·Supercharger
Calibration

ECU improvements.

ECUTEK
  • ·Improved Fuel Efficiency
  • ·Improved Power
  • ·Improved Torque
  • ·Increased Throttle Response
  • ·Emissions Compliant
