Volkswagen Amarok 3.0 Stage 1

Tuned · 17 Aug 24
Bay 02 · Mainline AWD

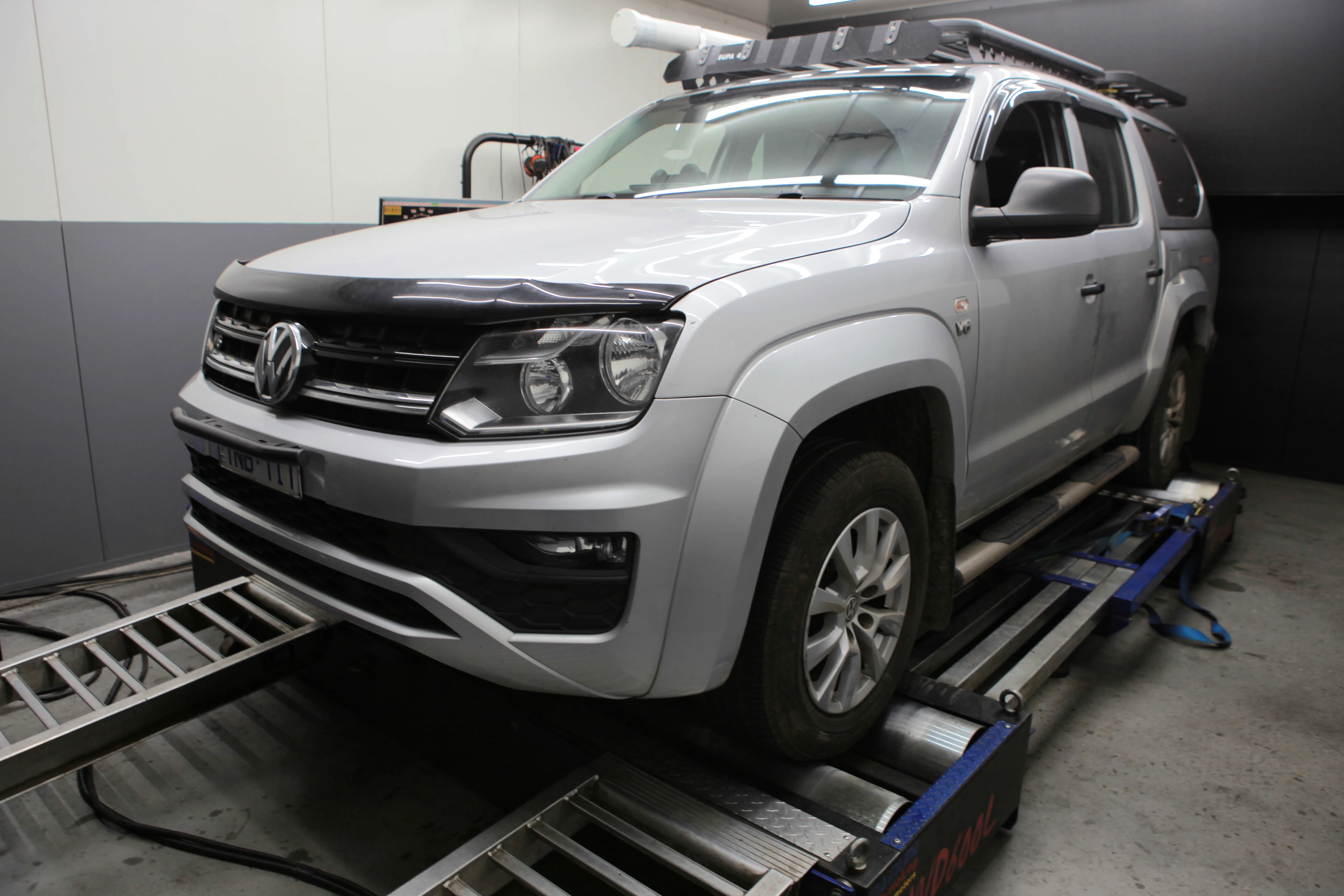

[ On the dyno ]Volkswagen Amarok 3.0 Stage 1 — On the dyno
[ Engine bay ]
ENGINE

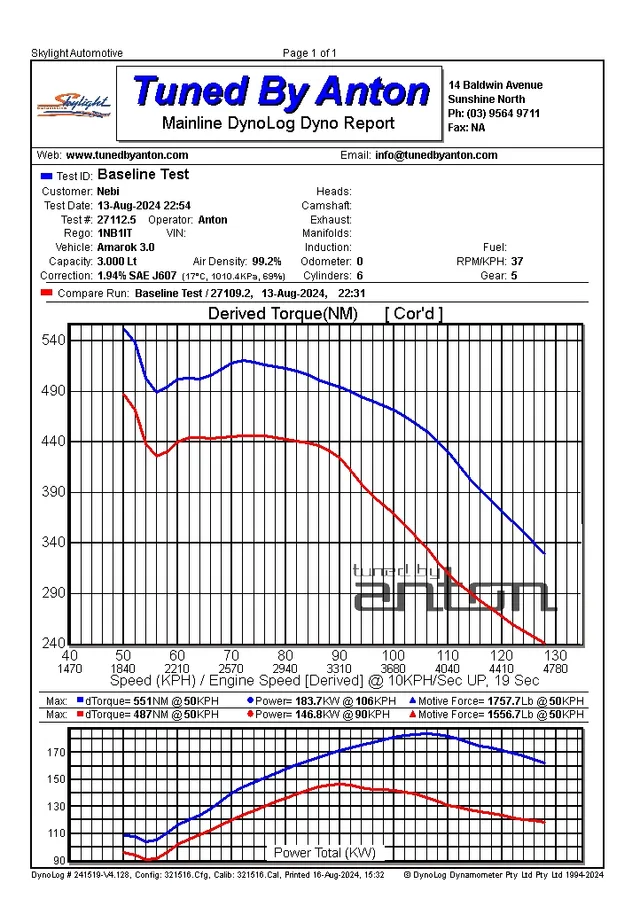

[ Dyno screen ]Volkswagen Amarok 3.0 Stage 1 — Dyno screen
— Vehicle details

Spec sheet.

ModelAmarok
Yeartpa4y8y1zajvsrr6orqpi3uc
Fuel98 RON
ECUFactory
Drivetrain4WD
— Notes from the tuner

What we did.

This standard 3L Amarok, burdened by the heavy load of tradie tools, received tuning to liven up its performance. Our tuning solution delivered significant improvements:

Torque Boost: +75 Nm early in the RPM band and +140 Nm in the higher range.

Power Output: Increase of over 40 kW at the most noticeable point.

Additionally, the transmission tuning enhanced line pressure and responsiveness in shifting, optimizing both performance and drivability.

#amarok #dieseltuning #melbourne #tunedbyanton



Anton Krstic · Lead tuner · Bay 02
Stage 1 tune

Power & torque · stock vs tuned.

Hubs · SAE J1349 · Median of 3 pulls
Power
Stock
103kW
Tuned
130kW
+27 kW (36 hp) at the hubs+26%
Torque
Stock
487Nm
Tuned
551Nm
+64 Nm (47 lb·ft) at the hubs+13%
— Calibration

ECU improvements.

Factory
  • ·Improved Fuel Efficiency
  • ·Improved Power
  • ·Improved Torque
  • ·Increased Clutch Line Pressure
  • ·Optimized Shift Schedule
  • ·Increased Clutch Torque Limits
