Seat Cupra Stage 1 Tune

Tuned · 01 Apr 23
Bay 02 · Mainline AWD

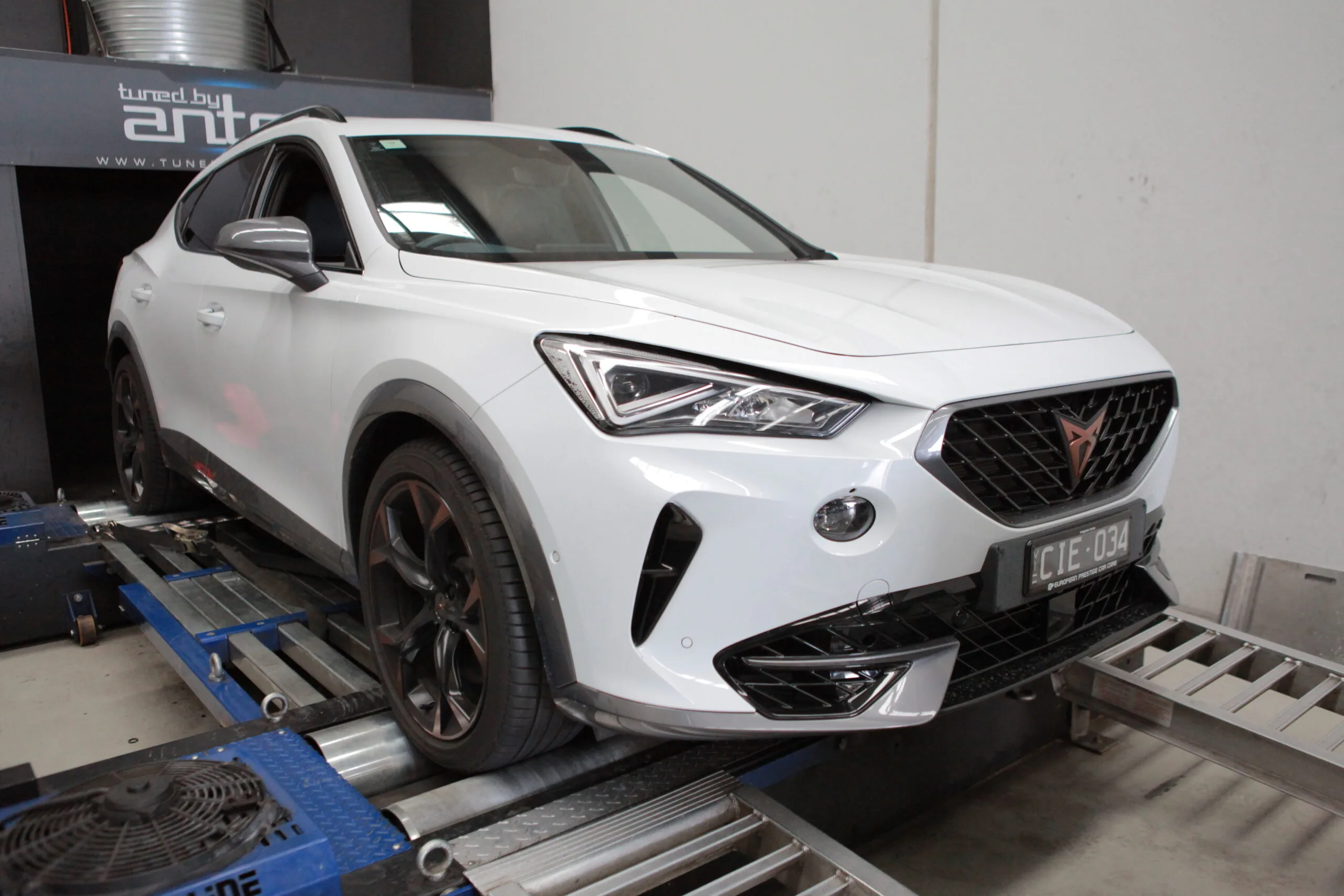

[ On the dyno ] Seat Cupra Stage 1 Tune — On the dyno

[ Engine bay ]

EA888

[ Dyno screen ] Seat Cupra Stage 1 Tune — Dyno screen

— Vehicle details

Spec sheet.

ModelFormentor VZ

Yearfxf4ry8v9c3v9pbd9sr35hfg

EngineEA888

Fuel98 RON

ECUFactory

Drivetrain4WD

— Notes from the tuner

What we did.

Volkswagen Cupra custom stage1 calibration on the new Simos 19 platform. Vehicle is stock.Torque 362nm > 434nm +20%Power 167wKw > 216wKw +29%

Some tweaks we have applied is pops(impulse) can be toggled via cruise control, start/stop, motor sound, brake boosting improved thermal efficiencies of engine & transmission.

#volkswagen #cupra #simos19 #melbourne #ea888 #golf #customtuning #tunedbyanton

Anton Krstic · Lead tuner · Bay 02

— Stage 1 tune

Power & torque · stock vs tuned.

Hubs · SAE J1349 · Median of 3 pulls

— Power

Stock

167kW

→

Tuned

216kW

+49 kW (66 hp) at the hubs+29%

— Torque

Stock

362Nm

→

Tuned

434Nm

+72 Nm (53 lb·ft) at the hubs+20%

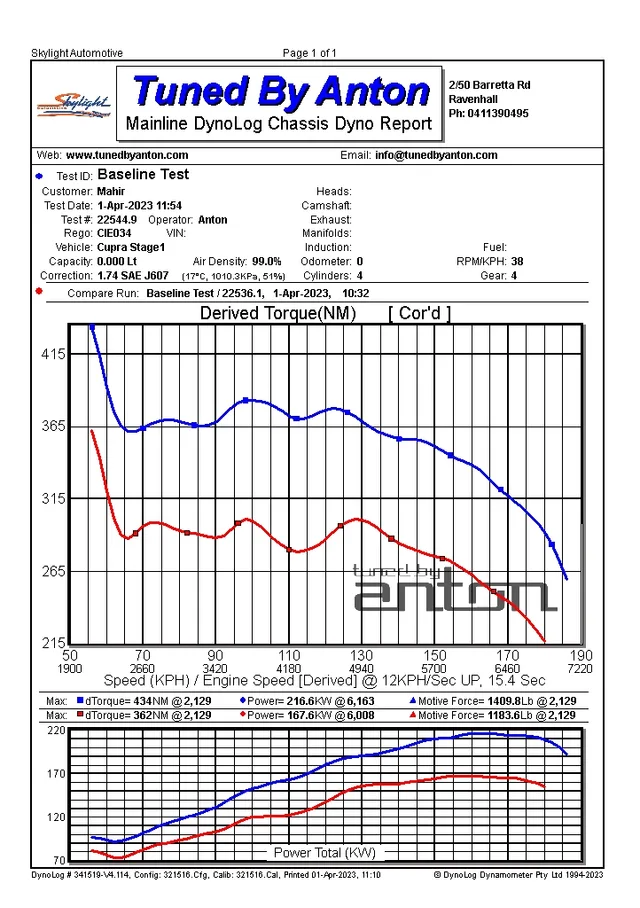

⌁Dyno graph · Pull recorded on the Mainline AWD

Download ↓

— Calibration

ECU improvements.

Factory

·Improved Fuel Efficiency
·Improved Power
·Improved Torque
·Increased Throttle Response
·Disable Brake Intervention
·Exhaust Burbles/Pops
·Disabled Auto Start/Stop
·Disabled Motor Sound
·Improved Thermal Dynamics
