Volkswagen Golf MK7 GTI Stage 2
Tuned · 14 Oct 22
Bay 02 · Mainline AWD
Bay 02 · Mainline AWD
[ On the dyno ]
[ Dyno screen ]
Vehicle details
Spec sheet.
Notes from the tuner
What we did.
Golf GTI with our stage 2 package. Improved peak torque by 33% & peak power 17%. Hardware covers intake, downpipe & ignition system. We have restricted the performance output due to lack of charge density.
TCU program contains higher clamping pressure, revised shift schedule for drive & sport mode. Torque limitations are scaled to prevent the torque curve peaking above the 100nm in the 2500-3000rpm area.
to book your VW for a tune simply visit www.tunedbyanton.com
#golf #gti #tunedbyanton
Anton Krstic · Lead tuner · Bay 02

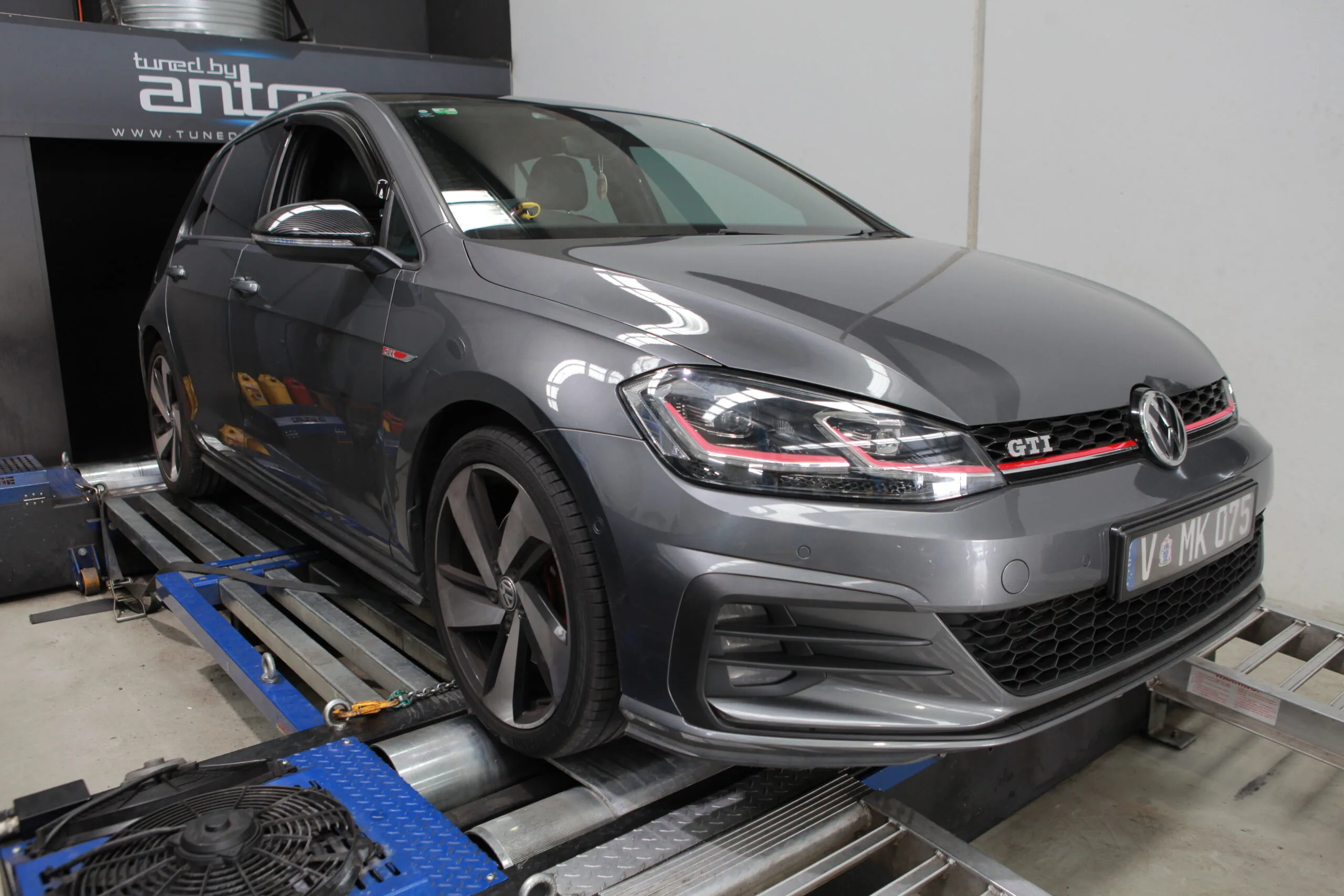

This Volkswagen Golf GTI MK7 was tuned on our Mainline AWD dyno. All results here come from dyno tuning in Melbourne at our Epping workshop.
Other Volkswagen Golf GTI MK7 results.
Stage 2 tune
Power & torque · stock vs tuned.
Power
Stock
143kW
→
Tuned
168kW
+25 kW (34 hp) at the hubs+17%
Torque
Stock
308Nm
→
Tuned
409Nm
+101 Nm (74 lb·ft) at the hubs+33%

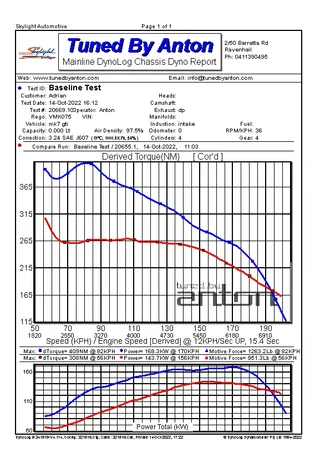

⌁Dyno graph · Pull recorded on the Mainline AWD
Hardware
Modifications.
3 categories · Stage 2 build
- ·Intake
- ·Down Pipe
- ·Ignition Upgrade
Calibration
ECU improvements.
Factory
- ·Improved Power
- ·Improved Torque
- ·Disable Brake Intervention
- ·Exhaust Burbles/Pops
- ·Increased Clutch Line Pressure
- ·Optimized Shift Schedule
- ·Optimized Shifts
- ·Increased Clutch Torque Limits
- ·Imrpoved Gearshift Torque Reduction
- ·Disabled Auto Start/Stop
- ·Disabled Motor Sound
- ·Improved Thermal Dynamics
