Stage 2Factory

Volkswagen Passat R

Tuned · 03 Apr 22
Bay 02 · Mainline AWD

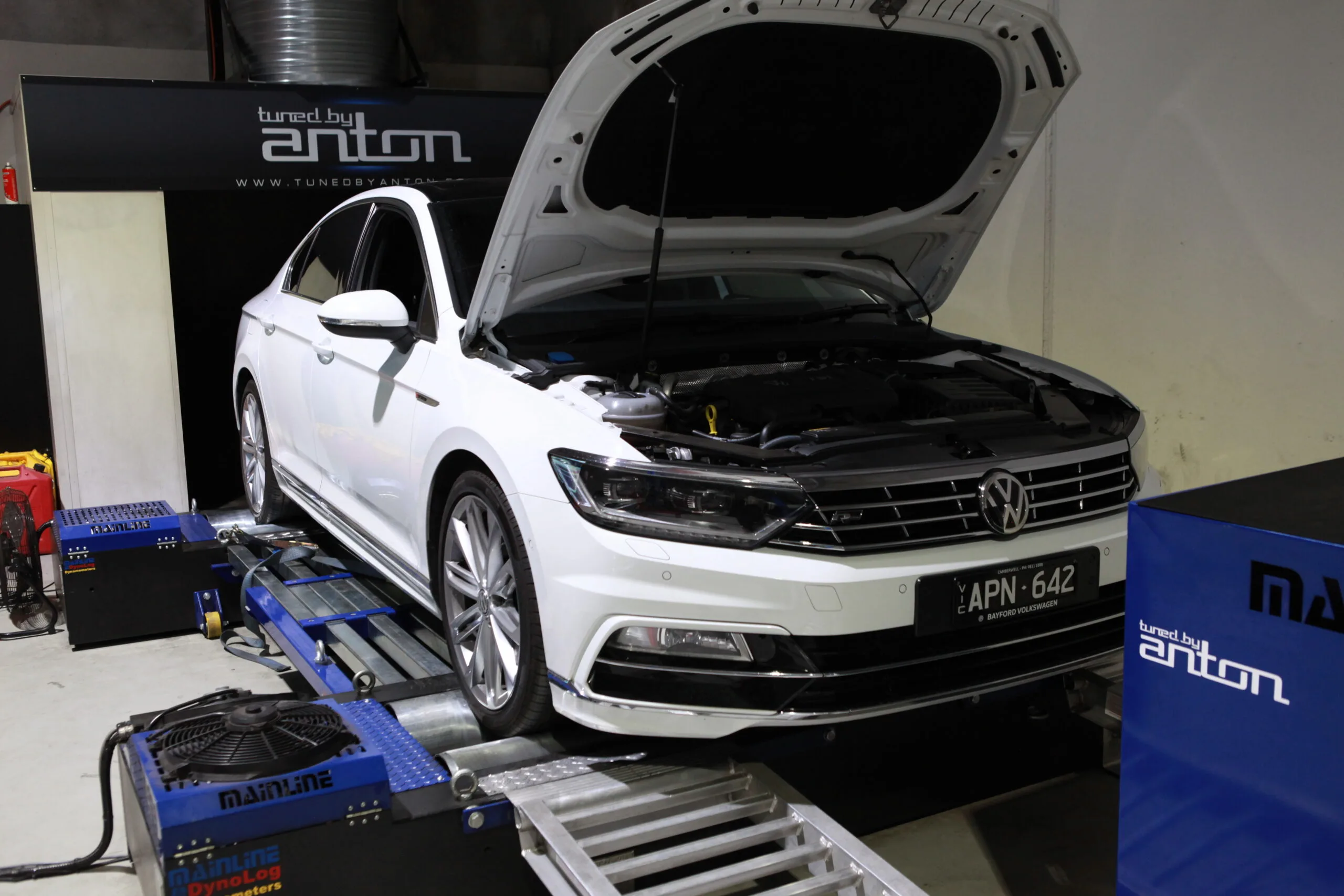

[ On the dyno ]Volkswagen Passat R — On the dyno
[ Engine bay ]
EA888

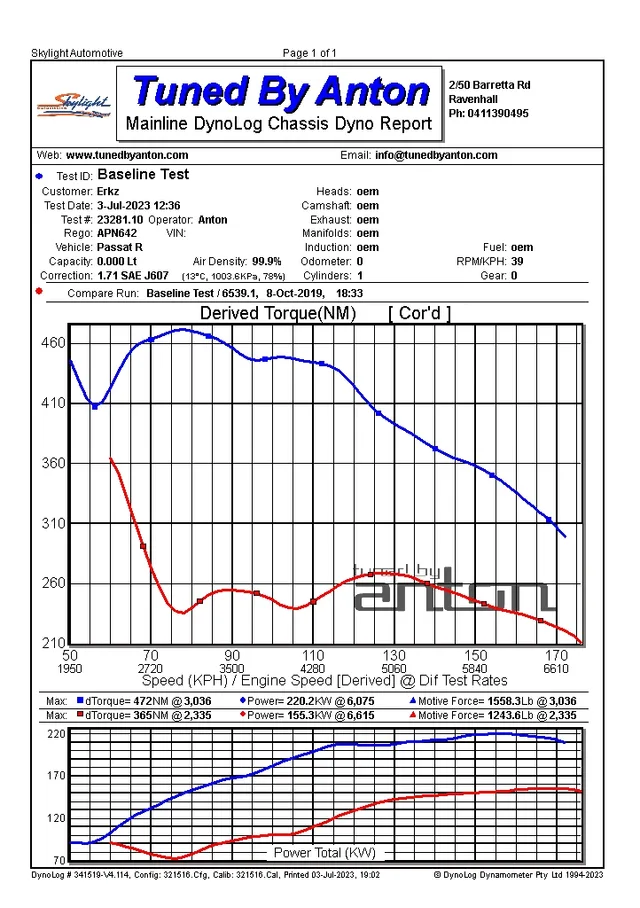

[ Dyno screen ]Volkswagen Passat R — Dyno screen
— Vehicle details

Spec sheet.

SeriesR
Yeartpa4y8y1zajvsrr6orqpi3uc
EngineEA888
Fuel98 RON
ECUFactory
Drivetrain4WD
— Notes from the tuner

What we did.

Our stage 2 package for the Passat R features various upgrades, such as a downpipe, intake, intercooler, and our custom stage 2 engine and transmission calibration. With these enhancements, you can enjoy additional benefits like sport mode burbles, a smoother and more responsive accelerator, improved braking performance through brake boosting, enhanced thermal dynamics, high torque output, and the inclusion of OEM flex and MPI functionality.

The transmission has been enhanced to include both normal and sports mode shifting, which has been specifically optimized to prevent engine under/over speeding. The clutch clamping force has been increased, and the torque limiters have been fine-tuned to accommodate the new torque levels. As a result, the shift speed also has been significantly improved.

#volkswagen #passat #golf #ea888 #dq250 #dq381 #tunedbyanton

Anton Krstic · Lead tuner · Bay 02
Stage 2 tune

Power & torque · stock vs tuned.

Hubs · SAE J1349 · Median of 3 pulls
Power
Stock
155kW
Tuned
220kW
+65 kW (87 hp) at the hubs+42%
Torque
Stock
365Nm
Tuned
472Nm
+107 Nm (79 lb·ft) at the hubs+29%
— Hardware

Modifications.

1 category · Stage 2 build
  • ·Down Pipe
— Calibration

ECU improvements.

Factory
  • ·Improved Power
  • ·Improved Torque
  • ·Exhaust Burbles/Pops
  • ·Increased Clutch Line Pressure
  • ·Optimized Shift Schedule
  • ·Optimized Shifts
  • ·Increased Clutch Torque Limits
