Stage 1Factory
VW Golf MK7.5R Stage 1
Tuned · 16 Feb 25
Bay 02 · Mainline AWD
Bay 02 · Mainline AWD

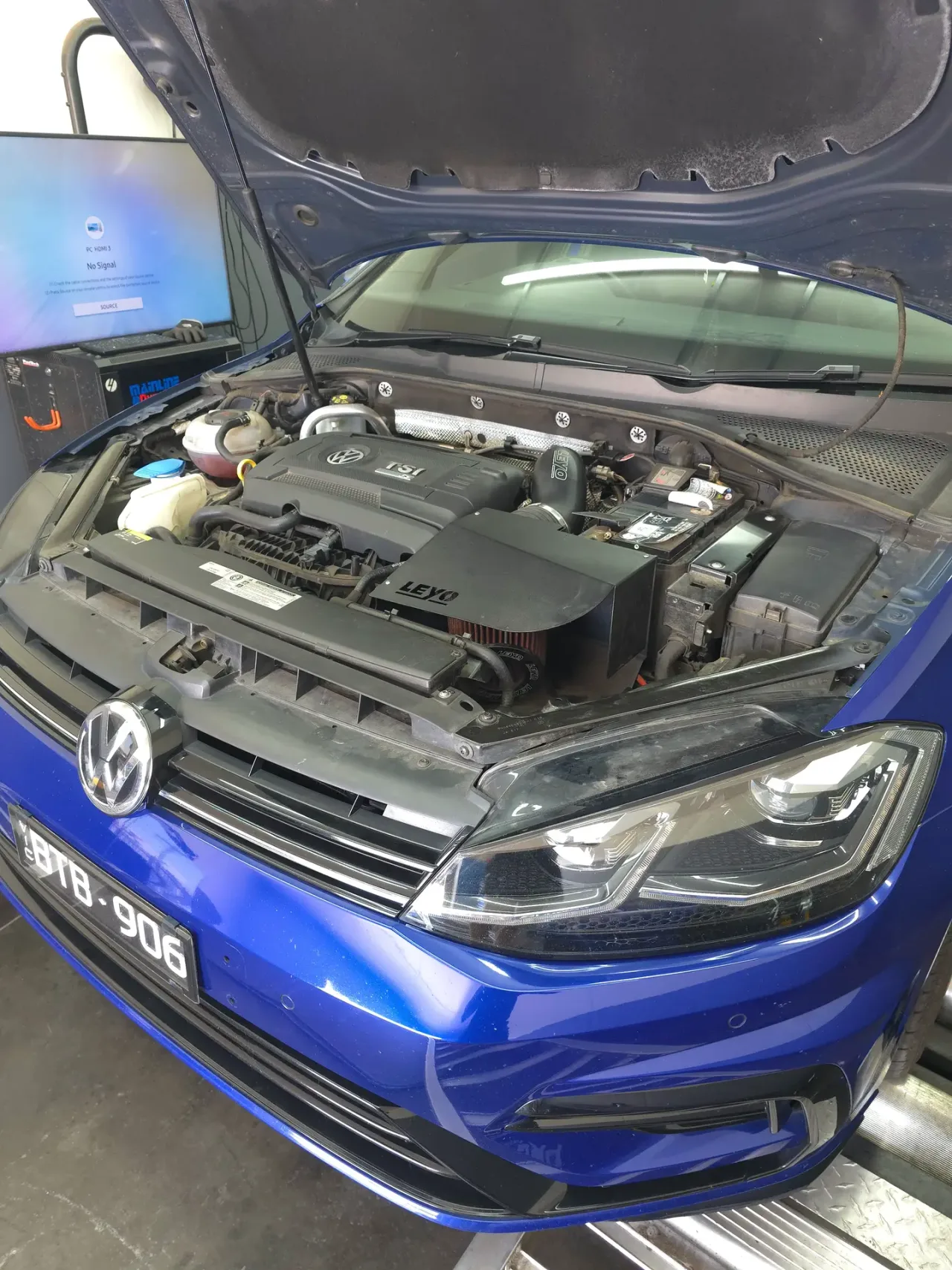

[ On the dyno ]
[ Engine bay ]
EA888
[ Dyno screen ]
— Vehicle details
Spec sheet.
ModelGolf
SeriesMK7
Yearb7stpjm9u4aqity1cgbzw9r7
EngineEA888
Fuel98 RON
ECUFactory
Drivetrain4WD
— Notes from the tuner
What we did.
MK7.5R Golf equipped with a Leyo air intake & Xforce downpipe & catback system.
Power output is limited by the stock charge air cooler, once again highlighting why we always recommend upgrading the intercooler alongside the downpipe as a first step. This combination maximizes power gains and consistency.
Results:Torque: 387Nm → 411Nm (+24Nm)Power: 179kW → 197kW (+18kW)
#tunedbyanton #vw #golf #tuning
Anton Krstic · Lead tuner · Bay 02
— Stage 1 tune
Power & torque · stock vs tuned.
— Power
Stock
178kW
→
Tuned
197kW
+19 kW (25 hp) at the hubs+11%
— Torque
Stock
387Nm
→
Tuned
411Nm
+24 Nm (18 lb·ft) at the hubs+6%

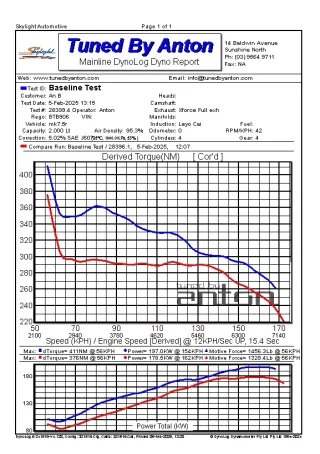

⌁Dyno graph · Pull recorded on the Mainline AWD
— Hardware
Modifications.
3 categories · Stage 1 build
- ·Intake
- ·Exhaust
- ·Down Pipe
— Calibration
ECU improvements.
Factory
- ·Increased Engine Response
- ·Improved Fuel Efficiency
- ·Improved Power
- ·Improved Torque
- ·Increased Throttle Response
- ·Disable Brake Intervention
