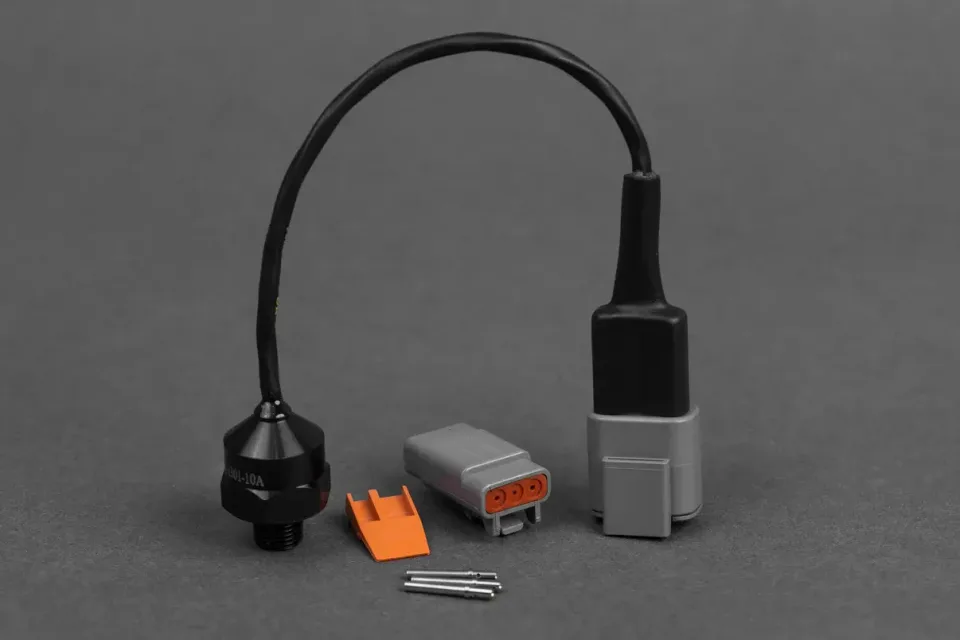

Emtron 4.0 BAR MAP SENSOR KIT

The Emtron 4.0 Bar MAP Sensor is a state-of-the-art, high temperature, media resistant absolute pressure sensor. It is highly accurate, providing an analog output signal proportional to the pressure applied.

Features:

• Genuine NXP Pressure Sensor
• Pressure Range: 20kPa to 400kPa
• Max Supply Voltage: 4.70 to 5.30 Volts DC
• Output Type: Amplified, Ratiometric 0.0V - 5.0V
• Current Supply 6.0mA
• Protective Silicone Gel prevents sensor damage from airborne contaminates like oil, petrol and methanol
• Fully calibrated and temperature compensated from -40 DegC to +125 DegC
• Response time 1ms
• Media Type: Air
• Compact Design
• Stainless Steel 303 body for durability then coated in black nickel for superior abrasion resistance
• 1/8 NPT Thread
• DTM 3 Way Connector(mating end also supplied)
• Fully potted for a waterproof seal and resistance to shock and vibration
