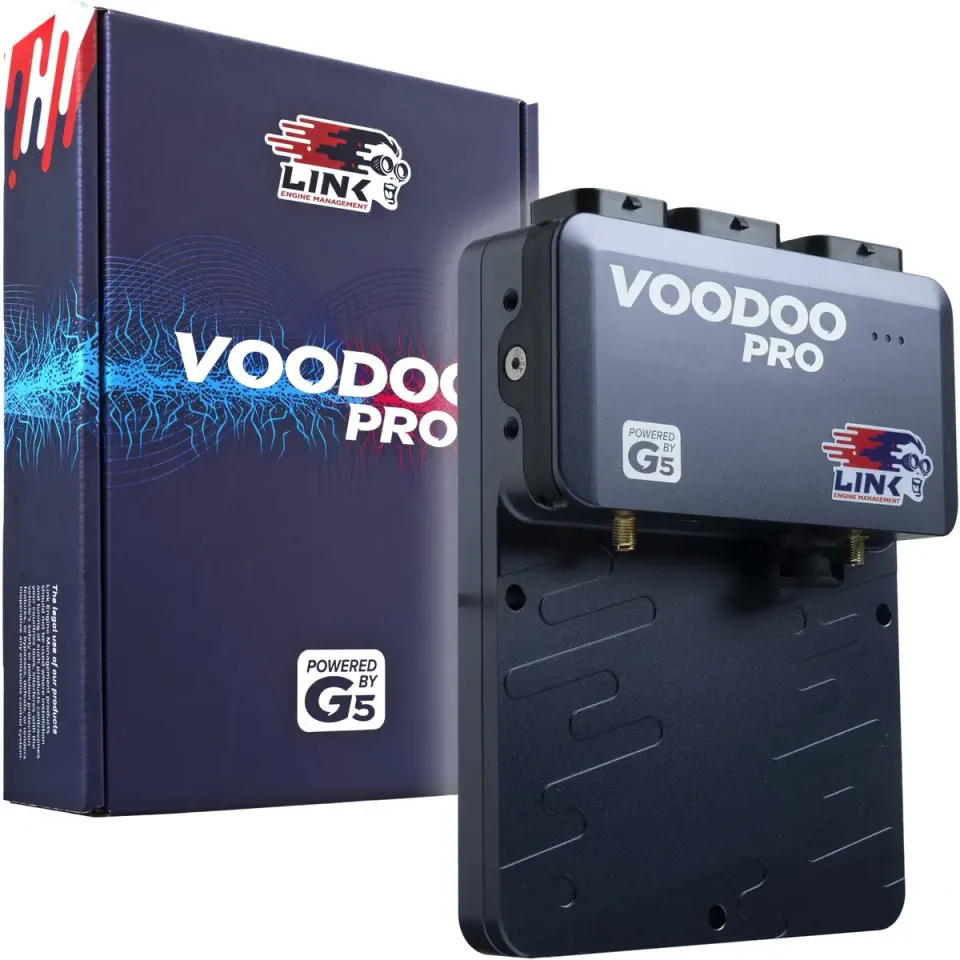

G5 Voodoo Pro puts real magic in your hands and opens a new world of possibilities with the ability to control port plus direct injection, more injector and ignition drives, advanced communications and many more features.
With 12 Injection, 8 Ignition and 4 multi-purpose (inj, ign, aux) drives (24 total) the G5 Voodoo Pro can run up to:
- Twelve cylinders or six rotors with sequential injection and direct spark, or
- Eight cylinders with staged injection and direct spark.
Key Features:
- Control up to 12 cylinders sequentially with 12 Injection, 8 Ignition and 4 multi-purpose (inj, ign, aux) drives (24 total)
- DI Features, including DI Pump Control (using an external OEM or aftermarket driver box
- Make use of unused Injector/Ignition pins to give access to up to 30 auxiliary pins
- 14 analogue / 10 digital inputs
- Dual microcontrollers: one controlling the ECU, one controlling comms
- Built-in Global Positioning System (GPS) up to 50Hz, with logging
- Built-in WiFi, with real-time PC Link connection
- Dual lambda sensor control (on-board wideband)
- Dual E-throttle, with custom H-bridge control (Drive by Wire)
- Dual Knock Control
In the box:
- G5 Voodoo Pro ECU
- USB-C Connection Cable
- WiFi Antenna
- 4m GPS Antenna (Magnetic or Adhesive Mount)
- USB-C and SMA Dust Covers
- QuickStart Guide (A5)
- Installer I/O table (A3)
- Link stickers
The G5 Voodoo Pro is the perfect choice for professional level motorsport.
