Link ECU - Link CAN Keypad 15 Button + 2 Rotary Encoders

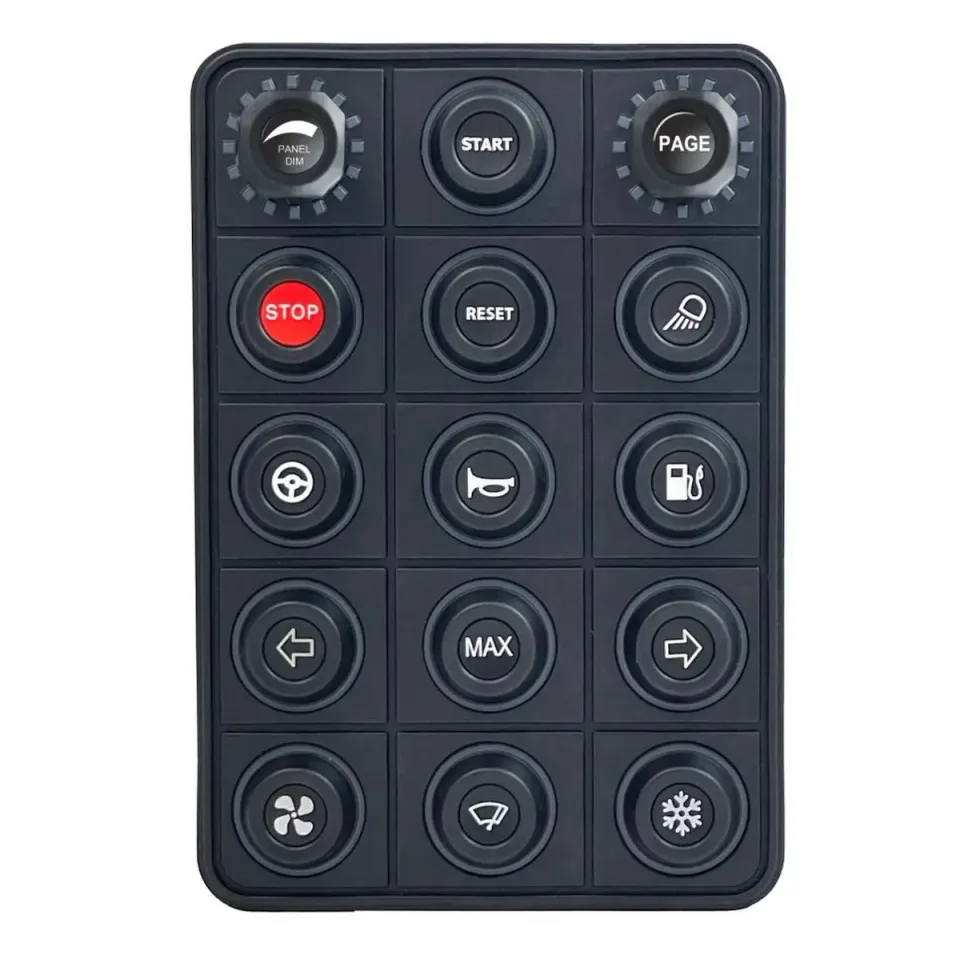

Rugged 15 button CAN Keypad with interchangeable 15mm inserts (sold separately). Two rotary encoders with 16 Blue indicator LEDs each. Four additional analog inputs allow additional sensors/switches to directly connect to the CAN Bus network through the keypad. The compact layout and inclusion of the rotary encoders and analog inputs allow for significant dash space saving while massively expanding functionality.

Box Contents:1 x 15 Button CAN Keypad1 x DTM4 Mating Connector Kit

1 x Molex Mating Connector Kit1 x Link Sticker1 x Keypad Button Insert – Link Logo

Note: Keypad ships with empty button inserts, inserts need to be selected and purchased individually. 1 x Link ECU Logo Button Insert included in box loose.

• 15 Buttons and 2 Rotary Encoders (push enabled, buttonscan function independent to rotary encoder)
• 4 Analog Inputs for additional Sensors or Switches
• CAN Configurable with G4X/G5 PC Link – Change buttonLED backlight colour, individual button indicator ringcolour, programmable to show change in status, flashingoption, multiple modes including momentary, latchedand toggle.
• CAN Bus Communication back to Engine ManagementSystem/PDM
• 16 Blue LED Lights on Rotary Encoders while all 13Pushbuttons Buttons have customisable RGB LED Rings
• Compatible with all Link G4X and G5 ECUs
• Customizable Button Inserts – The replacement systemfor individual inserts makes modifying the keypad layoutsimple and economical
• DTM4 Connector for CAN and Power, Molex Connectorfor Analogue Inputs

Specifications

Connector - DTM4 Connector for CAN and Power (Black = Ground, Red = Power, White = CAN High, Blue = CAN Low) + Molex 39-01-3069Switch Life - 3 million operationsDefault Baud Rate - 1000kbit/sChemical Resistance - Deet, Engine Cleaner, Isopropyl Alcohol, Suntan Lotion, Multi-Purpose Cleaner, Orange Citrus Cleaner, Muriatic AcidUV Protection - UVB 400 hoursSalt Spray Per - ASTMB117

Weight - 360grams

Dimensions - 105 x 152.5 x 16.3mm (excl mounting studs)
