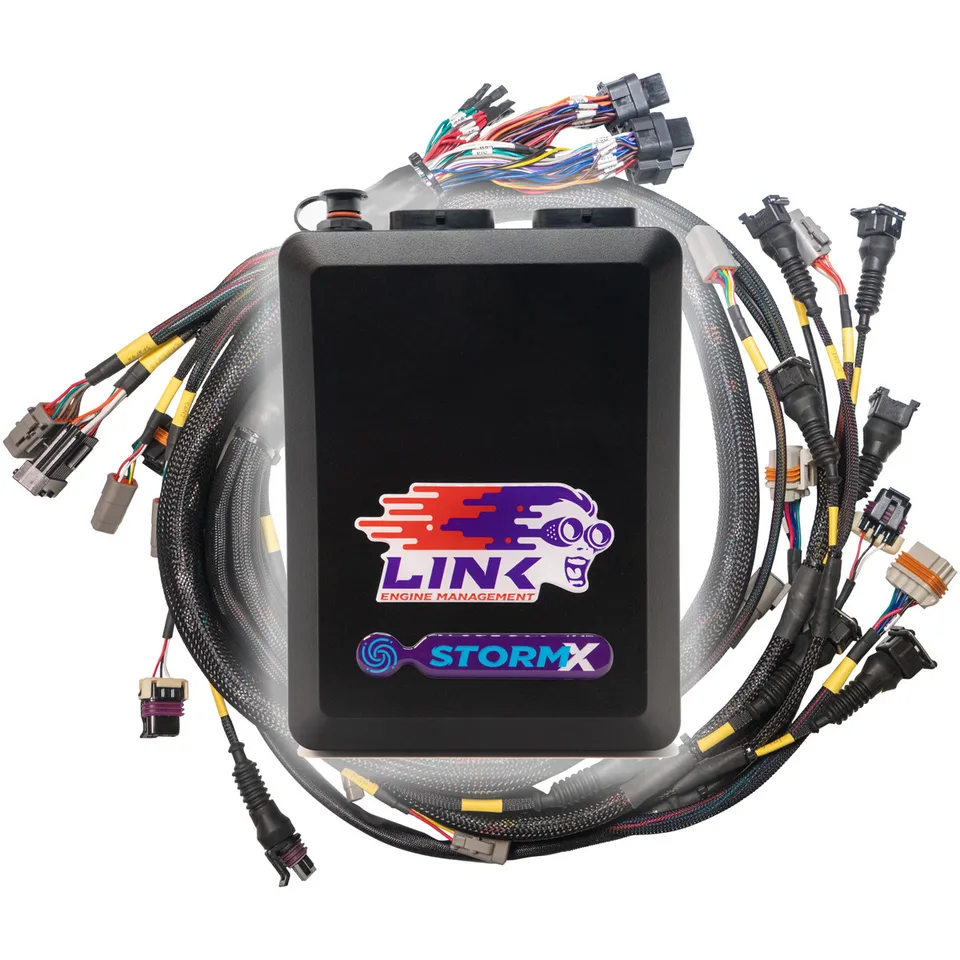

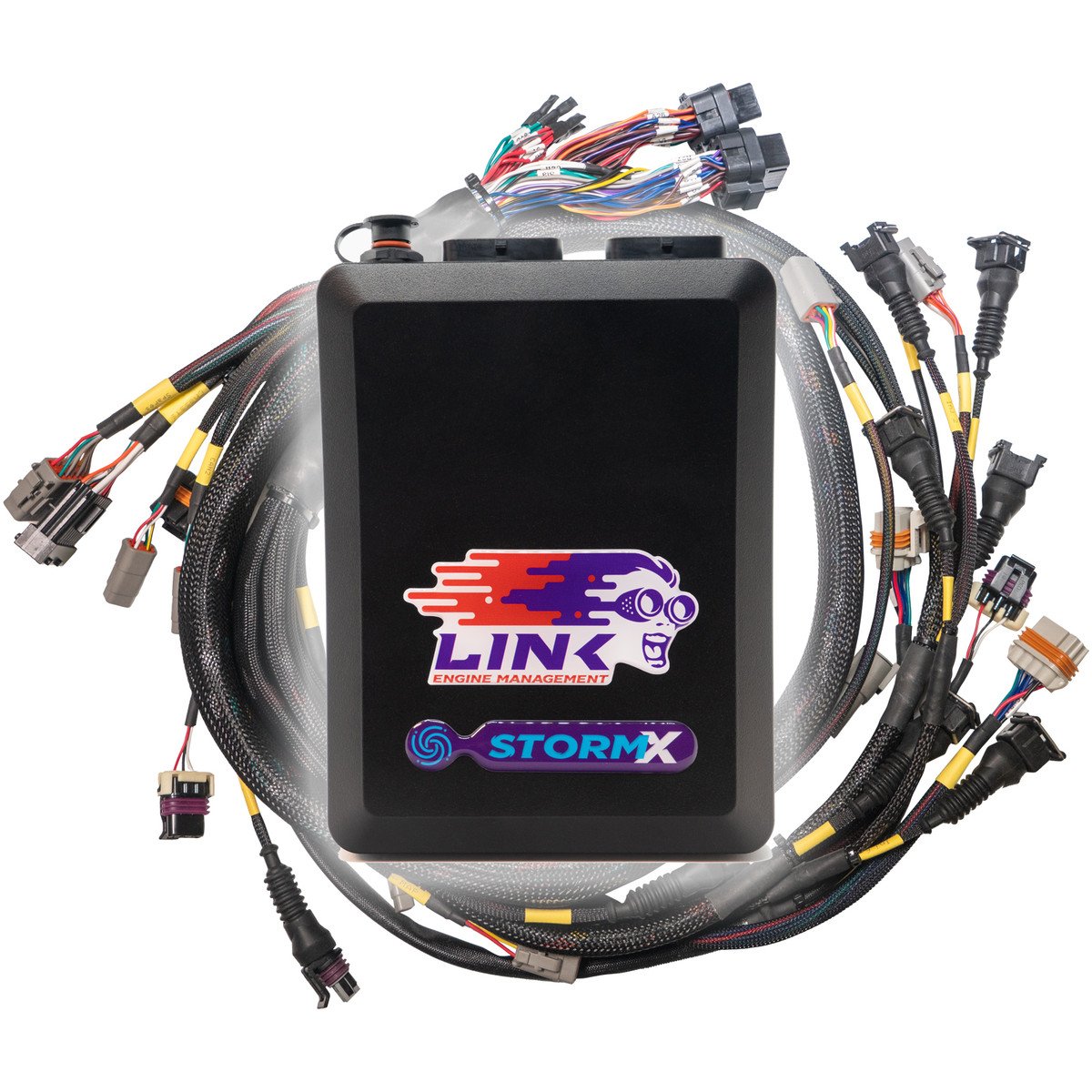

LinkECU G4X StormX ECU + Terminated LS Engine Harness Drive-by-Cable Bundle
In Stock
Price on enquiry
- Please note: the LS Harness and Bundle packages are available right now in the United States, and can be pre-ordered in other regions (with delivery in 6-8 weeks).
- SKU
- 108-9000B
- Weight
- 500 kg
- Category
- ECU
The quickest, easiest, tidiest and most cost effective way to connect a Link ECU to your Drive-by-Cable LS V8 engine.
Bundle Includes:
- G4X StormX ECU (8 x Injector and 8 x Ignition Drives)
- Terminated Engine Harness GM LS GEN3/4*
- LS Stepper Adapter Harness
*Notes for use with Gen 4 Engines
- A cam sensor harness extension will be needed to accommodate the Gen 4 LS front mounted cam sensor.
- A small modification is required to the crank sensor connector. See “crank connector” section in installation manual for details.
- Injector Connector Adapters to USCar connector will be required for most Gen 4 Engines. Check your injector connector to confirm. Use Link PN 101-0287
- To support Gen 4 factory knock sensors you will require the Link LS Gen 4 Knock Adapter Loom (PN 101-0306)
- To support the factory Gen 4 MAP sensor you will require a Link LS Map Adapter Loom plus a Gen 3 to Gen 4 MAP sensor extension harness (alternatively you can use a Link MAP sensor which is directly supported by the harness)
