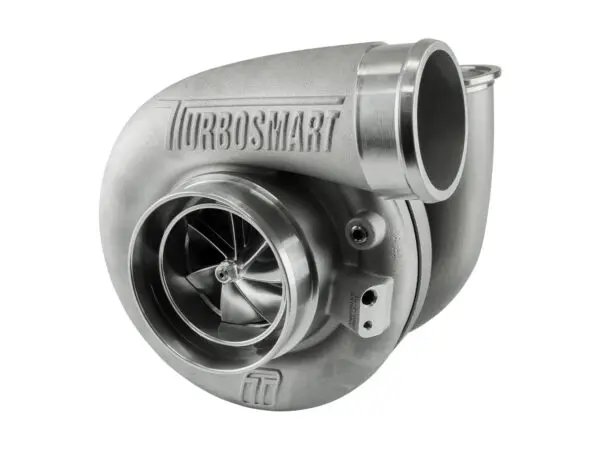

Turbosmart TS-1 Performance Turbocharger 7880 V-Band 1.24AR Externally Wastegated
The TS-1 Performance Turbocharger 7880 features a 1.24 A/R V-Band housing and external wastegate setup, engineered for high-flow, high-horsepower performance applications.
- SKU
- TS-1-7880C-VB124E
- Category
- Turbocharger
FeaturesUnparalleled transient responseAggressive aerodynamics with 7+7 2618 Aluminium splitter wheelsLightweight 310s stainless steel investment cast turbine housingsLightweight, Aluminium compressor coversCFD driven designed housings for optimal A/Rs and flow713C Inconel turbine wheel for extreme EGT’sVSR speed balancedProprietary dual ceramic bearing systemIntegrated Iron backplate on center housing
SpecificationsCompressor Inlet: 4″ / 101.6mmCompressor Inducer: 78mmTurbine Inlet: V-Band (3.00″)Turbine Exducer: 80mmTurbine AR: 1.24Turbine Outlet: V-Band (3.50″)Weight: 9.63kg / 21.23bsHorsepower Rating: 1140-1350HP
Turbosmart’s turbocharger series is engineered to be smaller, lighter, and faster, using advanced materials, precision design, and modern manufacturing to deliver high-performance solutions for both motorsport and performance street applications. Each turbocharger includes everything needed for installation—weld flanges, V-band clamps, gaskets, and oil fittings—making it a complete, ready-to-install package.
The TS-1 series features oil-cooled, lightweight investment cast turbine housings and a proprietary bearing and main shaft design that delivers ultra-responsive boost and high power at lower shaft speeds. Aggressive compressor aerodynamics and a unique turbine wheel ensure sustained flow and performance under high loads. Designed with an end-to-end engine approach, Turbosmart turbos reduce back pressure, improve spool time, and outperform larger, heavier alternatives—setting a new standard in turbocharger technology.
