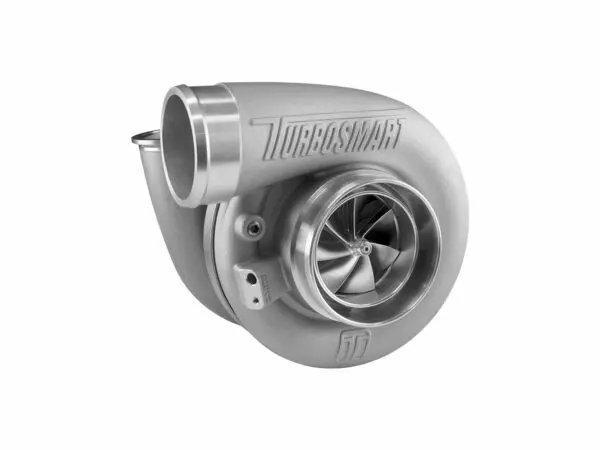

Turbosmart TS-1 Performance Turbocharger 7880 V-Band Reverse Rotation 0.96AR Externally Wastegated
The Turbosmart TS-1 7880 Performance Turbocharger features a reverse rotation design, 0.96 A/R externally wastegated V-band housing, 78mm compressor inducer, 80mm turbine exducer, and delivers 1140–1350 HP with lightweight construction and race-proven materials for exceptional power, response, and reliability.
- SKU
- TS-1-7880C-VR096E
- Category
- Turbocharger
FeaturesUnparalleled transient responseAggressive aerodynamics with 7+7 2618 Aluminium splitter wheelsLightweight 310s stainless steel investment cast turbine housingsLightweight, Aluminium compressor coversCFD driven designed housings for optimal AR’s and flow713C Inconel turbine wheel for extreme EGT’sVSR speed balancedProprietary dual ceramic bearing systemIntegrated Iron backplate on center housing
SpecificationsCompressor Inlet: 4″ / 101.6mmCompressor Inducer: 78mmTurbine Inlet: V-Band (3.00″)Turbine Exducer: 80mmTurbine AR: 0.96Turbine Outlet: V-Band (3.50″)Weight: 9.63kg / 21.23bsHorsepower Rating: 1140-1350HP
Turbosmart’s turbocharger series is engineered to be smaller, lighter, and faster, using advanced materials, precision design, and modern manufacturing to deliver high-performance solutions for both motorsport and performance street applications. Each turbocharger includes everything needed for installation—weld flanges, V-band clamps, gaskets, and oil fittings—making it a complete, ready-to-install package. The TS-1 series features oil-cooled, lightweight investment cast turbine housings and a proprietary bearing and main shaft design that delivers ultra-responsive boost and high power at lower shaft speeds. Aggressive compressor aerodynamics and a unique turbine wheel ensure sustained flow and performance under high loads. Designed with an end-to-end engine approach, Turbosmart turbos reduce back pressure, improve spool time, and outperform larger, heavier alternatives—setting a new standard in turbocharger technology.
