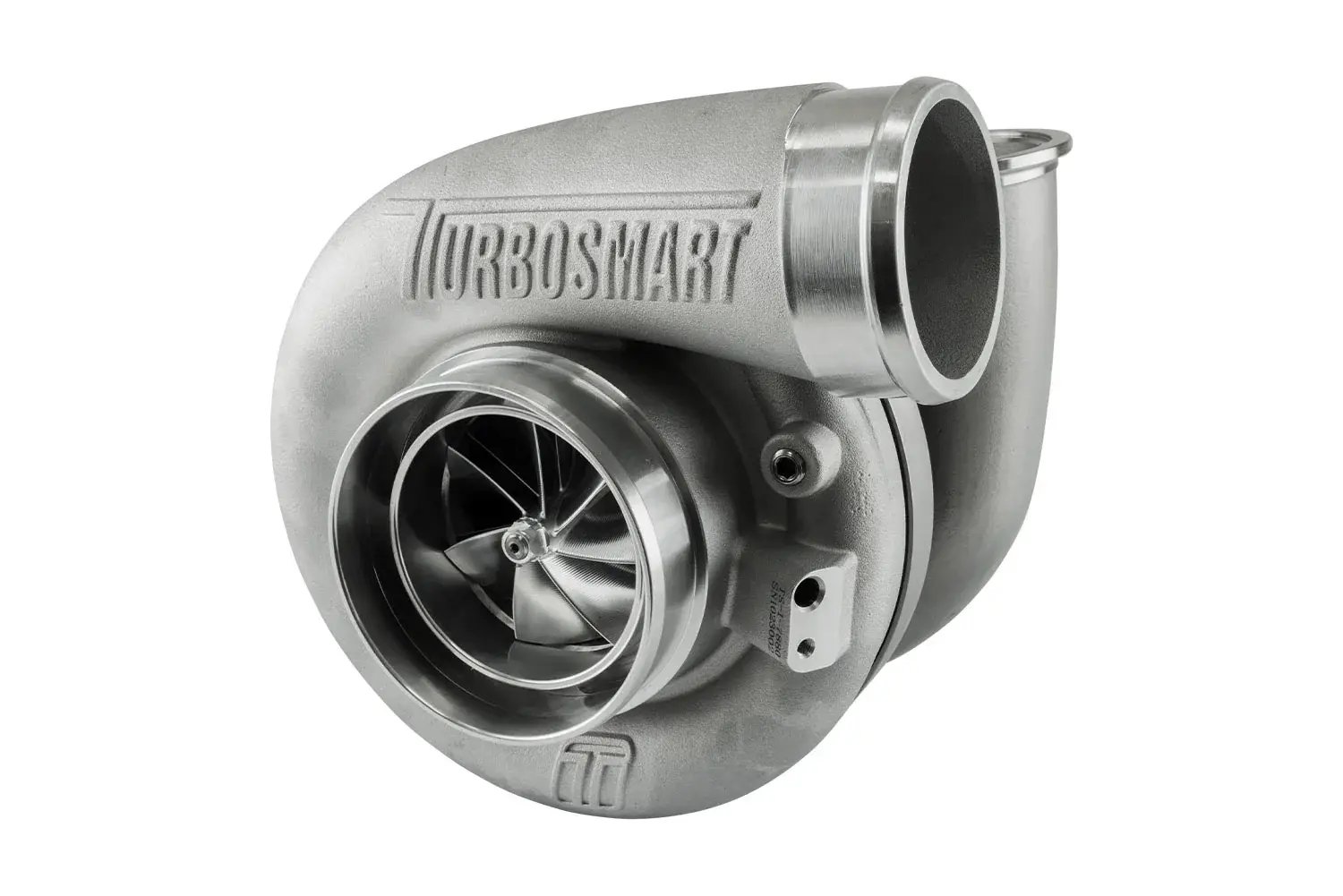

Turbosmart TS-1 Performance Turbocharger 8280 V-Band 0.96AR Externally Wastegated
The TS-1 8280 Performance Turbocharger features a 0.96 A/R turbine housing, V-band flanges, and an externally wastegated design, delivering massive airflow and high-efficiency boost for extreme performance builds.
- SKU
- TS-1-8280C-VB096E
- Category
- Turbocharger
FeaturesUnparalleled transient responseAggressive aerodynamics with 7+7 2618 Aluminium splitter wheelsLightweight 310s stainless steel investment cast turbine housingsLightweight, Aluminium compressor coversCFD driven designed housings for optimal AR’s and flow713C Inconel turbine wheel for extreme EGT’sVSR speed balancedProprietary dual ceramic bearing systemIntegrated Iron backplate on center housing
SpecificationsCompressor Inlet: 4″ / 101.6mmCompressor Inducer: 82mmTurbine Inlet: V-Band (3.00″)Turbine Exducer: 80mmTurbine AR: 0.96Turbine Outlet: V-Band (3.50″)Weight: 9.63kg / 21.23bsHorsepower Rating: 1225-1445HP
Turbosmart’s turbocharger series is engineered to be smaller, lighter, and faster, using advanced materials, precision design, and modern manufacturing to deliver high-performance solutions for both motorsport and performance street applications. Each turbocharger includes everything needed for installation—weld flanges, V-band clamps, gaskets, and oil fittings—making it a complete, ready-to-install package. The TS-1 series features oil-cooled, lightweight investment cast turbine housings and a proprietary bearing and main shaft design that delivers ultra-responsive boost and high power at lower shaft speeds. Aggressive compressor aerodynamics and a unique turbine wheel ensure sustained flow and performance under high loads. Designed with an end-to-end engine approach, Turbosmart turbos reduce back pressure, improve spool time, and outperform larger, heavier alternatives—setting a new standard in turbocharger technology.
