BMW 140i Stage 2 BM3
Tuned · 10 Dec 23
Bay 02 · Mainline AWD
Bay 02 · Mainline AWD

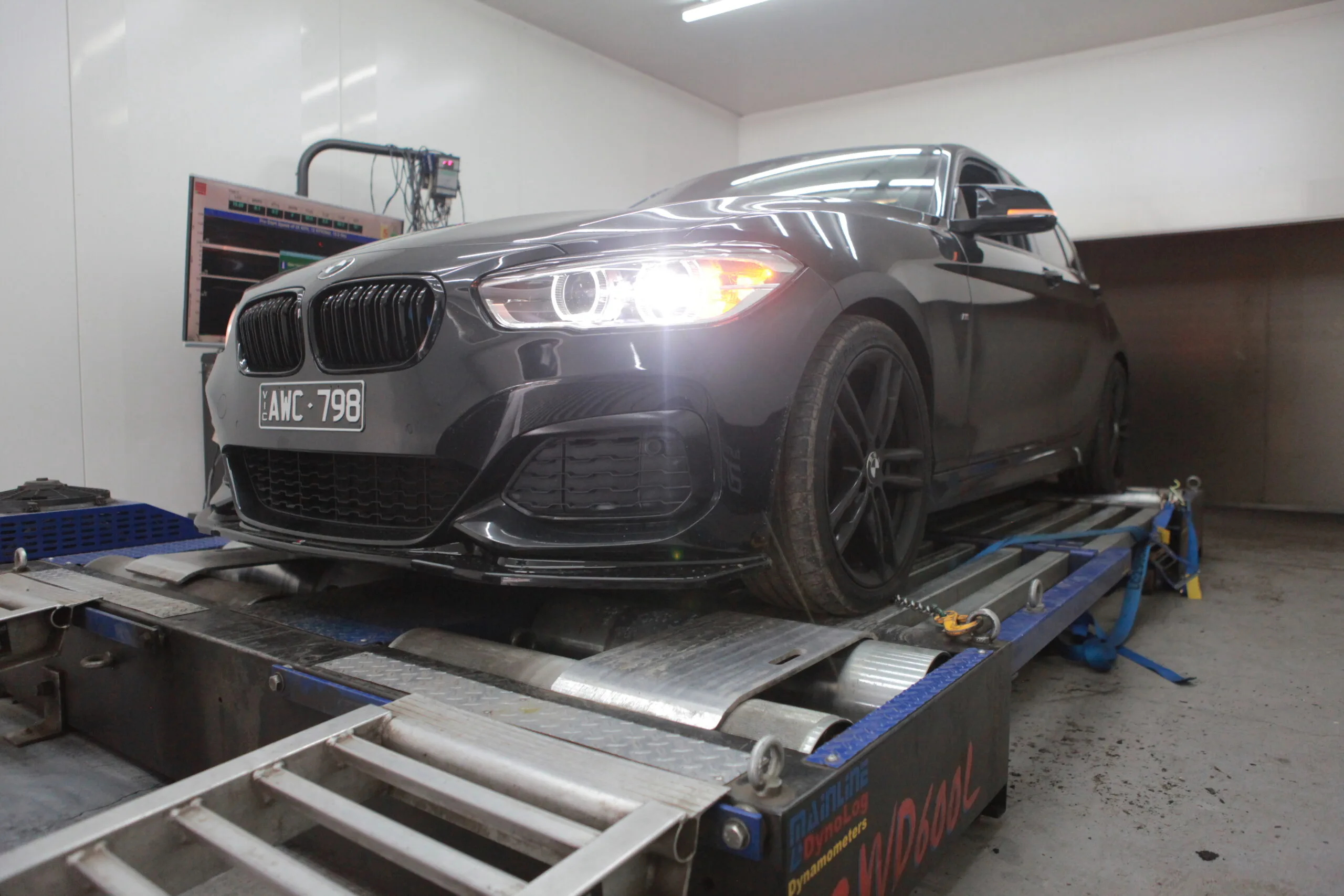

[ On the dyno ]
[ Dyno screen ]
Notes from the tuner
What we did.
BMW 140i equipped with a VRSF downpipe and MST intake has been tuned using the Bootmod interface, allowing for map switching to achieve a range of burbles. The power has been enhanced from 224kw to 274kw, with peak torque increasing from 459nm to 521nm.
#bmw #m140 #bm3 #bootmod #b58 #melbournetuning #vrsf #mst #tunedbyanton
Anton Krstic · Lead tuner · Bay 02
This BMW M140 F20 was tuned on our Mainline AWD dyno. See our Stage 2 | 2016-2019 BMW M140i F20 if you're after a fixed-price build. All results here come from dyno tuning in Melbourne at our Epping workshop.
Other BMW M140 F20 results.
Stage 2 tune
Power & torque · stock vs tuned.
Power
Stock
224kW
→
Tuned
274kW
+50 kW (67 hp) at the hubs+22%
Torque
Stock
459Nm
→
Tuned
521Nm
+62 Nm (46 lb·ft) at the hubs+14%

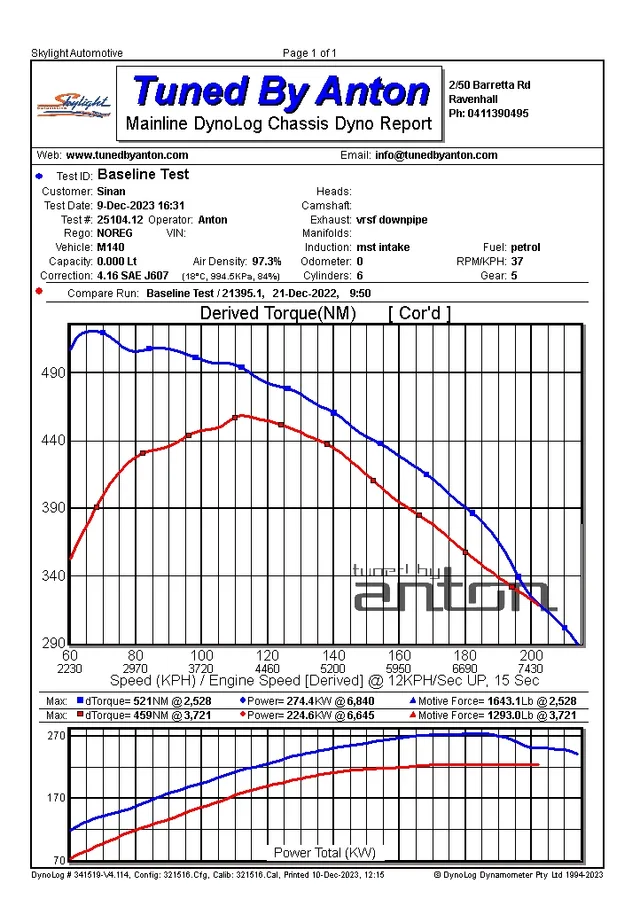

⌁Dyno graph · Pull recorded on the Mainline AWD
Hardware
Modifications.
2 categories · Stage 2 build
- ·Intake
- ·Down Pipe
Calibration
ECU improvements.
Factory
- ·Improved Fuel Efficiency
- ·Improved Power
- ·Improved Torque
