Stage 3Factory
BMW 335i E90 Stage 3
Tuned · 04 Apr 25
Bay 02 · Mainline AWD
Bay 02 · Mainline AWD

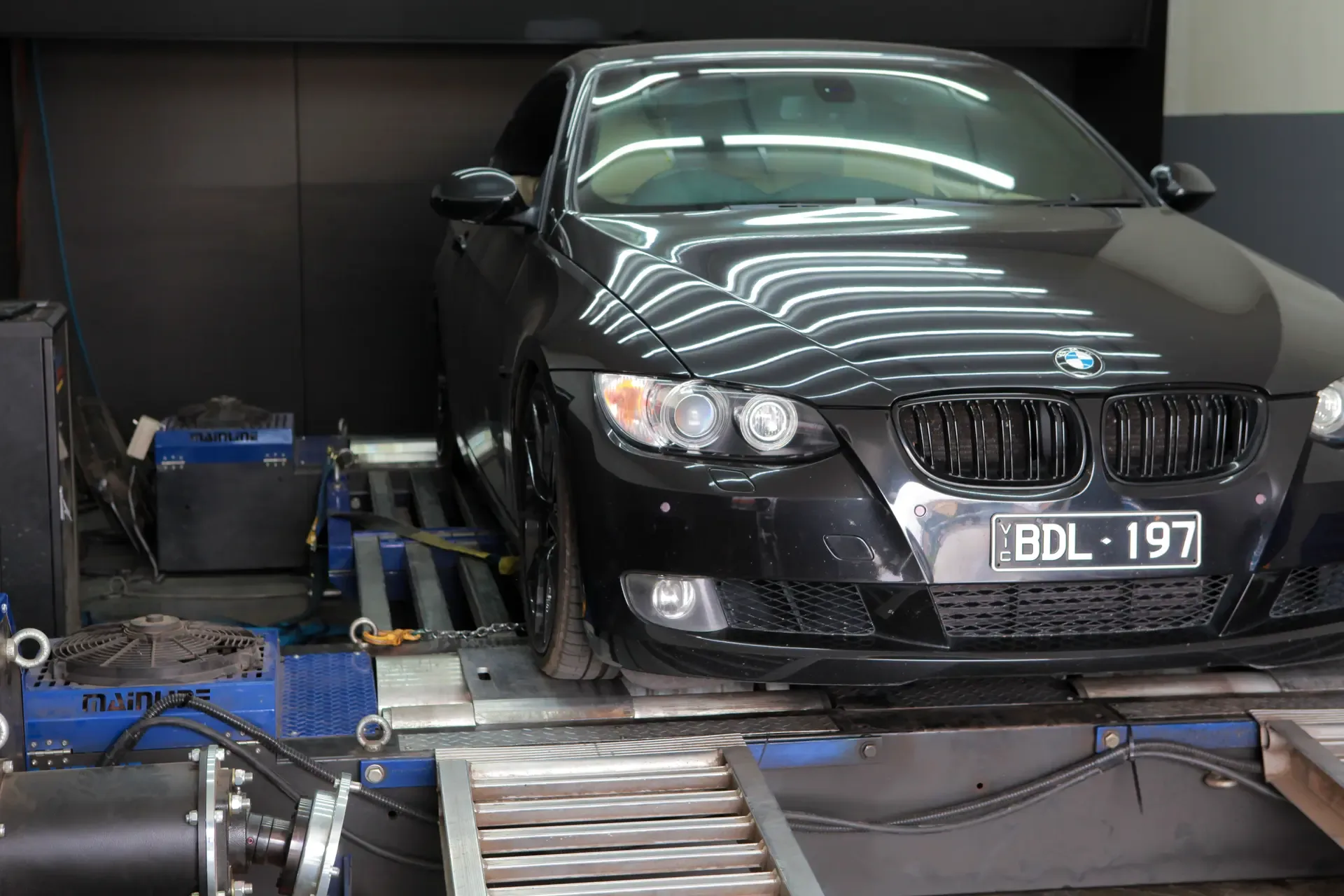

[ On the dyno ]

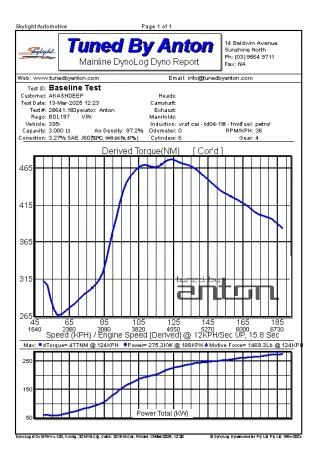

[ Dyno screen ]
Notes from the tuner
What we did.
Fresh off the rollers 275kW @ 17psi – custom ECU + TCU tune via @mhdtuning.
Built with:🔹 @vrsf intake + 3” catless downpipes🔹 @evolutionracewerks front mount intercooler🔹 Charge pipe + Tial BOV🔹 TD04-19T V3 11B billet twin turbos
Recommendation: If you're running TD04s, we strongly recommend upgrading to @turbosmart actuators before installing the turbos. Better boost control, better results.
Anton Krstic · Lead tuner · Bay 02
This BMW 335i E90 was tuned on our Mainline AWD dyno. All results here come from dyno tuning in Melbourne at our Epping workshop.
Other BMW 335i E90 results.
Stage 3 tune
Power & torque · stock vs tuned.
Power
Stock
198kW
→
Tuned
275kW
+77 kW (103 hp) at the hubs+39%
Torque
Stock
358Nm
→
Tuned
477Nm
+119 Nm (88 lb·ft) at the hubs+33%
⌁Dyno graph · Pull recorded on the Mainline AWD
Hardware
Modifications.
5 categories · Stage 3 build
- ·Intake
- ·Exhaust
- ·Down Pipe
- ·Intercooler
- ·Turbocharger
Calibration
ECU improvements.
Factory
- ·Improved Power
- ·Improved Torque
- ·Exhaust Burbles/Pops
