Stage 3Factory

Holden Commodore VZ L98 turbo

Tuned · 09 Sept 22
Bay 02 · Mainline AWD

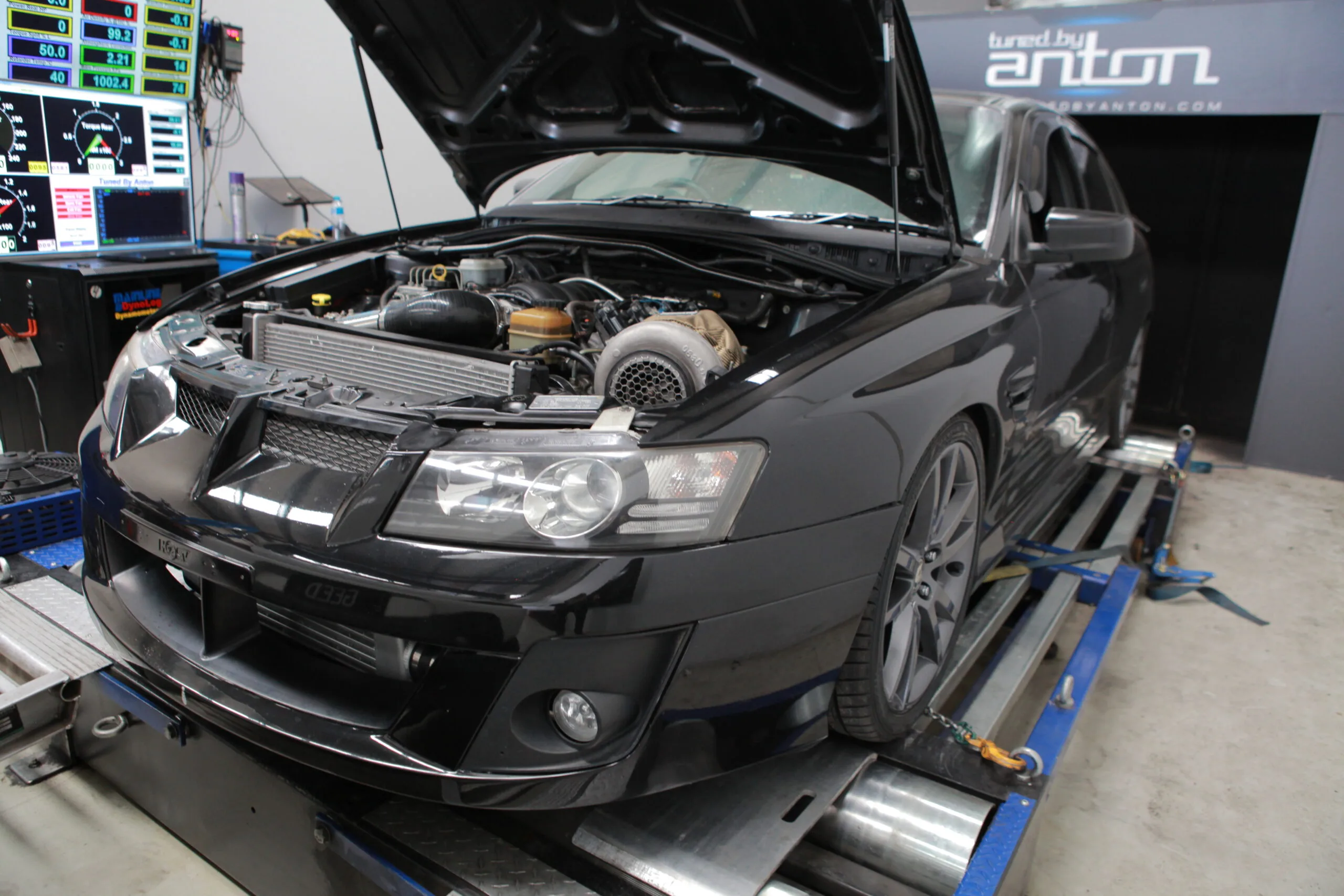

[ On the dyno ]Holden Commodore VZ L98 turbo: On the dyno
[ Dyno screen ]Holden Commodore VZ L98 turbo: Dyno screen
Vehicle details

Spec sheet.

MakeHolden
ModelCommodore
SeriesVZ
EngineL98
Fuel98 RON
ECUFactory
Drivetrain2WD
Notes from the tuner

What we did.

Stock L98 engine with a Borg Warner turbocharger. 525 fuel pump3.5in to 3in exhaust system, plazmaman 70mm fmic, 1000cc injector with 525lph pump on petrol producing 275kW on lowest possible boost.Automatic transmission remains stock hardware, simply remapped.

Anton Krstic · Lead tuner · Bay 02

This Holden Commodore VZ was tuned on our Mainline AWD dyno. All results here come from dyno tuning in Melbourne at our Epping workshop.

More on this platform

Other Holden Commodore VZ results.

Holden VZ Crewman 6.2 Harrop SuperchargerStage 3360 kW

Holden VZ Crewman 6.2 Harrop Supercharger

View result →
Holden VF SS Mafless TuneStage 2307 kW

Holden VF SS Mafless Tune

View result →
Holden VE SV6 Commodore TuneStage 1190 kW

Holden VE SV6 Commodore Tune

View result →
Stage 3 tune

Power & torque · stock vs tuned.

Hubs · SAE J1349 · Median of 3 pulls
Power
Stock
175kW
→
Tuned
275kW
+100 kW (134 hp) at the hubs+57%
Torque
Stock
408Nm
→
Tuned
570Nm
+162 Nm (119 lb·ft) at the hubs+40%

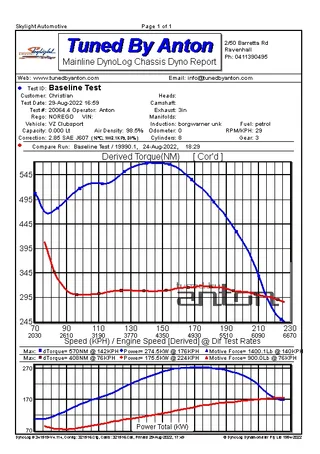

⌁Dyno graph · Pull recorded on the Mainline AWD
Download ↓
Hardware

Modifications.

7 categories · Stage 3 build
  • ·Intake
  • ·Exhaust
  • ·Down Pipe
  • ·Intercooler
  • ·Fuel System Upgrade
  • ·Turbocharger
  • ·Headers
Calibration

ECU improvements.

Factory
  • ·Improved Power
  • ·Improved Torque
  • ·Increased Clutch Line Pressure
