Holden Commodore ZB Stage 2

Tuned · 10 Aug 22
Bay 02 · Mainline AWD

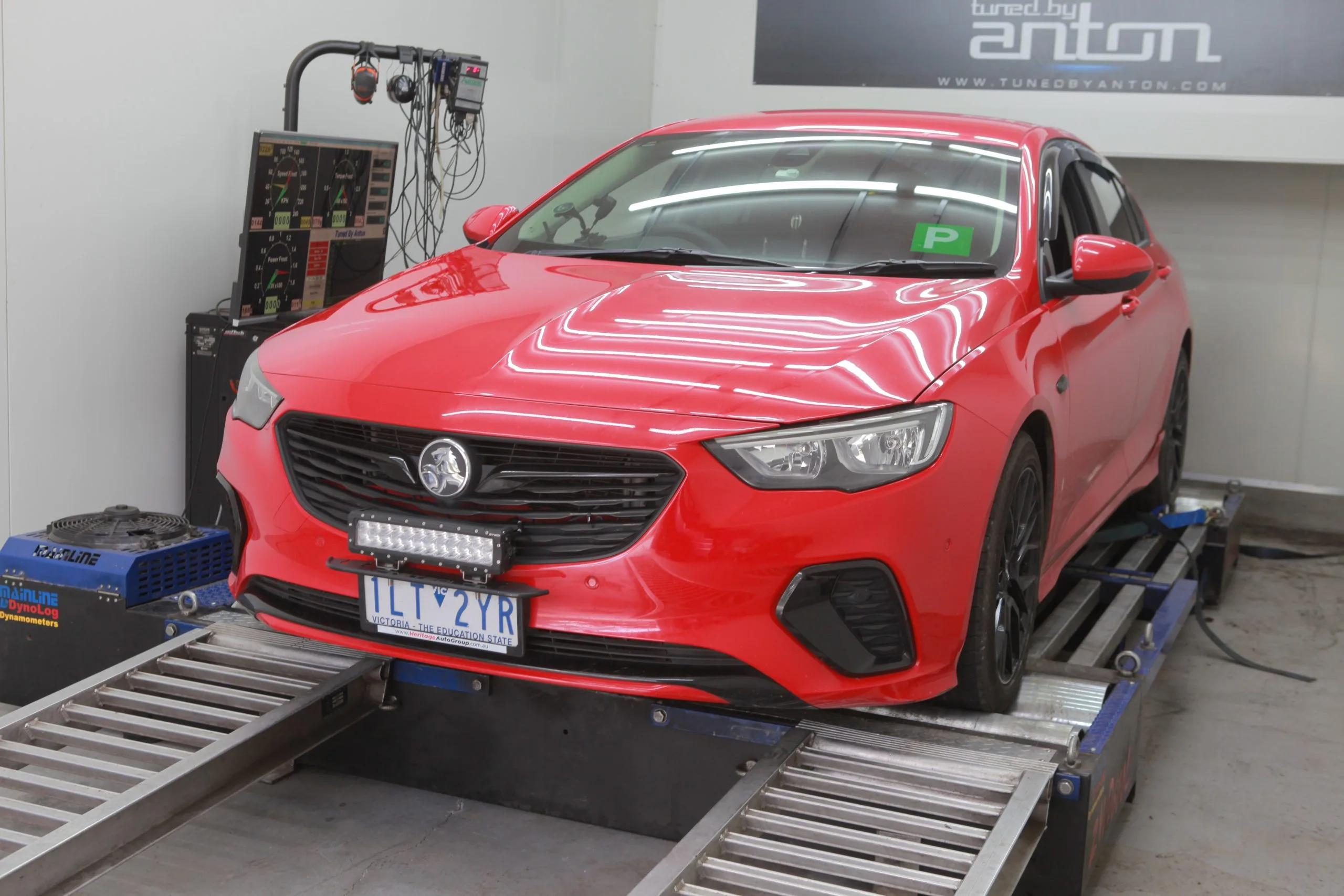

[ On the dyno ]Holden Commodore ZB Stage 2: On the dyno

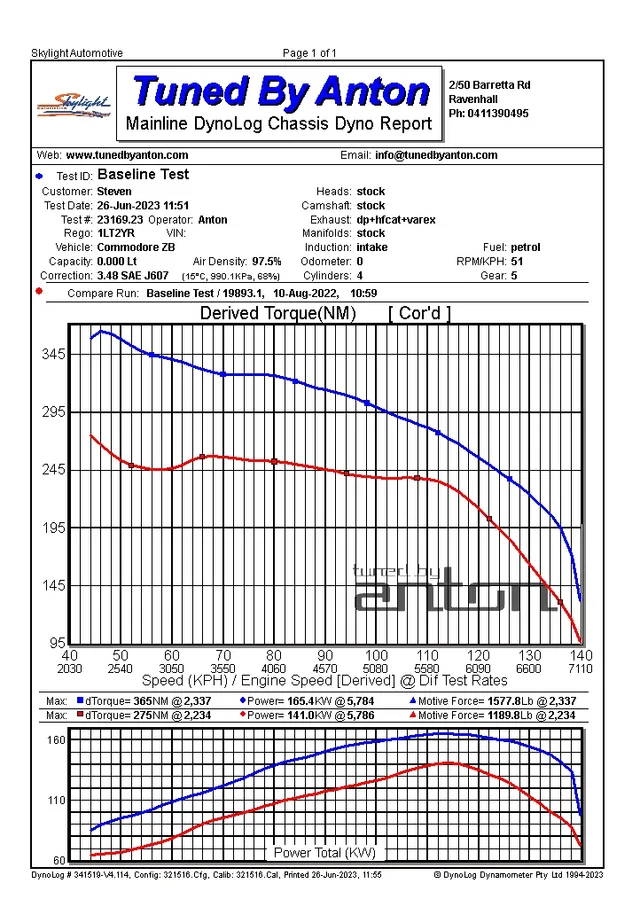

[ Dyno screen ]Holden Commodore ZB Stage 2: Dyno screen
Vehicle details

Spec sheet.

MakeHolden
ModelCommodore
SeriesZB
Fuel98 RON
ECUFactory
Drivetrain2WD
Notes from the tuner

What we did.

The Holden ZB Commodore has undergone significant enhancements, resulting in a remarkable increase of 33% in torque and a 17% boost in power across its entire rpm range. These improvements have been achieved through a series of modification enhancements, which include upgrading the intake system, installing a high-flow downpipe, using a more efficient catalytic converter, and integrating a Varex muffler. Additionally, the vehicle has been finely tuned with TBA stage 2 engine calibration. The combination of these enhancements elevates the ZB Commodore to new heights, enhancing both its performance and the overall driving experience.

#zb #commodore #holden #melbournetuners #tunedbyanton

Anton Krstic · Lead tuner · Bay 02

This Holden Commodore ZB was tuned on our Mainline AWD dyno. All results here come from dyno tuning in Melbourne at our Epping workshop.

More on this platform

Other Holden Commodore ZB results.

Stage 2 tune

Power & torque · stock vs tuned.

Hubs · SAE J1349 · Median of 3 pulls
Power
Stock
141kW
Tuned
165kW
+24 kW (32 hp) at the hubs+17%
Torque
Stock
274Nm
Tuned
365Nm
+91 Nm (67 lb·ft) at the hubs+33%
Hardware

Modifications.

2 categories · Stage 2 build
  • ·Intake
  • ·Down Pipe
Calibration

ECU improvements.

Factory
  • ·Improved Power
  • ·Improved Torque
  • ·Increased Throttle Response
