Honda Civic DTec Stage 3 Tune
Tuned · 05 Feb 23
Bay 02 · Mainline AWD
Bay 02 · Mainline AWD

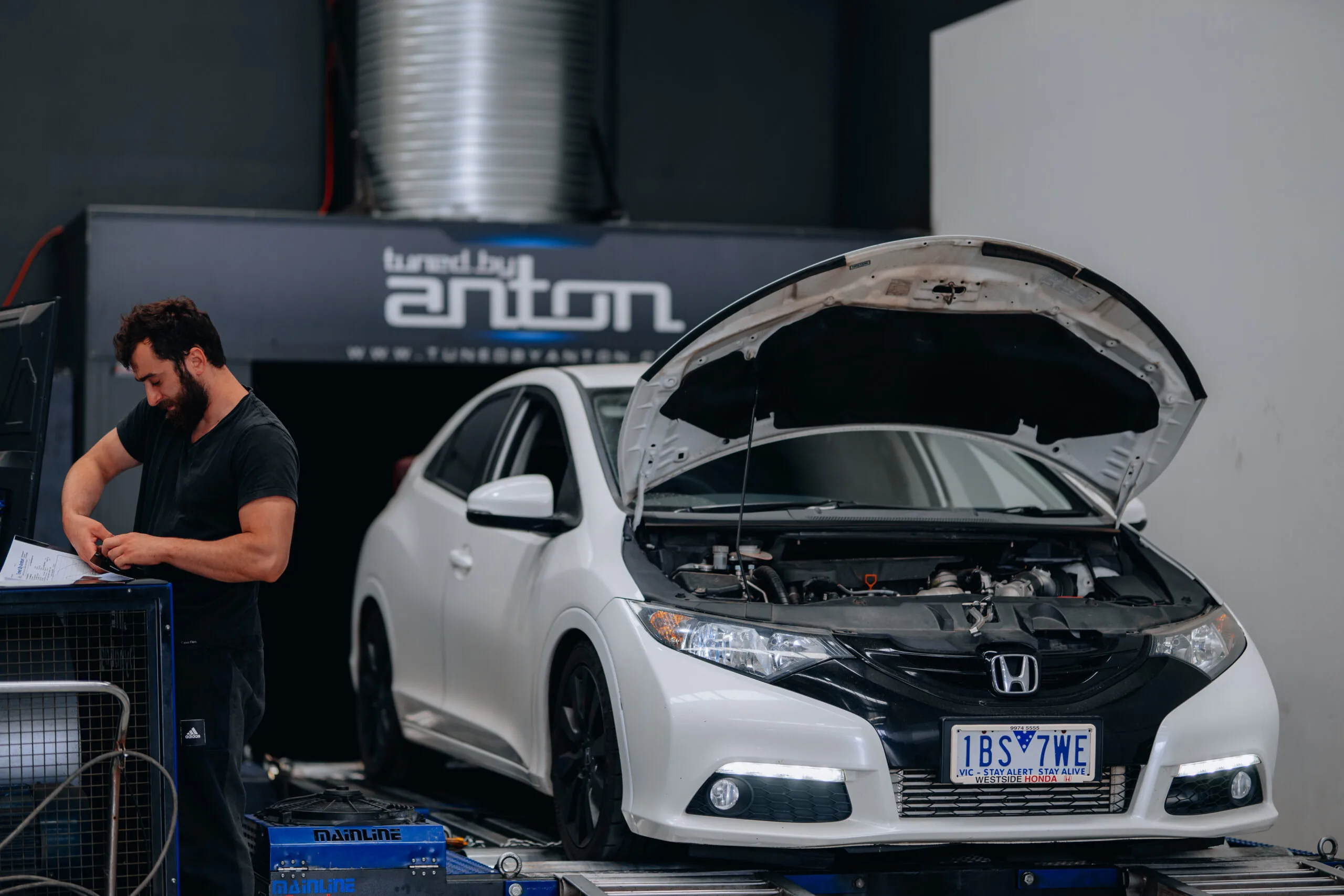

[ On the dyno ]
[ Engine bay ]
DTEC
[ Dyno screen ]
— Vehicle details
Spec sheet.
SeriesFK2
Yearcsakdscqtiazbb5segy53uvt
EngineDTEC
FuelDiesel
ECUFactory
Drivetrain2WD
— Notes from the tuner
What we did.
Diesel Civic 1.6lt, ATP highflow turbo, fmic, intake & full exhaust. Due to the nature of not having much experience with this particular engine we decided to limit torque output during the lower engine speeds & ramp in the power progressively. The vehicle owner was extremely satisfied especially due to his tuning experiences at another vendor.
Peak torque211>255nm, +80nm in the higher rpm60kW>93kW
#dtec #honda #civic #diesel #tunedbyanton
Anton Krstic · Lead tuner · Bay 02
— Stage 3 tune
Power & torque · stock vs tuned.
— Power
Stock
60kW
→
Tuned
93kW
+33 kW (44 hp) at the hubs+55%
— Torque
Stock
211Nm
→
Tuned
255Nm
+44 Nm (32 lb·ft) at the hubs+21%

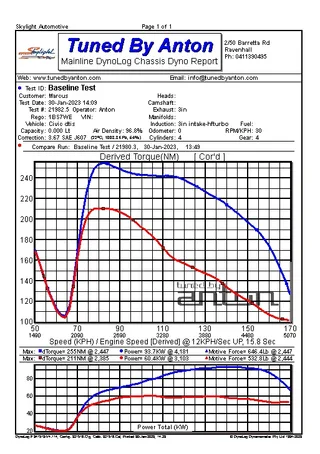

⌁Dyno graph · Pull recorded on the Mainline AWD
— Hardware
Modifications.
5 categories · Stage 3 build
- ·Intake
- ·Exhaust
- ·Down Pipe
- ·Intercooler
- ·Turbocharger
— Calibration
ECU improvements.
Factory
- ·Improved Fuel Efficiency
- ·Improved Power
- ·Improved Torque
