Stage 2Factory

Honda Civic Type R

Tuned · 02 Apr 22
Bay 02 · Mainline AWD

[ On the dyno ] Honda Civic Type R: On the dyno

[ Dyno screen ] Honda Civic Type R: Dyno screen

Vehicle details

Spec sheet.

MakeHonda

ModelCivic

SeriesFK8

EngineK20C1

Fuel98 RON

ECUFactory

Drivetrain4WD

This Honda Civic FK8 was tuned on our Mainline AWD dyno. All results here come from dyno tuning in Melbourne at our Epping workshop.

Other Honda Civic FK8 results.

Stage 2104 kW

Honda Civic EP3 K24 swapped

View result →

Stage 393 kW

Honda Civic DTec Stage 3 Tune

View result →

Stage 2 tune

Power & torque · stock vs tuned.

Hubs · SAE J1349 · Median of 3 pulls

Power

Stock

185kW

→

Tuned

204kW

+19 kW (25 hp) at the hubs+10%

Torque

Stock

388Nm

→

Tuned

455Nm

+67 Nm (49 lb·ft) at the hubs+17%

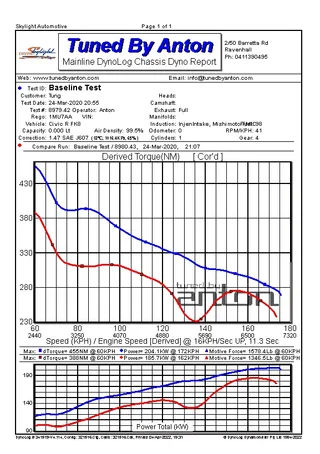

⌁Dyno graph · Pull recorded on the Mainline AWD

Download ↓

Hardware

Modifications.

4 categories · Stage 2 build

·Intake
·Exhaust
·Down Pipe
·Intercooler

Calibration

ECU improvements.

Factory

·Improved Power
·Improved Torque
