Stage 2Factory

Mercedes A45 AMG Stage 2

Tuned · 13 Sept 23
Bay 02 · Mainline AWD

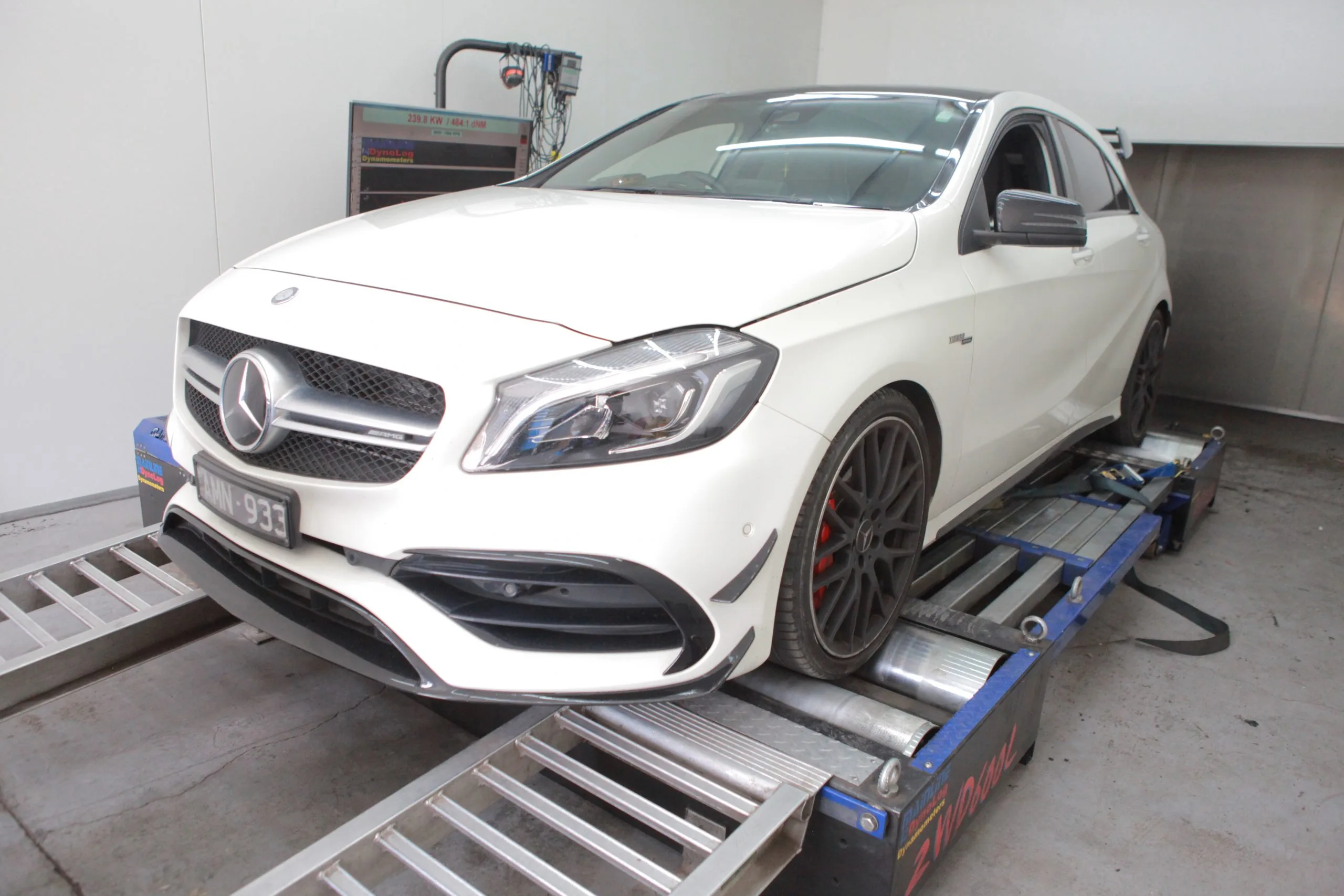

[ On the dyno ]Mercedes A45 AMG Stage 2 — On the dyno
[ Engine bay ]
M133

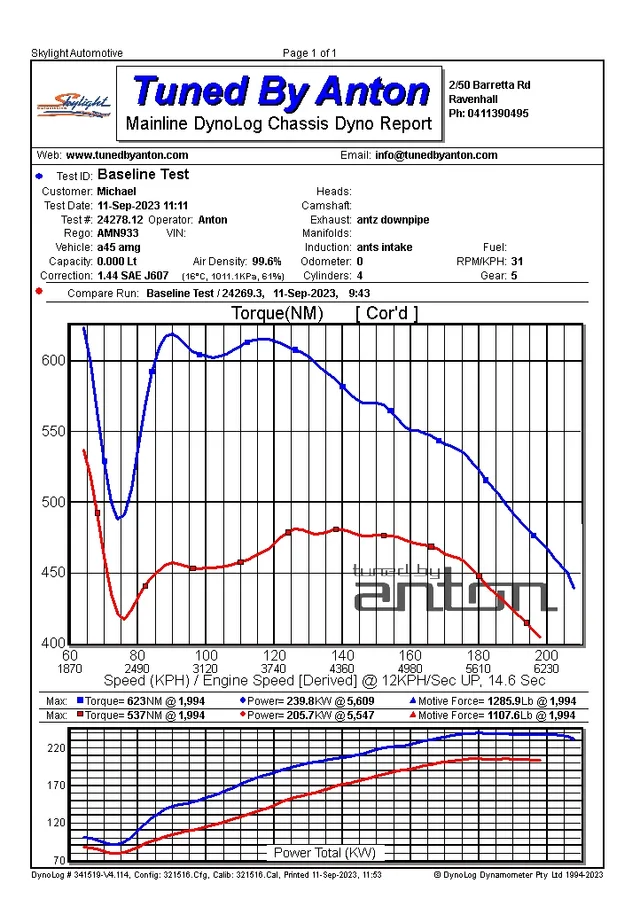

[ Dyno screen ]Mercedes A45 AMG Stage 2 — Dyno screen
— Vehicle details

Spec sheet.

SeriesW176
Yearbdc54lhqndh4kmlnjawh9cqc
EngineM133
Fuel98 RON
ECUFactory
Drivetrain4WD
— Notes from the tuner

What we did.

Introducing the Mercedes A45 AMG, now boasting an impressive 239kW of power at the wheels. This transformation is achieved through a series of enhancements, including the performance-boosting ANTS intake modification and downpipe upgrade.

But that's not all – we've taken our modifications a step further by comprehensively fine-tuning the transmission. This includes elevating the line pressure and surpassing clutch torque limitations. The result? A revised launch control system that delivers an immense 4WD take-off, and sharper, more responsive shifts that will elevate your driving experience to new heights.

#mercedes #a45 #amg #antzperformance #tunedbyanton

Anton Krstic · Lead tuner · Bay 02
Stage 2 tune

Power & torque · stock vs tuned.

Hubs · SAE J1349 · Median of 3 pulls
Power
Stock
205kW
Tuned
239kW
+34 kW (46 hp) at the hubs+17%
Torque
Stock
537Nm
Tuned
623Nm
+86 Nm (63 lb·ft) at the hubs+16%
— Hardware

Modifications.

2 categories · Stage 2 build
  • ·Intake
  • ·Down Pipe
— Calibration

ECU improvements.

Factory
  • ·Improved Fuel Efficiency
  • ·Improved Power
  • ·Improved Torque
  • ·Launch Control
  • ·Increased Clutch Line Pressure
  • ·Optimized Shift Schedule
  • ·Optimized Shifts
  • ·Increased Clutch Torque Limits
  • ·Imrpoved Gearshift Torque Reduction
