Mercedes CLA45 AMG Stage 2

Tuned · 03 Dec 22
Bay 02 · Mainline AWD

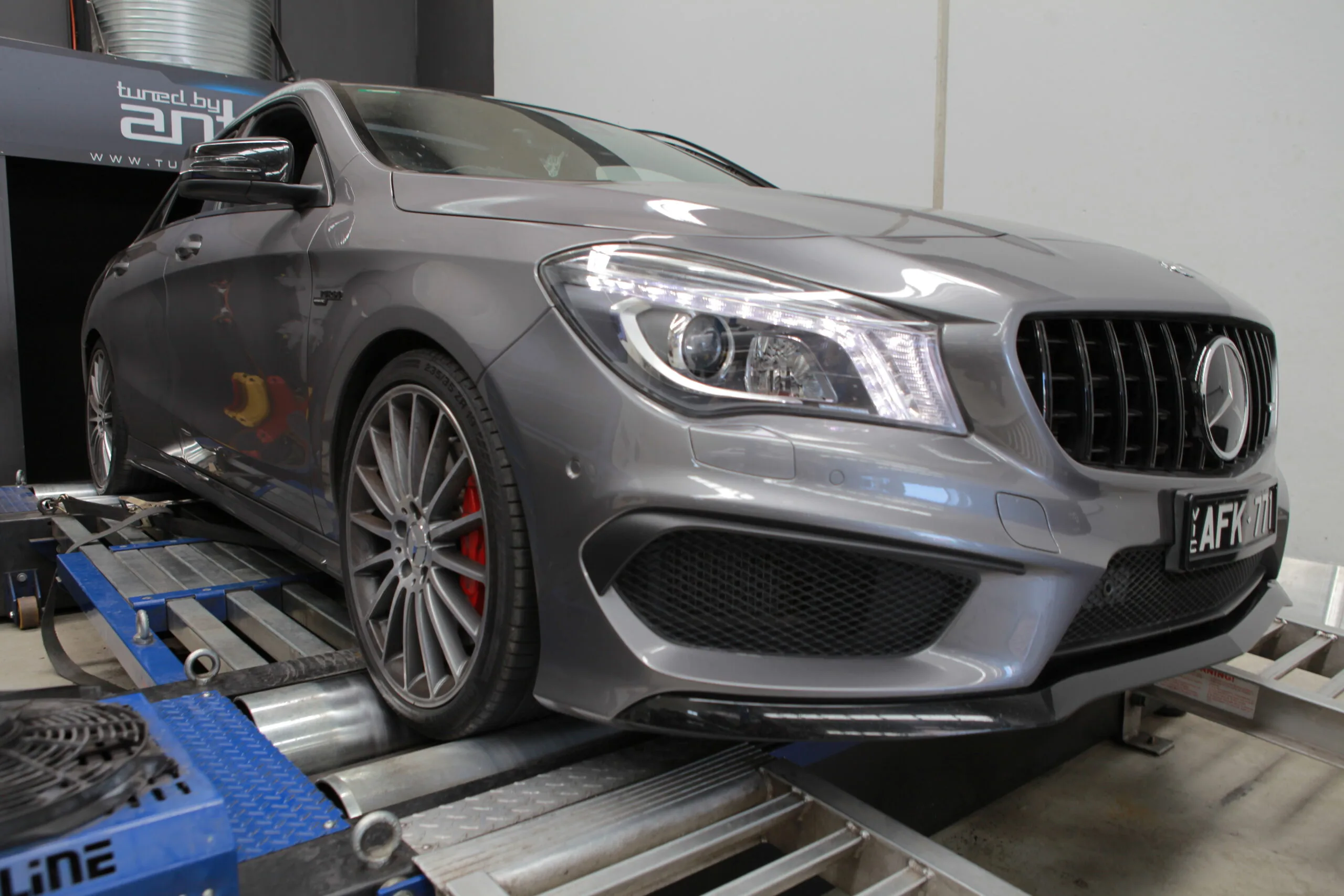

[ On the dyno ]Mercedes CLA45 AMG Stage 2: On the dyno

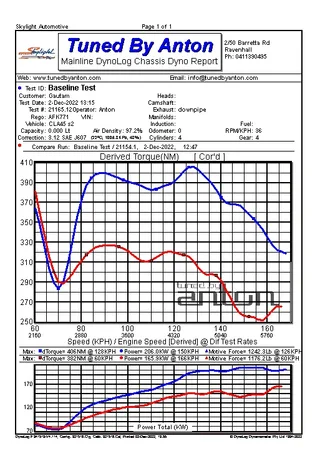

[ Dyno screen ]Mercedes CLA45 AMG Stage 2: Dyno screen
Vehicle details

Spec sheet.

ModelCLA45 AMG
SeriesC117
EngineM133
Fuel98 RON
ECUFactory
Drivetrain4WD
Notes from the tuner

What we did.

Mercedes CLA45 AMG pre face lift taking up the black Friday specials. Enhancing the stock turbine model the Antz Performance downpipe & frontpipe along with our phase 2 engine and tranmission calibration we were able to improve engine power & torque output by 56hp & +70nm. Vehicle feels fun and punchy to drive.

The engine calibration includes tweaks such as start/stop disable, reduction of throttle delays, unrestricted throttle opening and tweaks to thermal efficiencies of engine, transmission and charge temperatures.The transmission includes optimization of torque, pressures, shift properties, stall speeds & launch control configurations.

It not uncommon for the preface lift models to have a sensitive 4wd system to the dynameter which is why the before/after graphing is jiggered. This is later improved by Mercedes in the years to follow, face lift models only have the tendancy of this behavior when the 4wd components are operated in high temp conditions.

#cla45 #a45 #gla45 #amg #tuning #stage2 #mercedes #m133 #vgs #tunedbyanton

Anton Krstic · Lead tuner · Bay 02

This Mercedes CLA45 AMG C117 was tuned on our Mainline AWD dyno. See our Stage 3 | 2013-2019 Mercedes CLA45 C117 if you're after a fixed-price build. All results here come from dyno tuning in Melbourne at our Epping workshop.

More on this platform

Other Mercedes CLA45 AMG C117 results.

Stage 2 tune

Power & torque · stock vs tuned.

Hubs · SAE J1349 · Median of 3 pulls
Power
Stock
165kW
Tuned
206kW
+41 kW (55 hp) at the hubs+25%
Torque
Stock
330Nm
Tuned
400Nm
+70 Nm (52 lb·ft) at the hubs+21%
Hardware

Modifications.

1 category · Stage 2 build
  • ·Down Pipe
Calibration

ECU improvements.

Factory
  • ·Increased Engine Response
  • ·Improved Fuel Efficiency
  • ·Improved Power
  • ·Improved Torque
  • ·Increased Throttle Response
  • ·Exhaust Burbles/Pops
  • ·Increased Clutch Line Pressure
  • ·Optimized Shifts
  • ·Increased Clutch Torque Limits
  • ·Imrpoved Gearshift Torque Reduction
  • ·Disabled Auto Start/Stop
