Mercedes CLA45 AMG Stage2
Tuned · 09 Dec 22
Bay 02 · Mainline AWD
Bay 02 · Mainline AWD

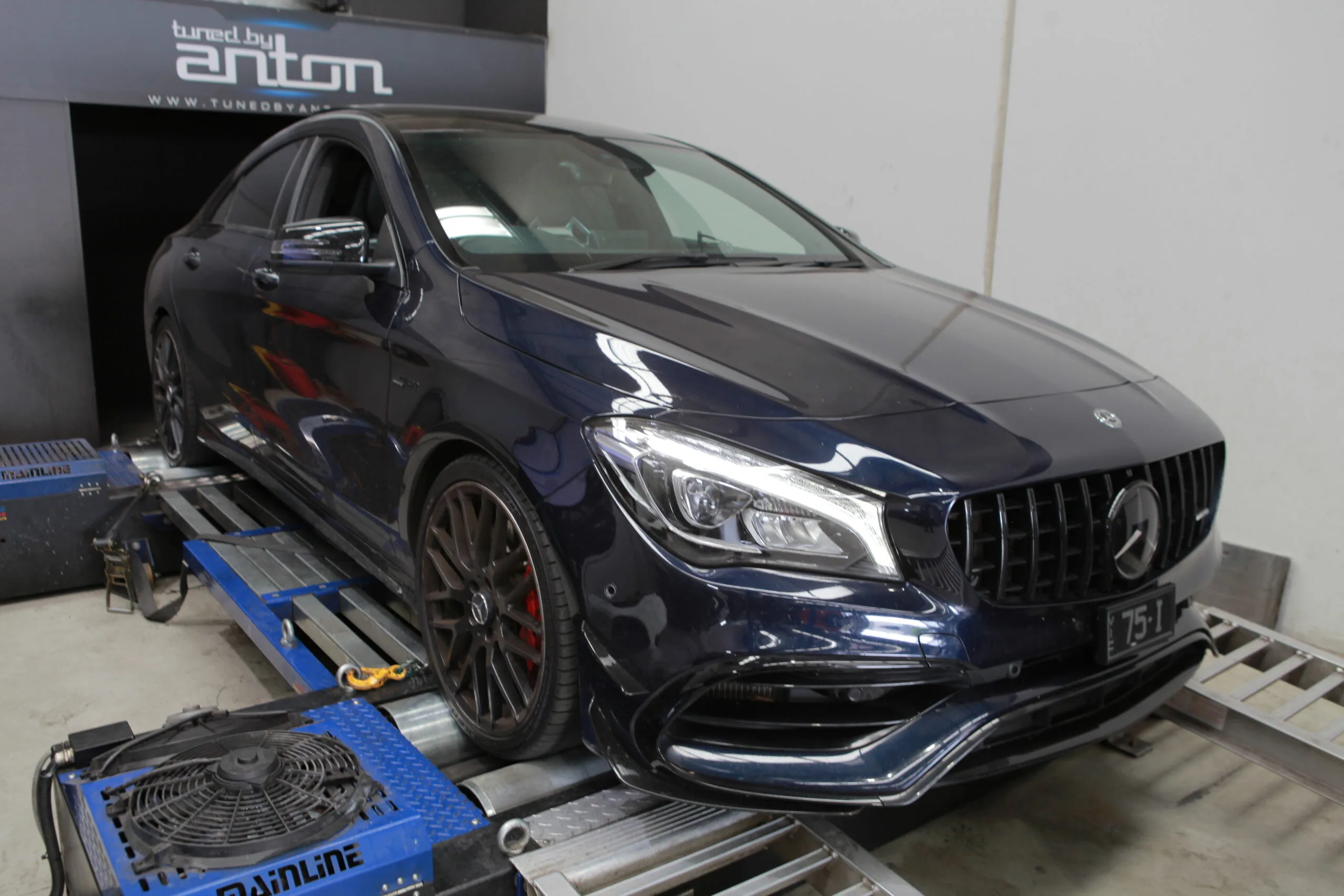

[ On the dyno ]

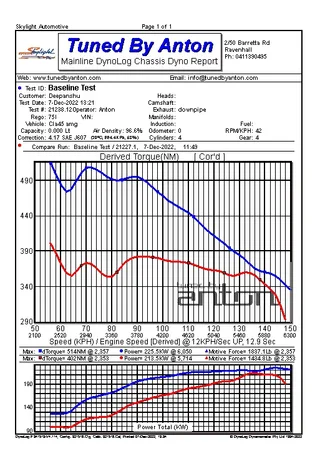

[ Dyno screen ]
Vehicle details
Spec sheet.
Notes from the tuner
What we did.
facelift CLA45 AMG booked in for phase 2 package which includes Antz performance downpipe & engine + transmission calibration. Peak torque improved by +112nm whilst we have seen improvements of 35kw in the midrange. With the remapped tranmission we are able to produce another 50nm of torque transitioning onto boost. The torque in this region would multiply with the Antz intake mod. We will demonstrate in the short future.
#cla45 #a45 #m133 #vgs #amg #mercedes #stage2 #melbourne #tuning #tunedbyanton
Anton Krstic · Lead tuner · Bay 02
This Mercedes CLA45 AMG C117 was tuned on our Mainline AWD dyno. See our Stage 3 | 2013-2019 Mercedes CLA45 C117 if you're after a fixed-price build. All results here come from dyno tuning in Melbourne at our Epping workshop.
Other Mercedes CLA45 AMG C117 results.
Stage 2 tune
Power & torque · stock vs tuned.
Power
Stock
213kW
→
Tuned
225kW
+12 kW (16 hp) at the hubs+6%
Torque
Stock
402Nm
→
Tuned
514Nm
+112 Nm (83 lb·ft) at the hubs+28%
⌁Dyno graph · Pull recorded on the Mainline AWD
Hardware
Modifications.
1 category · Stage 2 build
- ·Down Pipe
Calibration
ECU improvements.
Factory
- ·Increased Engine Response
- ·Improved Power
- ·Improved Torque
- ·Increased Throttle Response
- ·Exhaust Burbles/Pops
- ·Launch Control
- ·Increased Clutch Line Pressure
- ·Optimized Shifts
- ·Increased Clutch Torque Limits
- ·Imrpoved Gearshift Torque Reduction
- ·Disabled Auto Start/Stop
- ·Improved Thermal Dynamics
