Mitsubishi Evo 7 with BC 270 Cams
Tuned · 17 Feb 25
Bay 02 · Mainline AWD
Bay 02 · Mainline AWD
[ On the dyno ]
[ Engine bay ]
4G63
[ Dyno screen ]
— Vehicle details
Spec sheet.
Series7
Yearf86hnpowp6hh8wsvs4q9j8t6
Engine4G63
Fuel98 RON
ECUFactory
Drivetrain4WD
— Notes from the tuner
What we did.
This Evo 7 came in with some serious issues: overboosting, overfueling, and downright terrible drivability. 🚗💥
With a full exhaust, BC270 cams, and an Evo 9 turbocharger under the hood, we got to work. After some fine-tuning magic, it’s now running buttery smooth and putting down a solid 203kW @ 25psi on petrol fuel. 💪🔥
It’s safe to say this beast is back in business
#evo7 #evotuner #tunedbyanton
Anton Krstic · Lead tuner · Bay 02
— Stage 1 tune
Power & torque · stock vs tuned.
— Power
Stock
158kW
→
Tuned
203kW
+45 kW (60 hp) at the hubs+28%
— Torque
Stock
267Nm
→
Tuned
360Nm
+93 Nm (69 lb·ft) at the hubs+35%

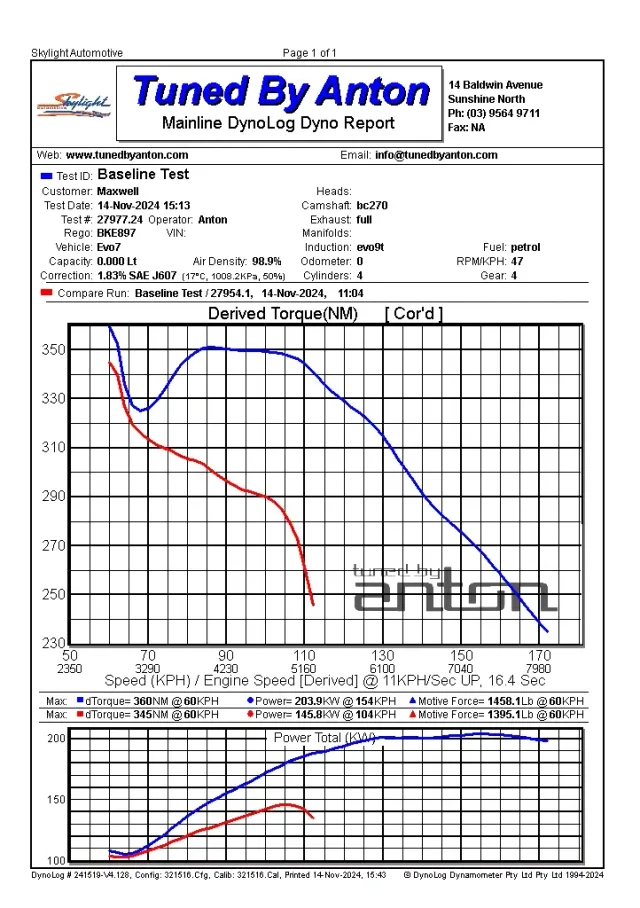

⌁Dyno graph · Pull recorded on the Mainline AWD
— Hardware
Modifications.
4 categories · Stage 1 build
- ·Intake
- ·Exhaust
- ·Down Pipe
- ·Turbocharger
— Calibration
ECU improvements.
Factory
- ·Improved Power
- ·Improved Torque
