Stage 3Link ECU
Mitsubishi EVO 8
Tuned · 28 Aug 22
Bay 02 · Mainline AWD
Bay 02 · Mainline AWD

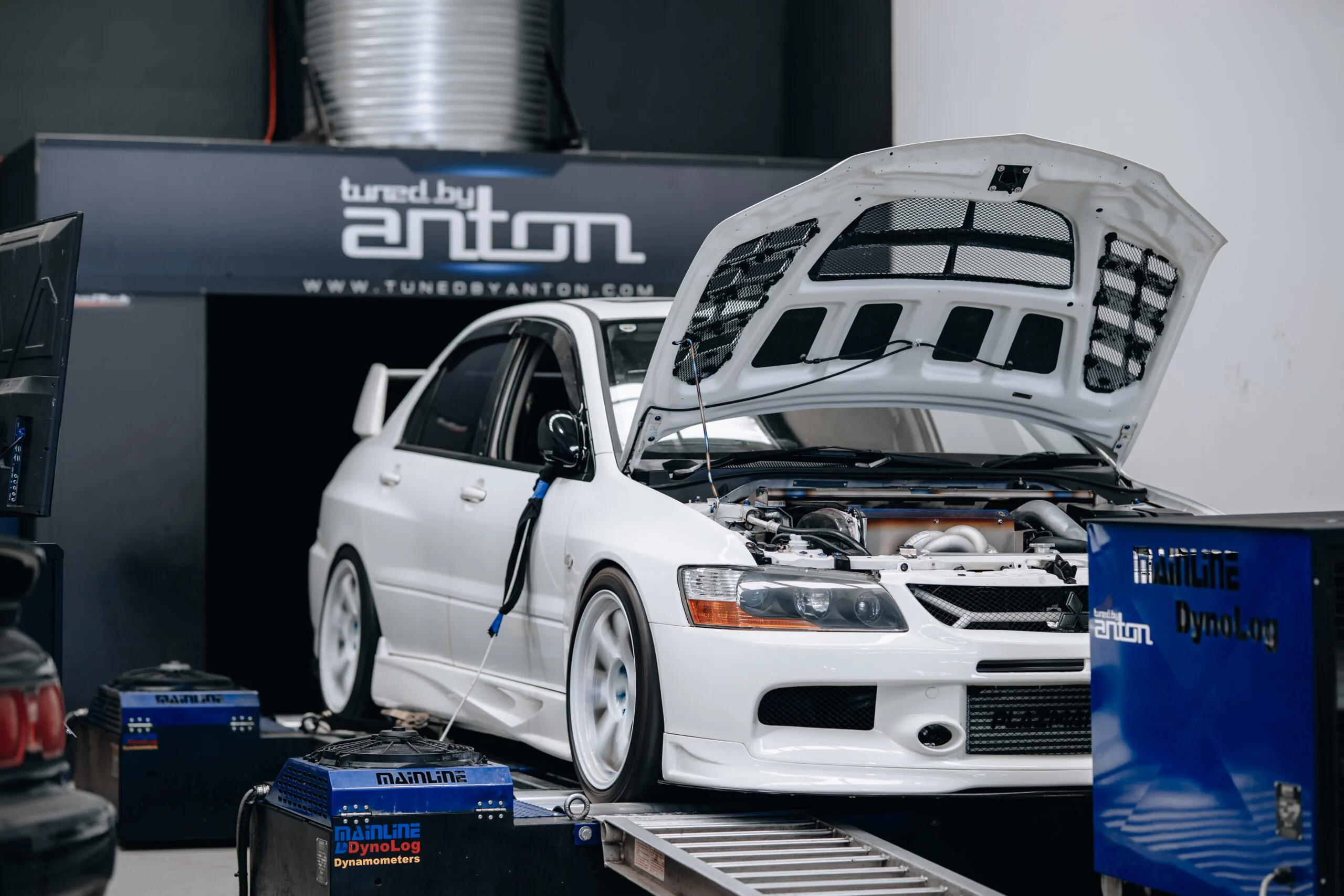

[ On the dyno ]
[ Dyno screen ]
322
Vehicle details
Spec sheet.
Notes from the tuner
What we did.
This neat Evo8 is now producing 322kw 2bar e85, and 249kw 1.5bar premium petrol. Bolt ons include a pair of 270 duration kelford cams and FP green turbocharger. Engine remains stock.
Engine management is Link G4X tuned for flex fuel, rolling antlilag and boost hi/lo. Engine is monitoring includes fuel pressure, lambda, both oil pressure and temperature.
#linkecu #evo8 #4g63 #kelford #tunedbyanton
Anton Krstic · Lead tuner · Bay 02
This Mitsubishi Evo 8 was tuned on our Mainline AWD dyno. All results here come from dyno tuning in Melbourne at our Epping workshop.
Other Mitsubishi Evo 8 results.
Stage 3 tune
Power & torque · stock vs tuned.
Power
Stock
185kW
→
Tuned
322kW
+137 kW (184 hp) at the hubs+74%
Torque
Stock
294Nm
→
Tuned
515Nm
+221 Nm (163 lb·ft) at the hubs+75%
Hardware
Modifications.
8 categories · Stage 3 build
- ·Intake
- ·Exhaust
- ·Down Pipe
- ·Intercooler
- ·Fuel System Upgrade
- ·Ignition Upgrade
- ·Engine Components
- ·Turbocharger
Calibration
ECU improvements.
Link ECU
- ·Improved Power
- ·Improved Torque
- ·Rolling Antilag
