Stage 3Link ECU

Mitsubishi Evo 8 G30-900 374kW

Tuned Β· 19 Apr 24
Bay 02 Β· Mainline AWD

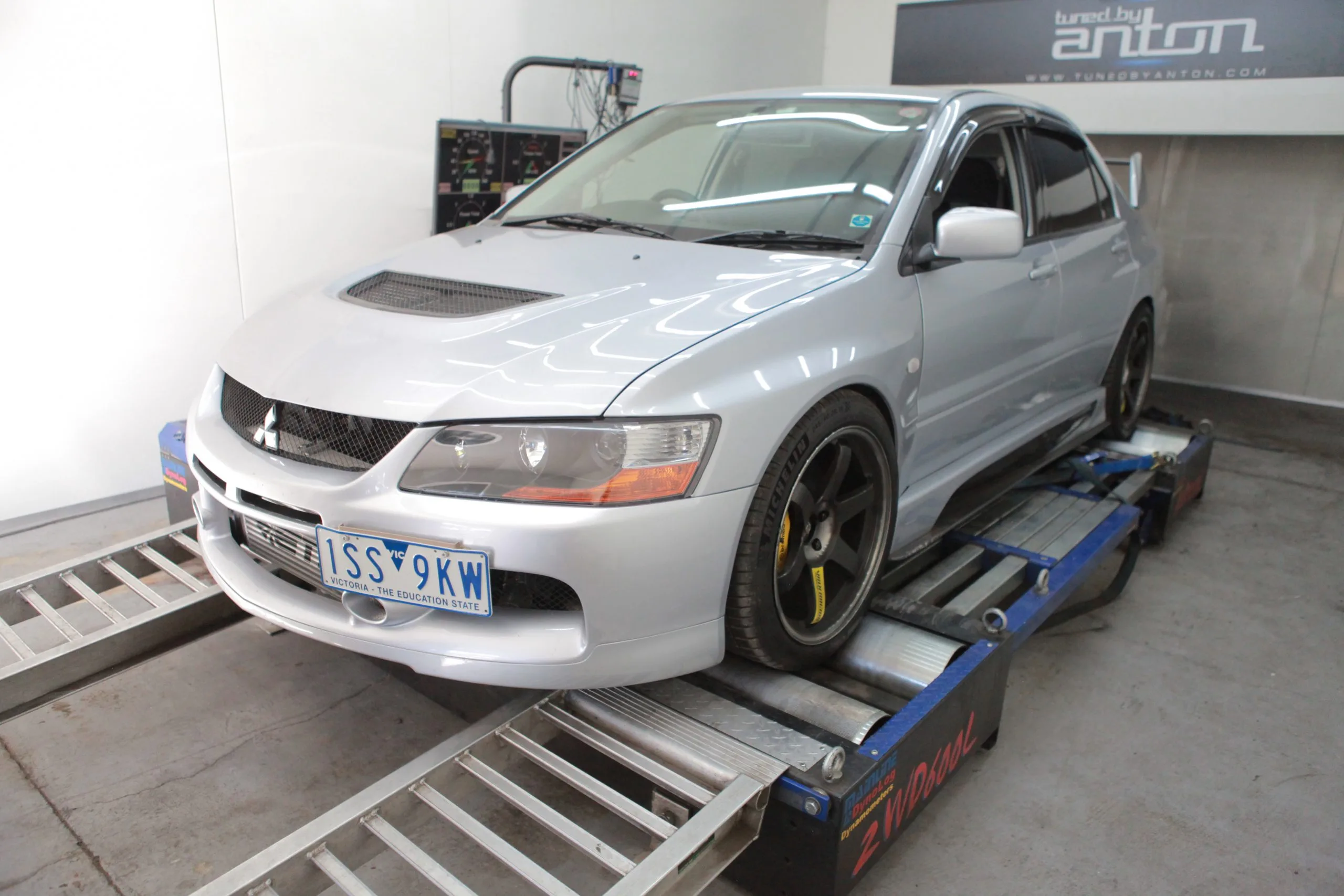

[ On the dyno ]Mitsubishi Evo 8 G30-900 374kW: On the dyno

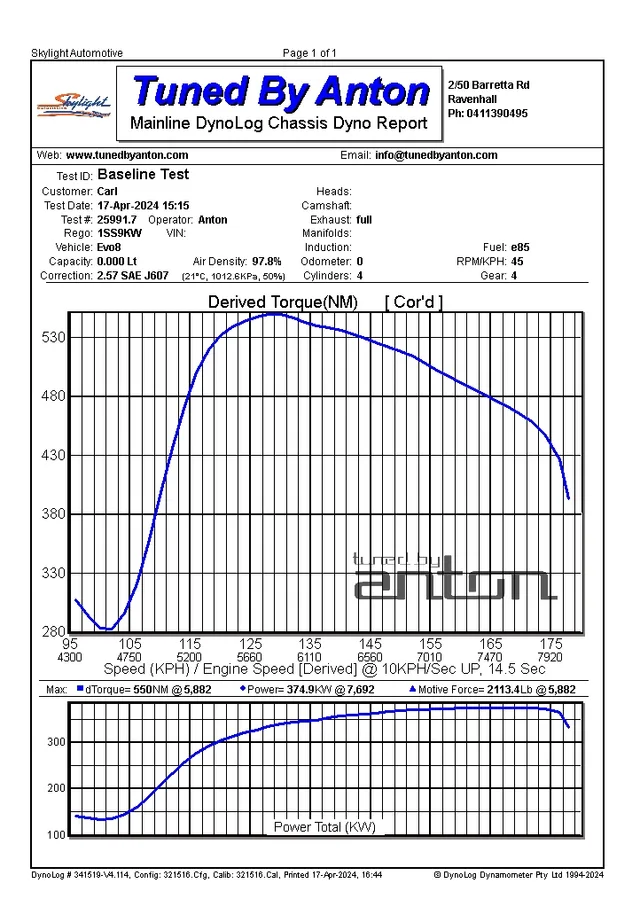

[ Dyno screen ]Mitsubishi Evo 8 G30-900 374kW: Dyno screen
Vehicle details

Spec sheet.

ModelEvo
Series8
Engine4G63
Fuel98 RON Β· E85 Β· Flex Fuel
Drivetrain4WD
Notes from the tuner

What we did.

Carl's Evo a potent 2-liter setup powered by the Garret G30-900 turbocharger and Kelford 274 cams. It's tuned for 374 kw at 2.4 bar manifold pressure. Beneath the hoodΒ  LinkECU calling the shots, equipped with features like rolling anti-lag, a switch for high and low boost settings, flex fuel, and engine safety measures. Notably we've optimized the performance further by fine tuning the cams resulting in an addition of 70 kW. Essentially the engine was underperforming due to the lack of finesse in dialing in the cams.

#evo #4g63 #melbourne #linkecu #garretg30 #kelfordcams #motorlab #logansspeedshop #tunedbyanton

Anton Krstic Β· Lead tuner Β· Bay 02

This Mitsubishi Evo 8 was tuned on our Mainline AWD dyno. All results here come from dyno tuning in Melbourne at our Epping workshop.

More on this platform

Other Mitsubishi Evo 8 results.

Stage 3 tune

Power & torque Β· stock vs tuned.

Hubs Β· SAE J1349 Β· Median of 3 pulls
Power
Stock
185kW
β†’
Tuned
374kW
+189 kW (253 hp) at the hubs+102%
Torque
Stock
294Nm
β†’
Tuned
550Nm
+256 Nm (189 lbΒ·ft) at the hubs+87%
Hardware

Modifications.

9 categories Β· Stage 3 build
  • Β·Intake
  • Β·Exhaust
  • Β·Down Pipe
  • Β·Intercooler
  • Β·Fuel System Upgrade
  • Β·Ignition Upgrade
  • Β·Engine Components
  • Β·Turbocharger
  • Β·Headers
Calibration

ECU improvements.

Link ECU
  • Β·Improved Power
  • Β·Improved Torque
