Nissan Navara D40 Stage 1

Tuned · 26 July 23
Bay 02 · Mainline AWD

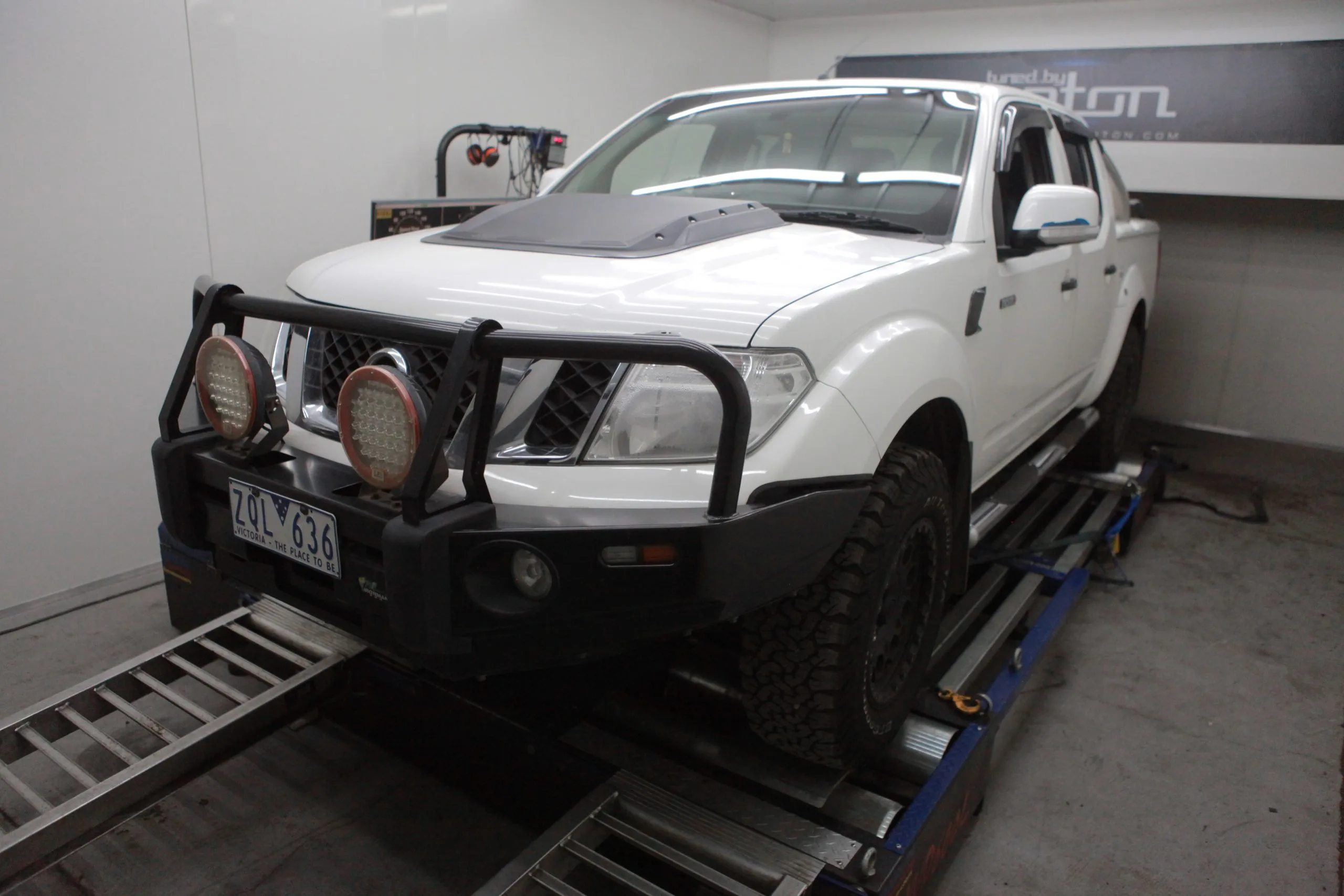

[ On the dyno ] Nissan Navara D40 Stage 1 — On the dyno

[ Engine bay ]

ENGINE

[ Dyno screen ] Nissan Navara D40 Stage 1 — Dyno screen

— Vehicle details

Spec sheet.

SeriesD40

Yearbt3izqhspc7n8oxmdt24flom

FuelDiesel

ECUFactory

Drivetrain4WD

— Notes from the tuner

The Navara D40 has been enhanced to generate around 30% additional torque and power.

#navara #d40 #dieseltuning #tunedbyanton

Anton Krstic · Lead tuner · Bay 02

— Stage 1 tune

Hubs · SAE J1349 · Median of 3 pulls

— Power

Stock

88kW

→

Tuned

116kW

+28 kW (38 hp) at the hubs+32%

— Torque

Stock

365Nm

→

Tuned

462Nm

+97 Nm (72 lb·ft) at the hubs+27%

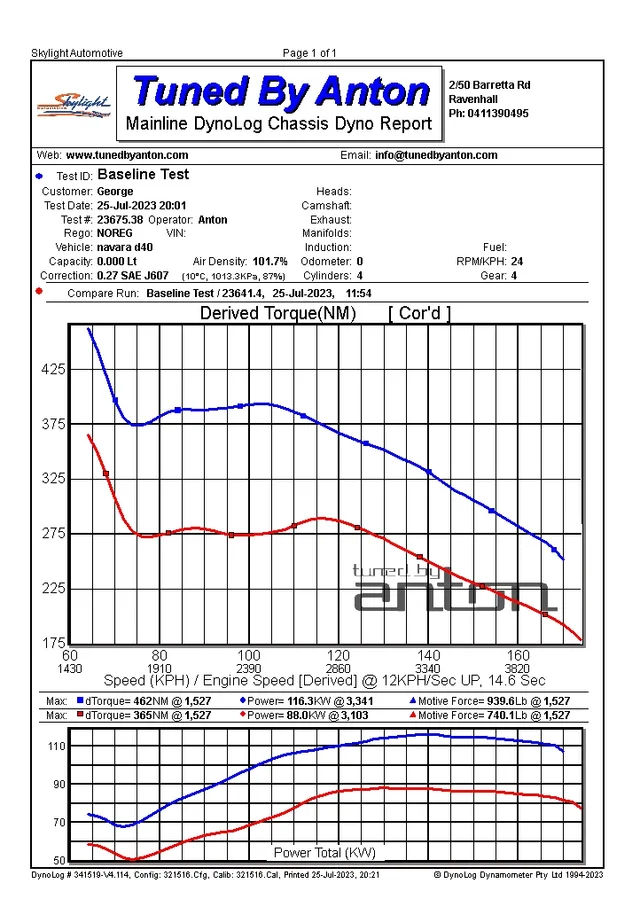

⌁Dyno graph · Pull recorded on the Mainline AWD

— Calibration

Factory
