Stage 2Factory

Nissan Patrol LS Swapped

Tuned · 10 Dec 24
Bay 02 · Mainline AWD

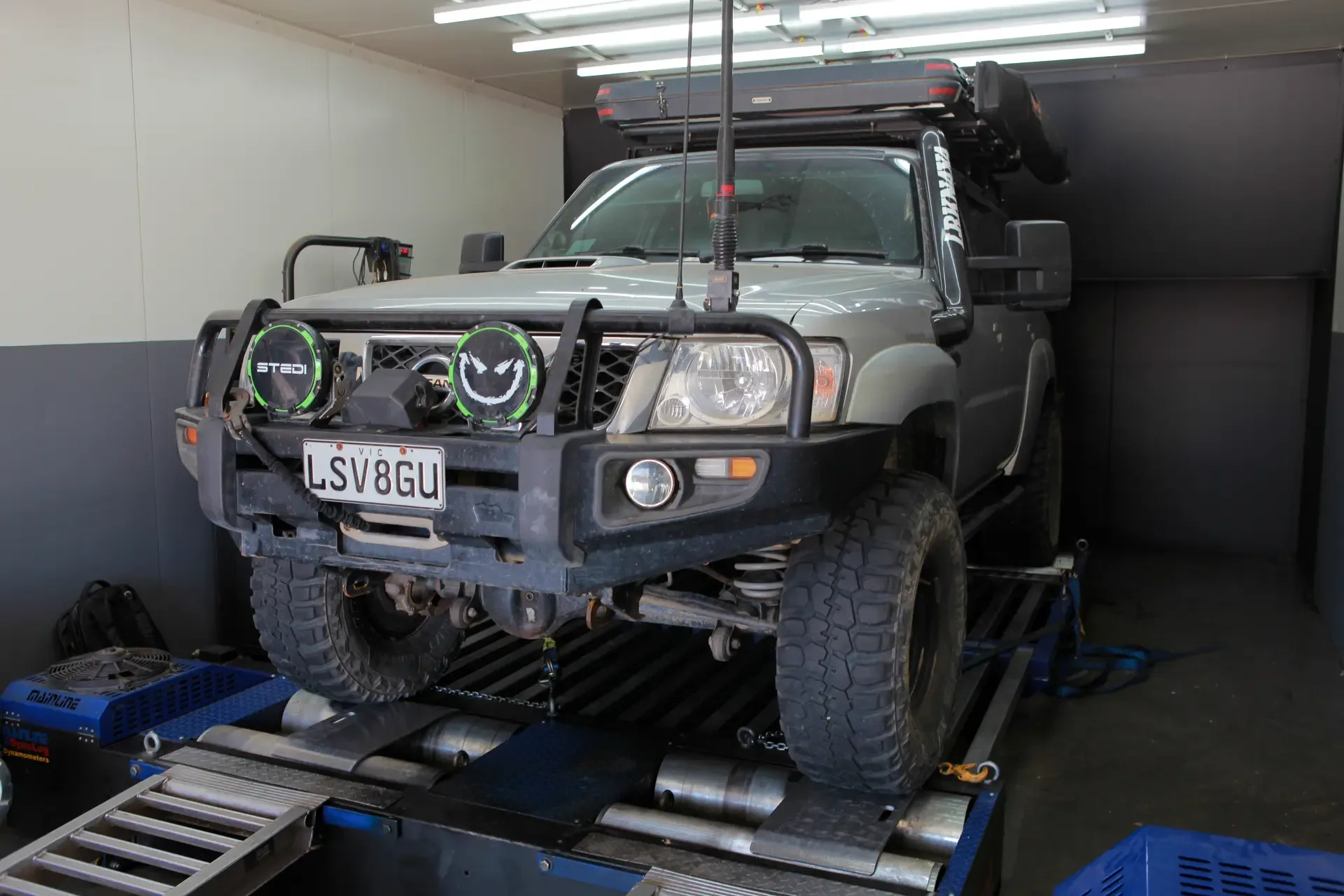

[ On the dyno ]Nissan Patrol LS Swapped: On the dyno

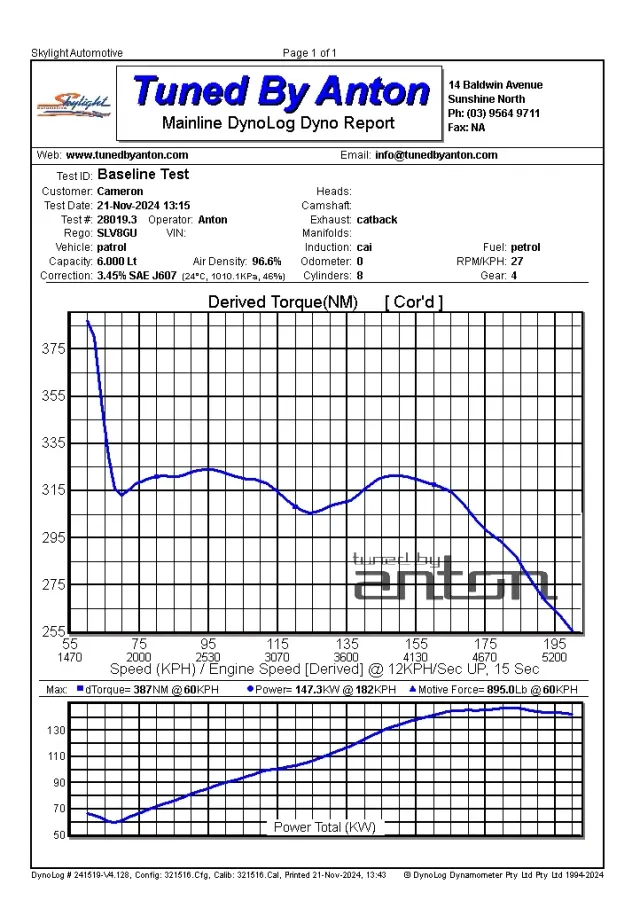

[ Dyno screen ]Nissan Patrol LS Swapped: Dyno screen
Vehicle details

Spec sheet.

MakeNissan
ModelPatrol
SeriesY61
EngineLS
Fuel98 RON
ECUFactory
Drivetrain4WD
Notes from the tuner

What we did.

This LS-swapped Patrol, now powered by a 6.0L engine, churns out a torquey 387Nm, transforming it into a far punchier and more responsive beast compared to the original ZD30 setup.

Anton Krstic · Lead tuner · Bay 02

This Nissan Patrol Y61 was tuned on our Mainline AWD dyno. All results here come from dyno tuning in Melbourne at our Epping workshop.

More on this platform

Other Nissan Patrol Y61 results.

Nissan Patrol L98 6.0L & 6L80 SwapStage 1131 kW

Nissan Patrol L98 6.0L & 6L80 Swap

View result →
Nissan Patrol LS 6.0lt ConversionStage 1140 kW

Nissan Patrol LS 6.0lt Conversion

View result →
Nissan Patrol LS1 5.7ltStage 1137 kW

Nissan Patrol LS1 5.7lt

View result →
Stage 2 tune

Power & torque · stock vs tuned.

Hubs · SAE J1349 · Median of 3 pulls
Power
Stock
68kW
→
Tuned
147kW
+79 kW (106 hp) at the hubs+116%
Torque
Stock
202Nm
→
Tuned
387Nm
+185 Nm (136 lb·ft) at the hubs+92%
⌁Dyno graph · Pull recorded on the Mainline AWD
Download ↓
Hardware

Modifications.

3 categories · Stage 2 build
  • ·Intake
  • ·Exhaust
  • ·Headers
Calibration

ECU improvements.

Factory
  • ·Improved Fuel Efficiency
  • ·Improved Power
  • ·Improved Torque
