Stage 1Factory
Toyota Landcruiser 200 Series
Tuned · 13 Sept 23
Bay 02 · Mainline AWD
Bay 02 · Mainline AWD

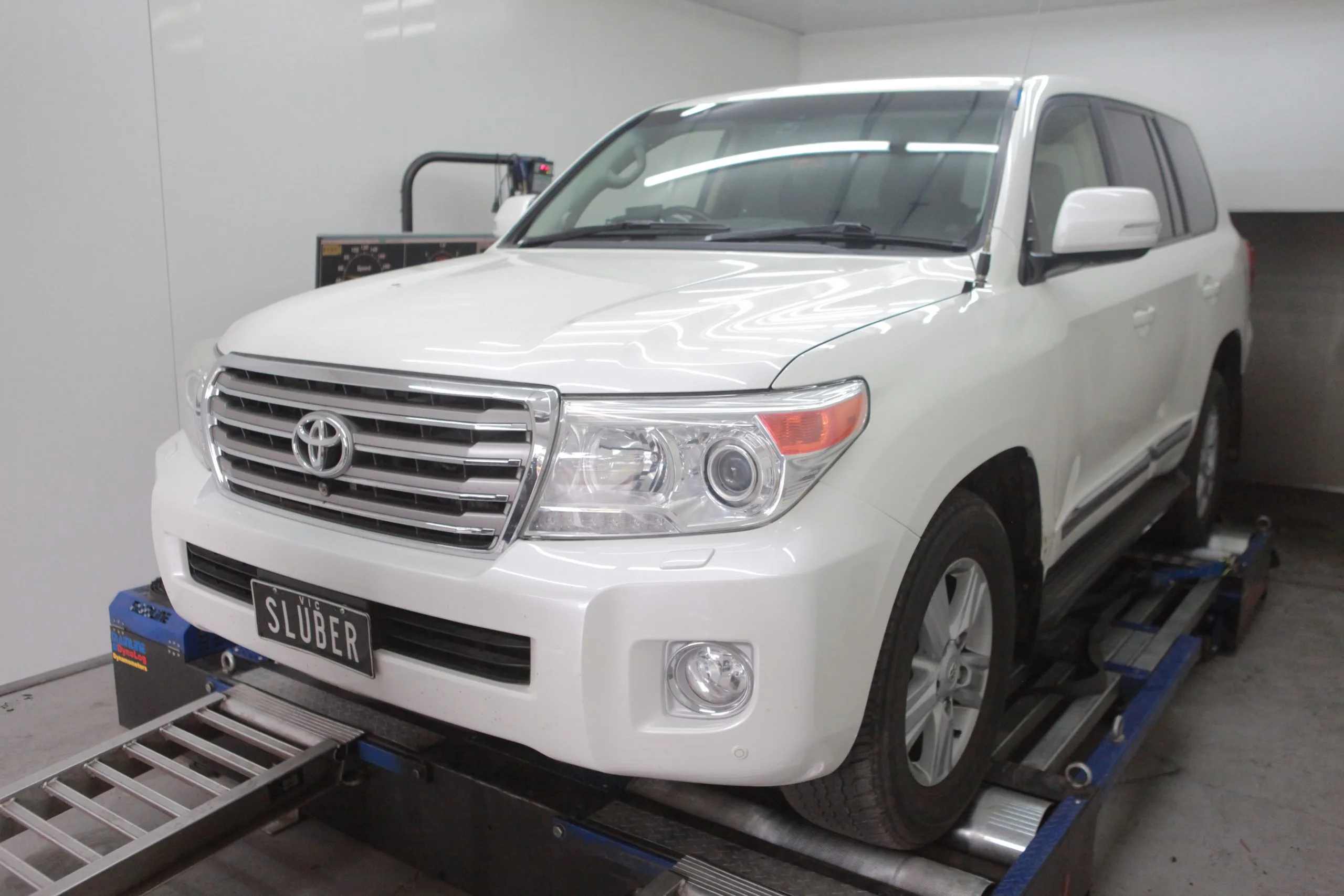

[ On the dyno ]
[ Engine bay ]
1VD
[ Dyno screen ]
— Vehicle details
Spec sheet.
Series200
Yearbt3izqhspc7n8oxmdt24flom
Engine1VD
FuelDiesel
ECUFactory
Drivetrain4WD
— Notes from the tuner
What we did.
The Land Cruiser 200, in its entirely factory configuration booked exclusively for a remap, now delivering an extra 17% in power. Notably, the transmission tuning offers several advantages, specifically aimed at improving the engagement and disengagement of the fifth and sixth gears, while also optimizing the converter to achieve a tight lockup during wide-open throttle (WOT) conditions.
#landcruiser #toyota #dynotuning #melbourne #tunedbyanton
Anton Krstic · Lead tuner · Bay 02
— Stage 1 tune
Power & torque · stock vs tuned.
— Power
Stock
135kW
→
Tuned
159kW
+24 kW (32 hp) at the hubs+18%
— Torque
Stock
547Nm
→
Tuned
597Nm
+50 Nm (37 lb·ft) at the hubs+9%

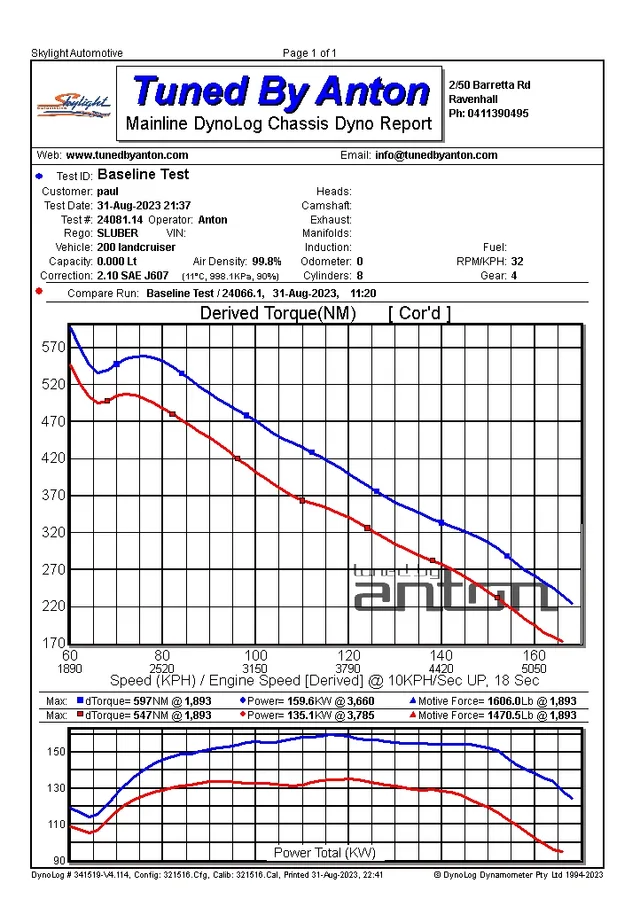

⌁Dyno graph · Pull recorded on the Mainline AWD
— Calibration
ECU improvements.
Factory
- ·Improved Power
- ·Improved Torque
- ·Increased Clutch Line Pressure
- ·Optimized Shift Schedule
- ·Increased Clutch Torque Limits
- ·Improved Converter Lock Up
