Toyota Landcruiser VDJ79 Stage 2
Tuned · 14 Mar 24
Bay 02 · Mainline AWD
Bay 02 · Mainline AWD

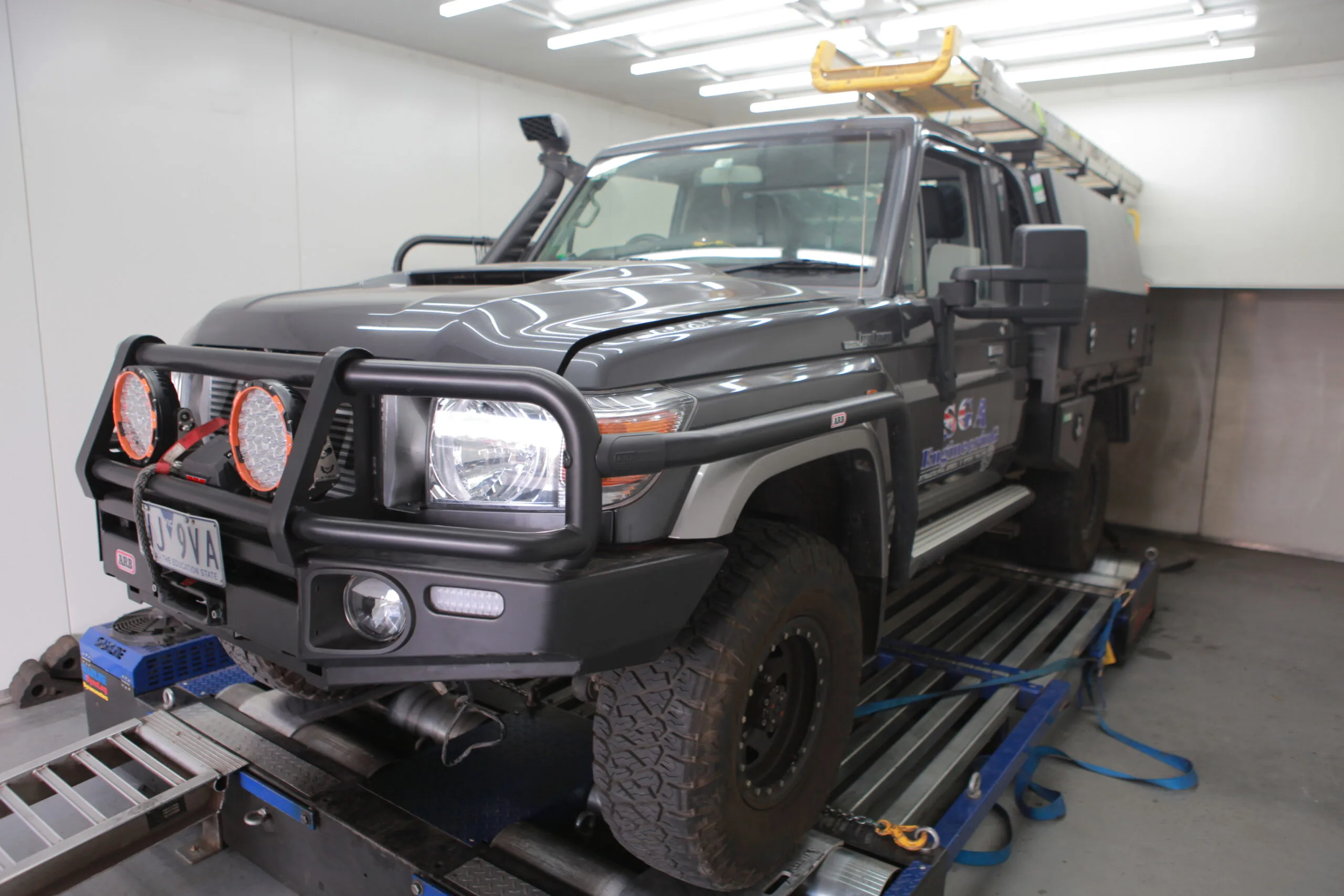

[ On the dyno ]
[ Engine bay ]
1VD
[ Dyno screen ]
— Vehicle details
Spec sheet.
Series79
Yearfxf4ry8v9c3v9pbd9sr35hfg
Engine1VD
FuelDiesel
ECUFactory
Drivetrain4WD
— Notes from the tuner
What we did.
Toyota Landcruiser VDJ79 workhorse loaded with tons of engineering equipment. Given some spirit with a PDI front mount intercooler, full exhaust system & clutch upgrade we see that torque has elevated by approx. 200nm & power 34kw at the wheels.
#pdi #performancedieselintercoolers #npc #vdj79 #landcruiser #1vd #dieseltuning #melbournedieseltuning #tunedbyanton
Anton Krstic · Lead tuner · Bay 02
— Stage 2 tune
Power & torque · stock vs tuned.
— Power
Stock
106kW
→
Tuned
140kW
+34 kW (46 hp) at the hubs+32%
— Torque
Stock
355Nm
→
Tuned
553Nm
+198 Nm (146 lb·ft) at the hubs+56%

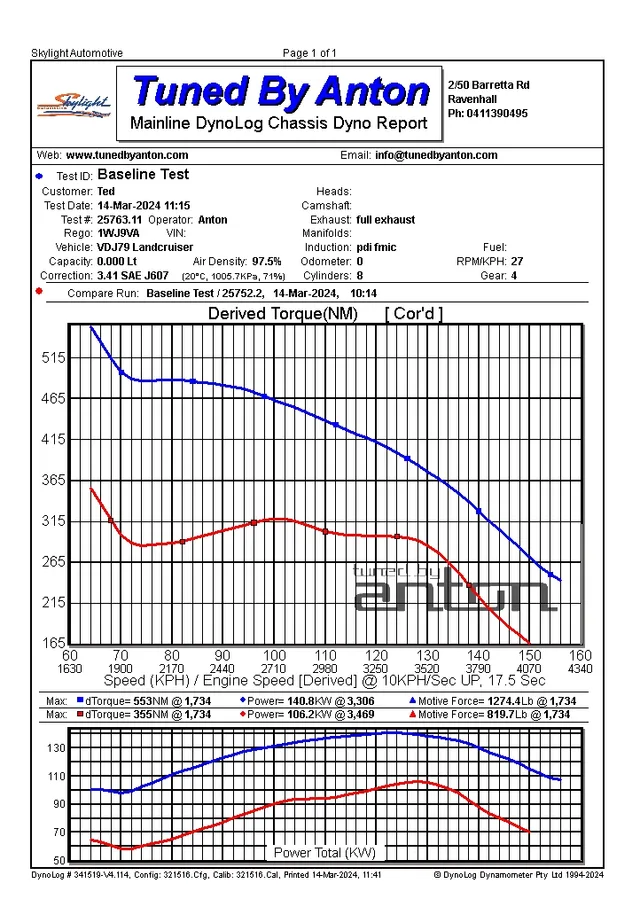

⌁Dyno graph · Pull recorded on the Mainline AWD
— Hardware
Modifications.
5 categories · Stage 2 build
- ·Intake
- ·Exhaust
- ·Down Pipe
- ·Intercooler
- ·Transmission Components
— Calibration
ECU improvements.
Factory
- ·Improved Fuel Efficiency
- ·Improved Power
- ·Improved Torque
