Stage 3Haltech
1100hp Toyota Supra
Tuned · 15 Oct 24
Bay 02 · Mainline AWD
Bay 02 · Mainline AWD

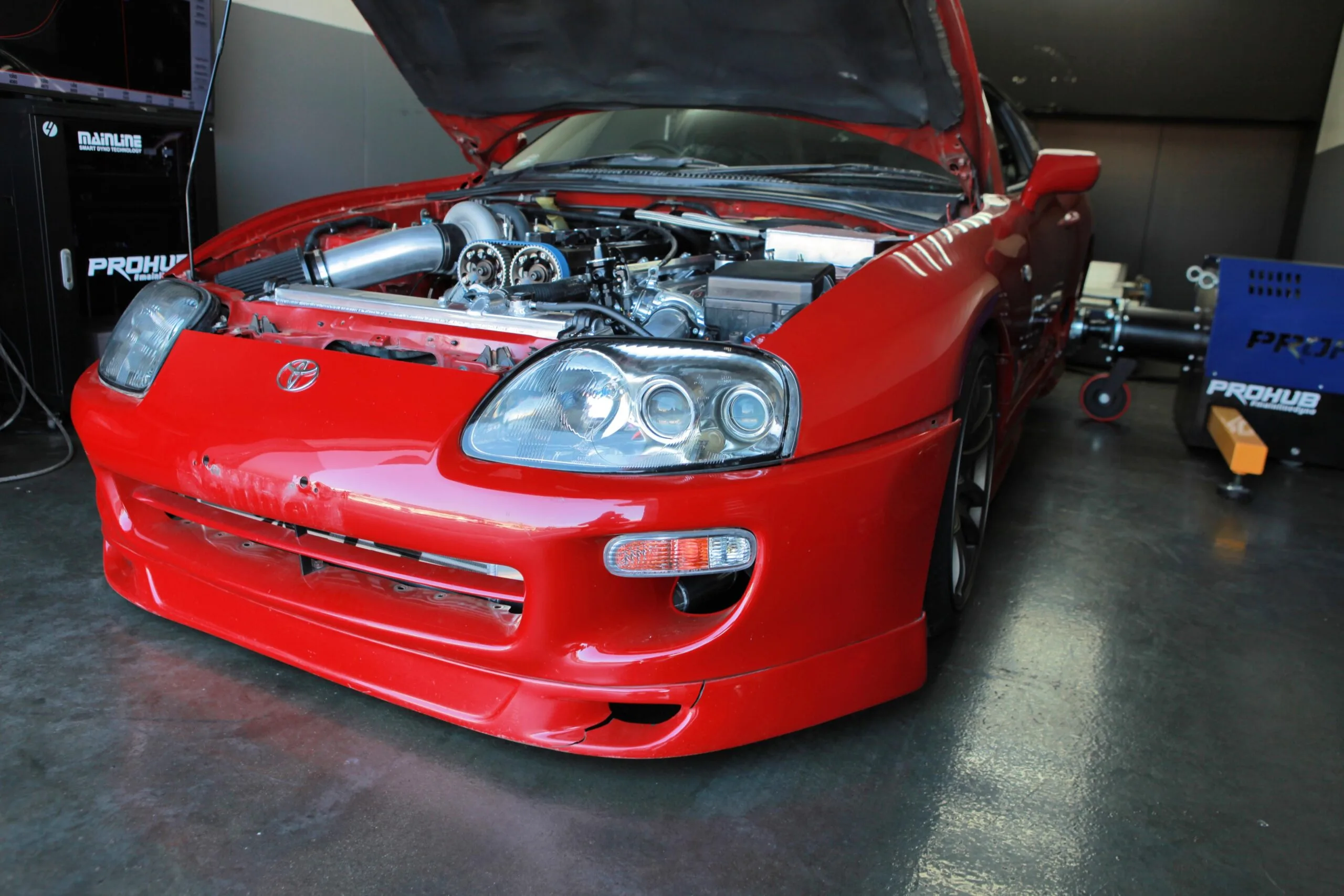

[ On the dyno ]
[ Dyno screen ]
Vehicle details
Spec sheet.
Notes from the tuner
What we did.
David's Supra is now producing 1118hp at 35psi. The modifications include a GE+T full engine build, Kelford cams paired with a ported head, and a Turbosmart 7675 turbocharger. It also features a Plazmaman intake manifold, with engine management handled by a Haltech 2500 and an IC7 dash.
#kelford #turbosmart #2jz #tunedbyanton
Anton Krstic · Lead tuner · Bay 02
This Toyota Supra MK4 was tuned on our Mainline AWD dyno. All results here come from dyno tuning in Melbourne at our Epping workshop.
Other Toyota Supra MK4 results.
Stage 3 tune
Power & torque · stock vs tuned.
Power
Stock
200kW
→
Tuned
834kW
+634 kW (850 hp) at the hubs+317%
Torque
Stock
284Nm
→
Tuned
1,089Nm
+805 Nm (594 lb·ft) at the hubs+283%

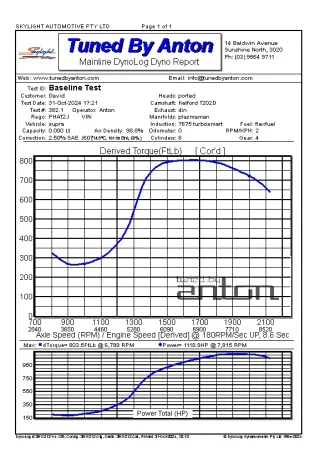

⌁Dyno graph · Pull recorded on the Mainline AWD
Hardware
Modifications.
10 categories · Stage 3 build
- ·Intake
- ·Exhaust
- ·Down Pipe
- ·Intercooler
- ·Fuel System Upgrade
- ·Ignition Upgrade
- ·Engine Components
- ·Transmission Components
- ·Turbocharger
- ·Headers
Calibration
ECU improvements.
Haltech
- ·Improved Power
- ·Improved Torque
- ·Launch Control
- ·Rolling Antilag
- ·Flexfuel
