Toyota Supra A90 Stage 2
Tuned · 14 July 25
Bay 02 · Mainline AWD
Bay 02 · Mainline AWD

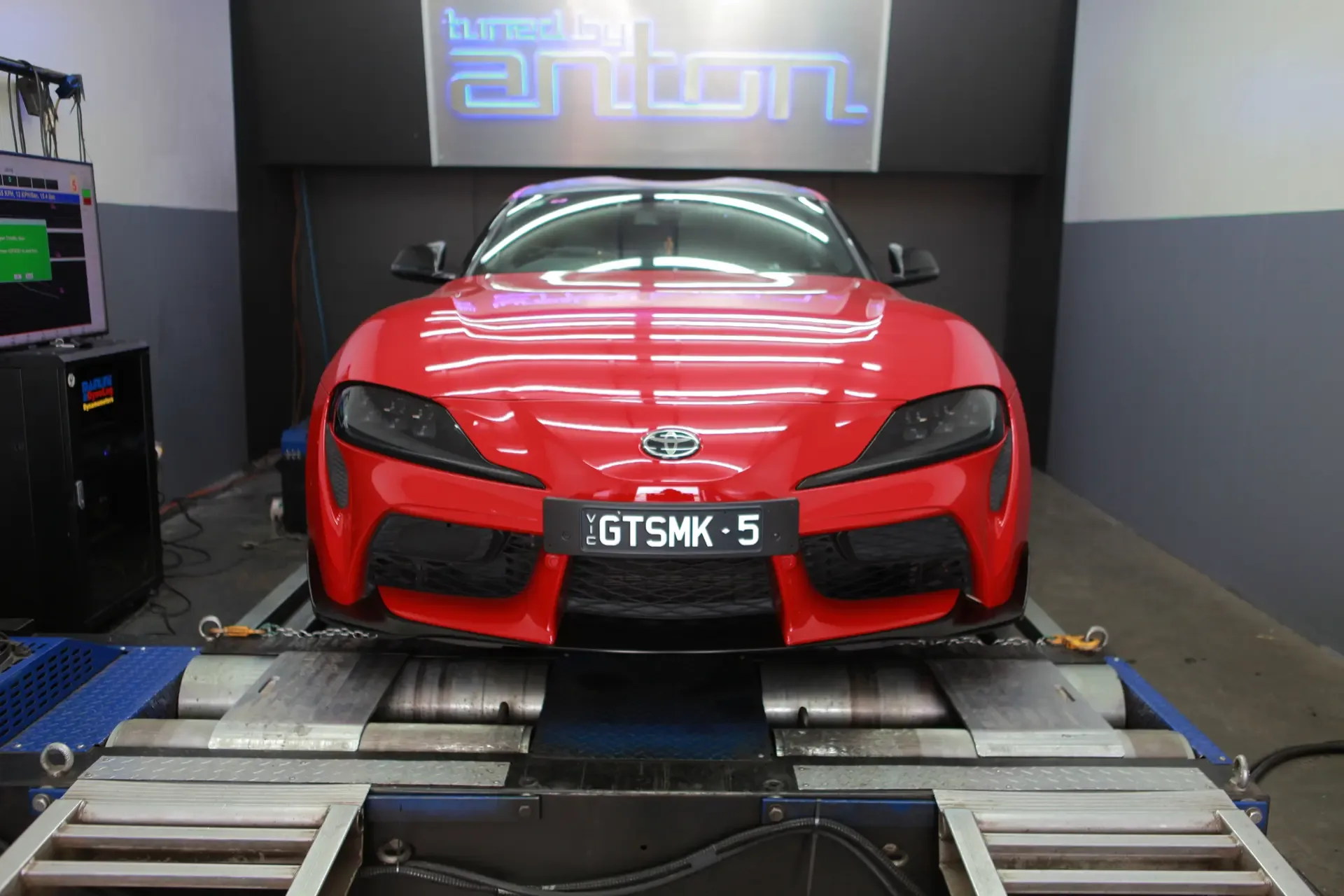

[ On the dyno ]

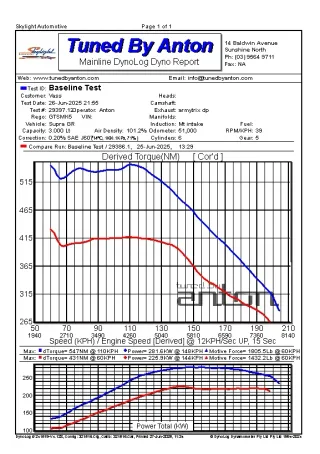

[ Dyno screen ]
Vehicle details
Spec sheet.
Notes from the tuner
What we did.
This Supra GR received an Armytrix downpipe + MST cold air intake, custom ECU calibration, and XHP transmission tuning.
Now making:• 547Nm torque (up from 431Nm)• 281.6kW at the wheels
Noticeable gains in torque, improved drivability, and faster, more refined shifts.
Anton Krstic · Lead tuner · Bay 02
This Toyota Supra MK5 A90 was tuned on our Mainline AWD dyno. All results here come from dyno tuning in Melbourne at our Epping workshop.
Other Toyota Supra MK5 A90 results.
Stage 2 tune
Power & torque · stock vs tuned.
Power
Stock
225kW
→
Tuned
281kW
+56 kW (75 hp) at the hubs+25%
Torque
Stock
431Nm
→
Tuned
547Nm
+116 Nm (86 lb·ft) at the hubs+27%
⌁Dyno graph · Pull recorded on the Mainline AWD
Hardware
Modifications.
2 categories · Stage 2 build
- ·Intake
- ·Down Pipe
Calibration
ECU improvements.
Factory
- ·Improved Power
- ·Improved Torque
- ·Exhaust Burbles/Pops
- ·Increased Clutch Line Pressure
- ·Optimized Shifts
- ·Increased Clutch Torque Limits
- ·Improved Converter Lock Up
