Stage 3Factory
2011 Subaru WRX Tune
Tuned · 14 Aug 25
Bay 02 · Mainline AWD
Bay 02 · Mainline AWD

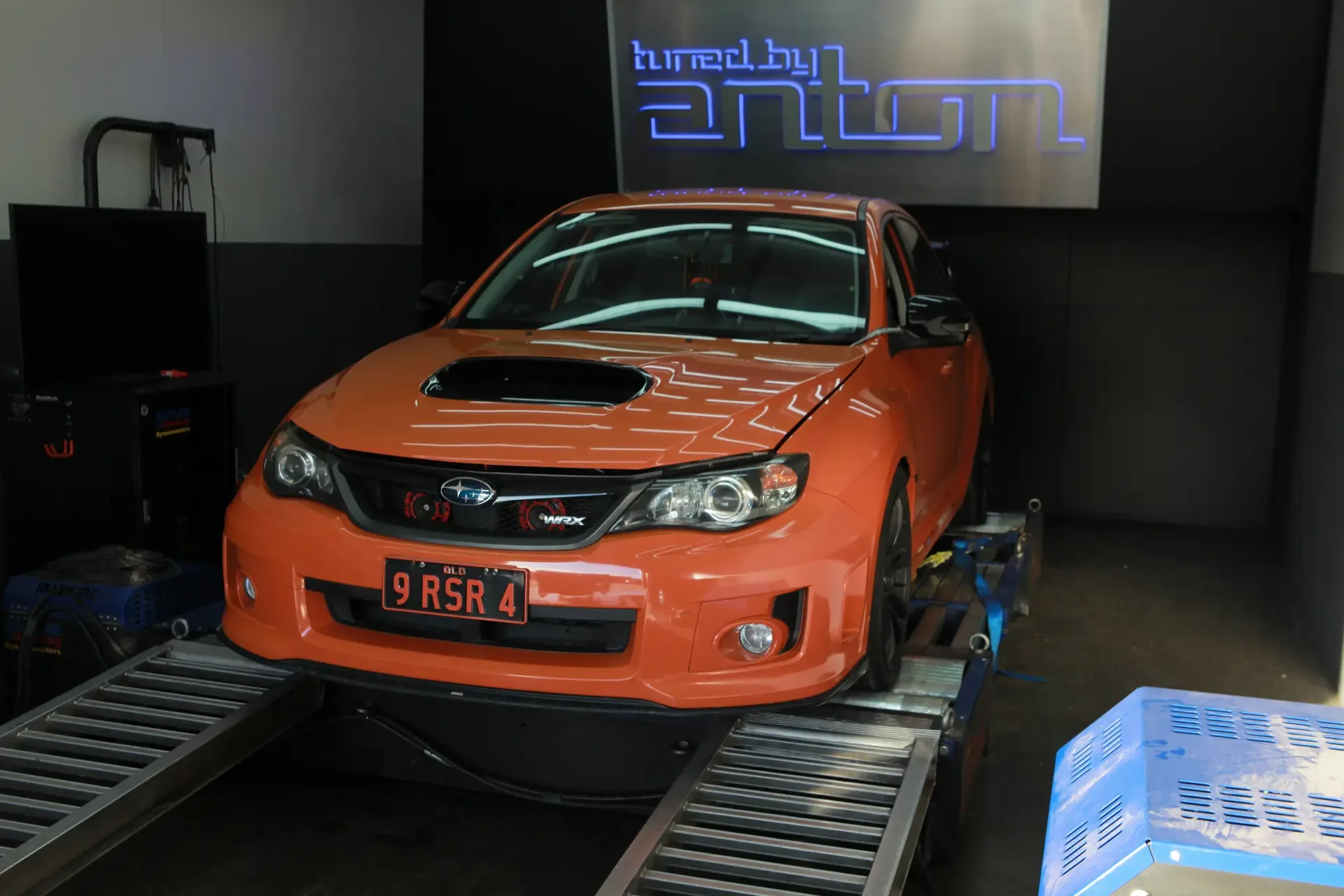

[ On the dyno ]
[ Engine bay ]
EJ25
[ Dyno screen ]
— Vehicle details
Spec sheet.
ModelWRX
SeriesGV
Yearkveowzo10sw6tcvrsb6sfyhw
EngineEJ25
Fuel98 RON
ECUFactory
Drivetrain4WD
— Notes from the tuner
What we did.
2011 Subaru WRX – 15psi Mild Boost Tune
Fitted with a GCG 3076 turbo, Xpurt/Bosch 1000cc injectors, PSR up-pipe and headers, Xforce 3in turboback exhaust, Process West Verticooler, and Process West through guard cold air intake.
Running 15psi on a mild boost setup with custom tuning this WRX is producing 179kW and 308Nm, with crisp throttle response and strong mid-range pull.
Anton Krstic · Lead tuner · Bay 02
— Stage 3 tune
Power & torque · stock vs tuned.
— Power
Stock
137kW
→
Tuned
179kW
+42 kW (56 hp) at the hubs+31%
— Torque
Stock
244Nm
→
Tuned
308Nm
+64 Nm (47 lb·ft) at the hubs+26%

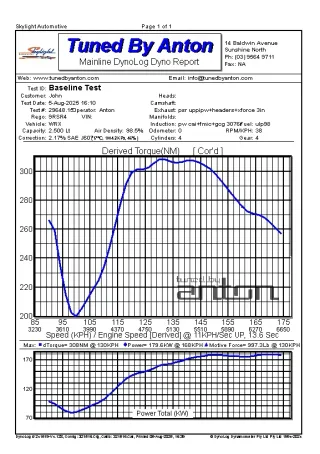

⌁Dyno graph · Pull recorded on the Mainline AWD
— Hardware
Modifications.
5 categories · Stage 3 build
- ·Intake
- ·Exhaust
- ·Down Pipe
- ·Intercooler
- ·Turbocharger
— Calibration
ECU improvements.
Factory
- ·Improved Fuel Efficiency
- ·Improved Power
- ·Improved Torque
