Ford Falcon FG XR6T Stage 2

Tuned · 11 Mar 23
Bay 02 · Mainline AWD

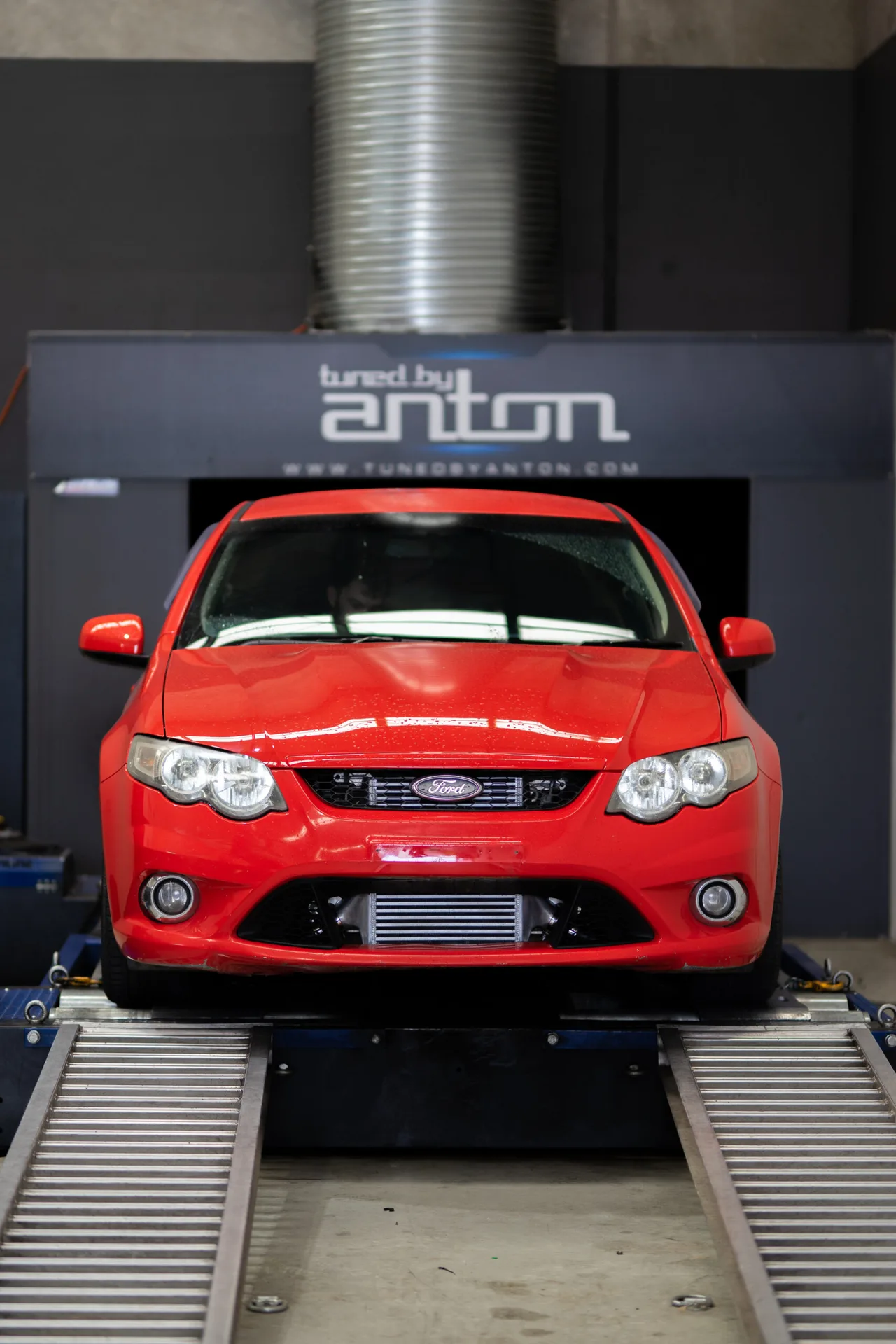

[ On the dyno ] Ford Falcon FG XR6T Stage 2 — On the dyno

[ Engine bay ]

BARRA

[ Dyno screen ] Ford Falcon FG XR6T Stage 2 — Dyno screen

— Vehicle details

Spec sheet.

SeriesFG

Yearexx7bl0v57do6sdntbctqs4r

EngineBARRA

FuelE85

ECUFactory

Drivetrain2WD

— Notes from the tuner

What we did.

Emmanuel's FG XR6 in for stage 2 tuning. Modifications include full Mspec fmic, Xforce 2.5in exhaust, ARPheadstuds & beefed up fuel pump + injectors applicable for e85. Typically these turbo's run out about 280kw, we were able to produce 299kw consistently @ 1.3bar.

#barra #ford #fg #arp #antz #xforce #mspec #pcmtec #zammitautomotive #tunedbyanton

Anton Krstic · Lead tuner · Bay 02

— Stage 2 tune

Power & torque · stock vs tuned.

Hubs · SAE J1349 · Median of 3 pulls

— Power

Stock

226kW

→

Tuned

299kW

+73 kW (98 hp) at the hubs+32%

— Torque

Stock

508Nm

→

Tuned

617Nm

+109 Nm (80 lb·ft) at the hubs+21%

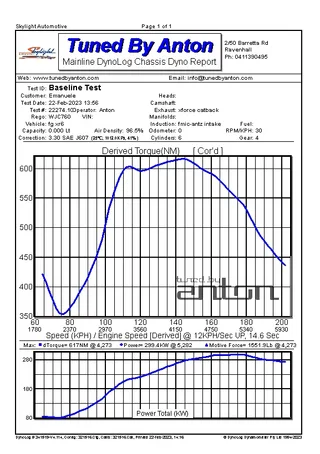

⌁Dyno graph · Pull recorded on the Mainline AWD

Download ↓

— Hardware

Modifications.

6 categories · Stage 2 build

·Intake
·Exhaust
·Down Pipe
·Intercooler
·Fuel System Upgrade
·Ignition Upgrade

— Calibration

ECU improvements.

Factory

·Improved Power
·Improved Torque
·Increased Clutch Line Pressure
·Optimized Shift Schedule
·Optimized Shifts
·Increased Clutch Torque Limits
·Improved Converter Lock Up
·Imrpoved Gearshift Torque Reduction
