Ford FG Falcon Stage 1
Tuned · 17 Nov 24
Bay 02 · Mainline AWD
Bay 02 · Mainline AWD
[ On the dyno ]
[ Dyno screen ]
Notes from the tuner
What we did.
Big day for this Ford XR6 FG Falcon
We got stuck into some serious upgrades:
Installed a PSR intercooler for cooler, denser powerSwapped out the turbine housing for better flowFitted new injectors & a fuel pump to handle the extra juiceFinished off with custom tuning magic
The results, a strong 270kW at just 15psi, and it’s still rocking the stock turbocharger!
#fg #barra #fordtuning #tunedbyanton
Anton Krstic · Lead tuner · Bay 02

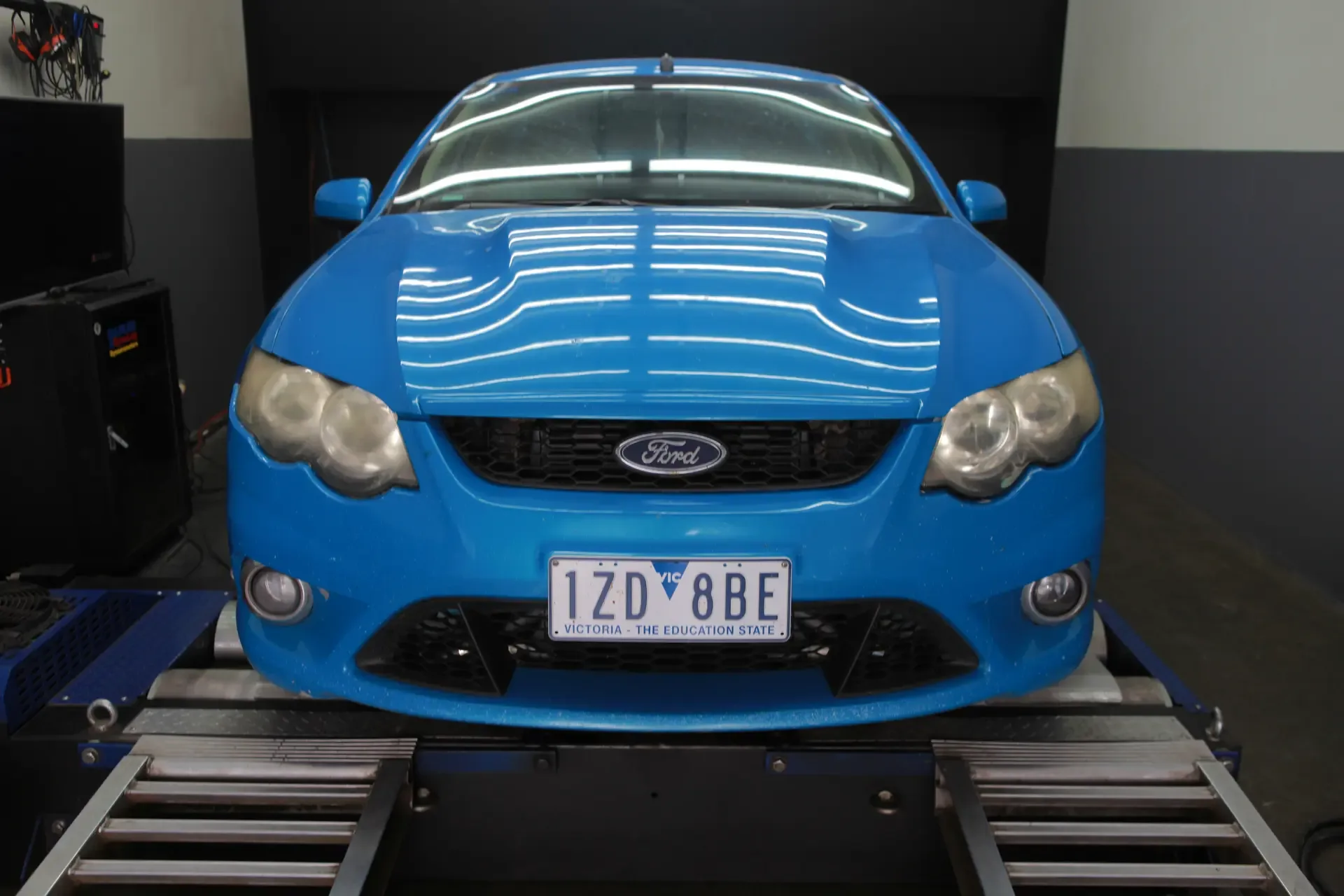

This Ford Falcon FG was tuned on our Mainline AWD dyno. All results here come from dyno tuning in Melbourne at our Epping workshop.
Other Ford Falcon FG results.
Stage 1 tune
Power & torque · stock vs tuned.
Power
Stock
0kW
→
Tuned
270kW
+270 kW (362 hp) at the hubs
Torque
Stock
0Nm
→
Tuned
483Nm
+483 Nm (356 lb·ft) at the hubs

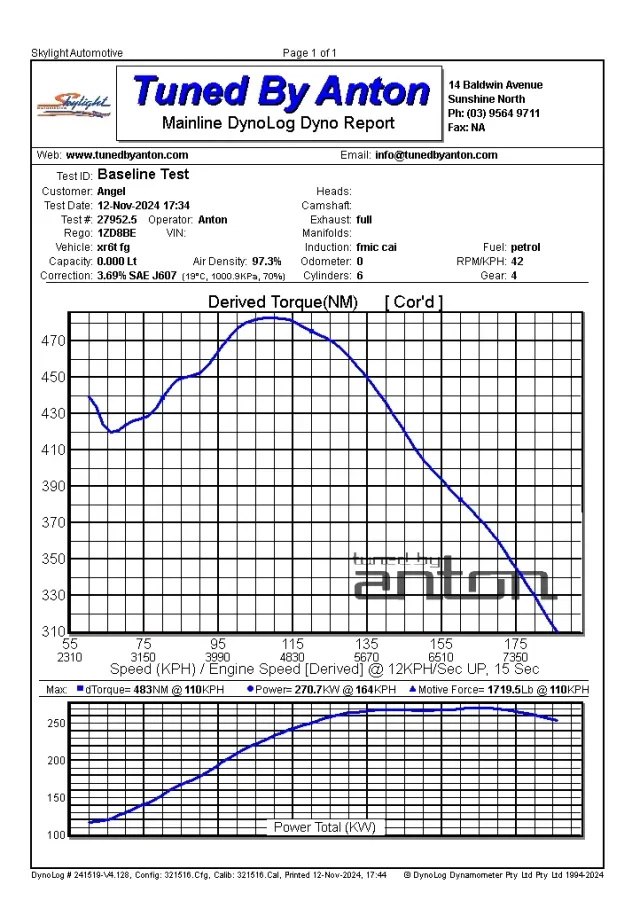

⌁Dyno graph · Pull recorded on the Mainline AWD
Hardware
Modifications.
5 categories · Stage 1 build
- ·Intake
- ·Exhaust
- ·Down Pipe
- ·Intercooler
- ·Fuel System Upgrade
Calibration
ECU improvements.
Factory
- ·Improved Power
- ·Improved Torque
