Stage 2Factory

Ford FG XR50

Tuned · 26 Nov 23
Bay 02 · Mainline AWD

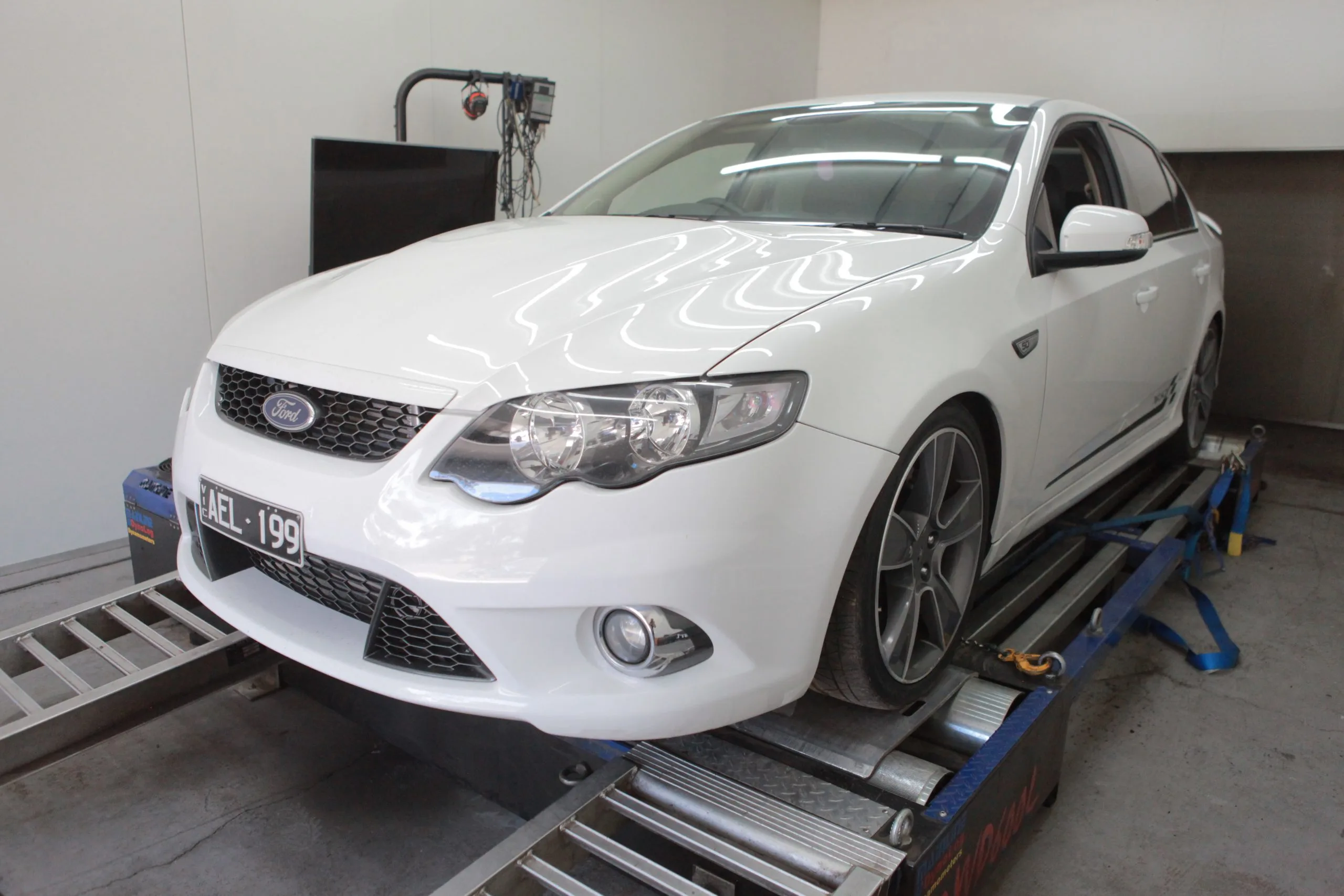

[ On the dyno ]Ford FG XR50: On the dyno
[ Dyno screen ]Ford FG XR50: Dyno screen
Vehicle details

Spec sheet.

MakeFord
ModelFalcon
SeriesFG
EngineBARRA
Fuel98 RON
ECUFactory
Drivetrain2WD
Notes from the tuner

What we did.

The FG XR50 equipped with a GTX 3582 turbocharger produces 333 kW at 14 pounds of boost and produces 361 kW at 20 pounds of boost.

#barra #pcmtec #tunedbyanton

Anton Krstic · Lead tuner · Bay 02

This Ford Falcon FG was tuned on our Mainline AWD dyno. All results here come from dyno tuning in Melbourne at our Epping workshop.

More on this platform

Other Ford Falcon FG results.

Ford FG Falcon Stage 1Stage 1270 kW

Ford FG Falcon Stage 1

View result →
Ford EA Falcon TurboStage 1189 kW

Ford EA Falcon Turbo

View result →
Ford FG Falcon Phase 2 TuneStage 2295 kW

Ford FG Falcon Phase 2 Tune

View result →
Stage 2 tune

Power & torque · stock vs tuned.

Hubs · SAE J1349 · Median of 3 pulls
Power
Stock
226kW
→
Tuned
361kW
+135 kW (181 hp) at the hubs+60%
Torque
Stock
506Nm
→
Tuned
684Nm
+178 Nm (131 lb·ft) at the hubs+35%

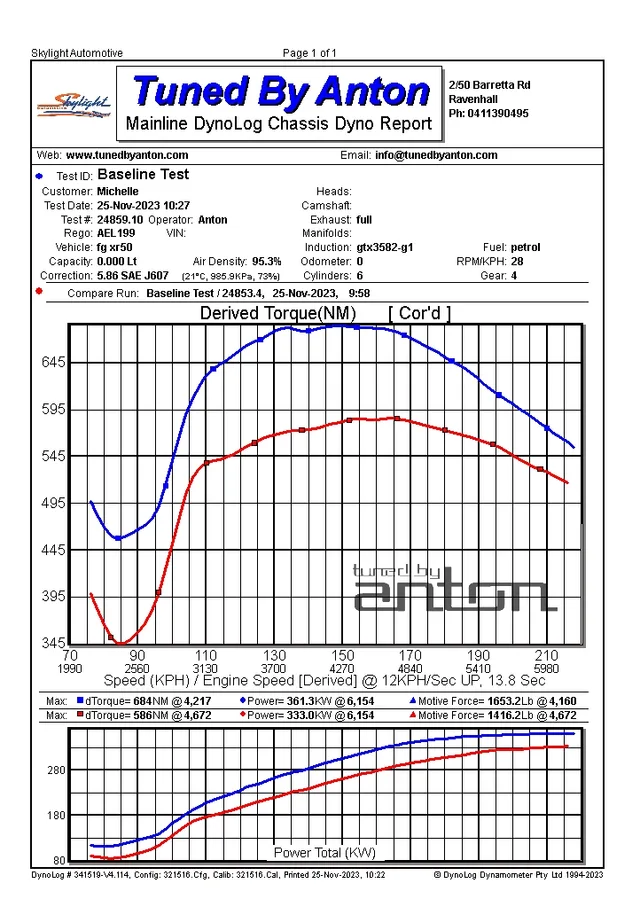

⌁Dyno graph · Pull recorded on the Mainline AWD
Download ↓
Hardware

Modifications.

7 categories · Stage 2 build
  • ·Intake
  • ·Exhaust
  • ·Down Pipe
  • ·Intercooler
  • ·Fuel System Upgrade
  • ·Engine Components
  • ·Turbocharger
Calibration

ECU improvements.

Factory
  • ·Improved Fuel Efficiency
  • ·Improved Power
  • ·Improved Torque
  • ·Increased Clutch Line Pressure
  • ·Optimized Shifts
  • ·Increased Clutch Torque Limits
